Pop Up 3 Gang USB & LED, Matt Chrome

Flush Fitting - White Button

 (8 Customer Reviews

 Matt Chrome, White Button SKU: F-03012-1003L-078-297   Special Order **Min order qty is 1
** Typical ‘Special Order’ lead time 5-10 days, provided no stock issues at factory
Enter number of individual items/kits required in the 'Add to basket' box below
Web Only QuantitiesWeb or Telephone
Individual item(s) Pack(s) of 2 Pack(s) of 3 Pack(s) of 4 Pack(s) of 5
£164.63 £311.94 £441.92 £554.56 £649.88
£197.56 incl VAT (£155.971 each) (£147.306 each) (£138.640 each) (£129.975 each)

QTY

Enter total no. of individual items required (or kits if applicable) - not packs



VIEW DRAWING  Pop Up Socket Buying Guide & Comparison Chart
Box15

Did you know...
Our sister co. Box15 has these on display in their showroom, ex-demo units available Click here...

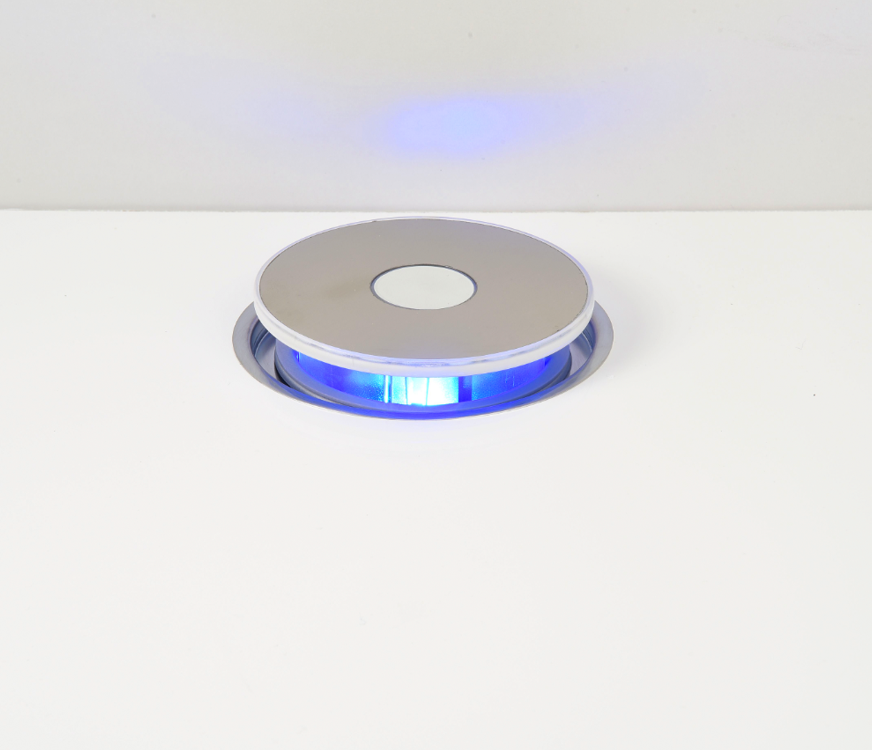

100mm Diameter Pop Up Power Unit with 3x UK Power Sockets & no Data Ports. This particular unit has the added feature of USB and LED. Just peel back the protective film and drop it in a predrilled hole ready to go. Supplied with a standard 2 metre lead and fitted plug for any UK Standard 3 pin socket - just like an extension socket!

The Matt Chrome Top Disc compliments the Silver surround and you just depress the button to 'pop-up' the unit about 25-30mm - and then draw it into position. Adds that real wow factor to any kitchen, especially when used in conjunction with the flush fit adaptor ring, now supplied as standard!

This unit is predominantly manufactured from a quality Zamak (Metal) material and will enhance any kitchen, workspace or prestigious development, where power or data distribution is required. As with all our concealed sockets, we recommend you get a tradesperson to install this unit.

Useful Technical Data / All Pop Up Sockets now rated to to IP54

Approx. Column Height when fully extended, from top or worktop - 240mm

Overall Outside Diameter of Top Plate with Depress Button - 120mm

Suggested Hole Size Required - See below but use a test template if in doubt with flush fit adaptor ring (supplied) : 124mm
without flush fit adaptor ring : 100mm -0/+1mm

Thickness of Top when used without a 'Flush Fit' Adaptor - 7mm

Overall Diameter of Shoulder Washer that clamps under the worktop - 152mm
(this can be reduced down to as much as 110mm, if trimmed)

Approx. Depth required when retracted fully - 310mm
(the depth required is measured from the TOP of the worktop & includes space for the wires/cables to exit the bottom of the unit, so worktop thickness can be taken off this figure.)

LED Spec.
- 1 HIGH POWER LED BLUE: 3,6V, 1W, 350 mA, 18~22lm, estimated life: 100.000 h (approx. 10 years 24h/24h)

Submit a review  Reviews are shown below. Why not submit your own review?

Submitted by Mrs Amanda Hutchinson (18/11/2016)
as advertised
Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score  4.5 / 5
Submitted by Mr Peter Tyson (3/09/2015)
Hole cutter to expensive. Sockets are a non standard size when fitted flush, and you have to pay a further 149 to get the cutter delivered. Not a happy customer.


Response from BPF Websales
Apologies that you had to buy a holesaw for these pop up sockets, as I appreciate it's a non-standard size but in fairness, we tend to find the vast majority of customers do not require these because the worktop people often template on site and already have the equipment to cut these holes - or the holes are simply CNC'd in the worktop at the factory, prior to installation on site. On the odd occasion where we know a carpenter has fitted the sockets, they've used a variable cutter which doesn't require this specific size holesaw, as you quite rightly point out it's a non-standard.

In fact, we have to order them in specially from Italy from where the sockets are sourced from and although we've sold thousands of sockets - we've probably only ever sold 3 or 4 of the holesaws over all this time, which to be fair is the only reason we offer them, for that very rare occasion they're requested from us. Saying that though, I take your point on board and for customers that need to cut the holes themselves, we'll look at utilising a couple of saws from stock, to make them available to hire, so customers can use them to install the sockets and then return them. I can assure you that margin on these holesaws is minimum and it's only a product we offer to satisfy a very small demand, as and when required.

I can see from your review scores that you liked the product which is great news, so apologies the issue with cutting the holes has soured the experience. We will look to implement a hire system asap to make life easier for customers but if it helps and the holesaw you've bought, is still useable - then you're welcome to return it to us and we'll see if we can use it as one of the saws we're planning to hire out. I can't promise you a full refund on it, but provided is't still able to cut holes, I'm sure we can offer you a partial refund if that's of any interest?

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score  5.0 / 5
Submitted by Mr Kristan Groom (24/03/2015)
Thank you for a fast and easy service
Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score  5.0 / 5
Submitted by Mr Steve Rowley (9/03/2015)
After searching high and low over the internet for a quality FLUSH pop up power, I am very impressed with this product. The pop up mechanism feels solid, the materials are of high quality and the LED light is a nice finishing touch.

I only have two tiny little niggles with the item. The first is that I feel the item is a little over priced. However there are no comparable alternatives on the market so there is little choice on this matter. The second is that as others have mentioned, it's such a shame that the manufacturer has decided to use a white/cream material for the button in the centre of the pop up. They should have stuck with the black button as per the other pop ups in their range (with no LED)

That said, a quality item that I would recommend to anyone who wanted something long lasting and complimentary to their granite kitchen tops.


Response from BPF Websales
Thank you for your feedback which is very much appreciated. Just responding to the couple of points you raised, in that firstly we do recognise that this Milan range is our premium range and as such is the more expensive of the products we offer, particularly with the added features of USB and LED, however we do offer two other ranges which are less expensive, although you would lose the flush fitting feature which we realise is of considerable benefit to the aesthetics. There are quantity breaks though with Milan, if more than 1 unit is required and quantities of 5 units or more, may well also qualify for wholesale trade rates.

Secondly, I do appreciate what you've said about the white button and we have had similar comments before to be fair but the factory were very keen to differentiate the new LED & USB range from the original Milan range, and as such decided to really focus on the LED aspect, and the thought process was the white button worked better with the LED lighting and added that bit of emphasis that they felt would benefit the overall effect. It does look great on light colour work surfaces, as we have one in our subsiduary company's showroom and it works really well by picking out the fleck white coloured corian top.

However, for those customers with darker worktops, we have only just today added 2 new all black tops (with black buttons) to the LED range. We're still waiting for our photographers to shoot them professionally, but we have uploaded some images on the website now if you wanted to take a look.

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score  4.5 / 5
Submitted by Jane Wickens (19/12/2014)
Nice item but quite expensive
Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score  4.3 / 5
Submitted by Adele (26/05/2014)
Very quick delivery. Happy with product.
Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score  4.5 / 5
Submitted by F.M (10/02/2014)
Great product!

Definetly a talking point in the kitchen. Placed 3 in absolute black granite worktops, looks stunning!

If I'm being picky, the cream/white centre pop up buttons are a bit of a let down, wanted it in black. Only the non LED versions come in black.

Highly recommend nonetheless. Finishes off the perfect kitchen!
Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score  4.8 / 5
Submitted by Kate Robinson (18/03/2013)
A really great product, looks very funky on the island in the kitchen, but would use in the Children's bedroom too. The LED light is a great and everyone wants to know what it is.. Would highly recommend.
Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score  5.0 / 5

Ask a question Frequently asked questions about this item are shown below. Do you have a question?

Q: I am having a template taken for my kitchen worktops this afternoon so if you can reply to my query asap I would really appreciate it. I am interested in purchasing the above 3 gang pop up. Our kitchen granite is a 6cm wrap, which is 3cm of granite on top of 6cm of timber. The technical info says not suitable for a counter more than 55mm thick. Can you tell me what the issue is in fitting it to a thicker counter.

A: The reason we stipulate the maximum thickness of worktop being 55mm is because the unit drops through the hole made and then it's secured or clamped on the underside, by means of a threaded shoulder washer/nut. There is a plastic collar on the moving part of the socket and the thread on this is only a certain depth and you need the shoulder washer to bite on the thread to give you the compression you need, to ensure the unit can't move and is stable in use. I've just screwed up the shoulder washer on a demo unit and the gap when the thread has bitten is probably nearer 60mm, but that is really the only reason there is a maximum recommended depth to the worktop. So if you could find an alternative way of securing the unit and can do away with the shoulder washer then it doesn't really matter what thickness your worktop is! Without that shoulder washer in use, it really is only gravity that keeps the unit in place so it would rock when you start to use it, so it would need bracing or securing by some other method. If you need a close up picture of the shoulder washer then let me know and I can email it to you or alternatively you can purchase a unit and assess it on site. Obviously if it doesn't prove suitable and you decide you can't use it, then as long as it's in a boxed and saleable condition, then it can be returned for a refund. Hope that helps! BPF WebSales

Q: Hi just wanted to know if this model comes with 2 usb ports please

A: I've just physically checked and yes, it looks like all the original single USB port stock has now been sold, so this particular unit is now supplied as standard with the new 2-USB port configuration.
