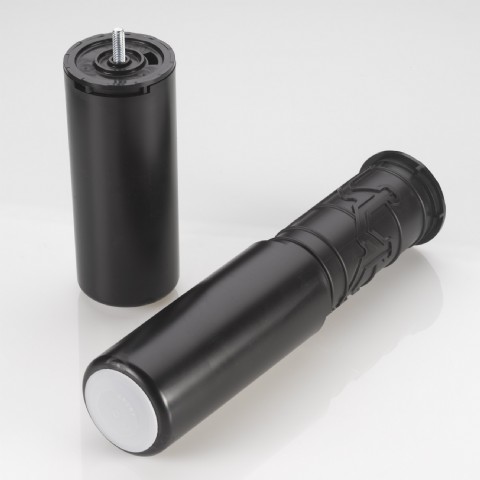

172.5-272.5mm Adjustable Height M8 Easy Glide Furniture Glide

Initially designed as bed legs, these 71.2mm diameter 'intelligent' glides are an ingeniuous design that allow you an incremental increase in height due to a staggered lift system, achieving 172.5 to 272.5mm adjustment with swift compression via one movement. Popular within the bedding & divan sector as legs, feet, furniture sliders and levellers, these products can also be used on sofas, couches, settees, divans, tables, sideboards, pedestals, and general wooden furniture frames.

Super strong with a load rating of 600kg per leg, which equates to 2.4 tonne across four legs, the leg or glide is designed so that you can adjust the height either before or after installation with 5 predetermined levels. All options are interchangeable, so each foot is available with different thread/fixing options and special colours can be run, subject to minimum order requirements, so please ask.

Product Features:

• Load rating: 600kg per leg
• Predetermind fixed heights: 172.5, 197.5, 222.5, 247.5 & 272.5mm
• Glide diameter: Ø71.2mm
• Thread length: 23.3mm long
• Thread diameter: metric M8 x 1.25m pitch
• Compatible with our threaded inserts for wood and threaded inserts for tube
• Other options: Economical, standard, easi-glide or jack-up

Typical Applications:

• Legs for beds & divans
• Glides for sofas & upholstery
• Feet for cabinets & furniture
• Levelling of furniture
• Retro fitting for altering furniture height
• Floor protection & noise reduction
• Mobility of furniture

To see a demonstration of the product, click the video tab to see the system in action!

Our glides provide durability and smooth movement across a wide variety of surfaces but if you find this isn't the right component for you, then you are likely to find what you're looking for from within our Complete Range of Glides, which we categorise as Push In Furniture Glides, Screw In Furniture Glides or Nail In Furniture Glides.

You'll need a socket or insert with an M8 female thread to receive the thread on this glide, so explore our T Nut and D Nut Insert options or if you're intending using these with tube or box section, you can also consider our range of Threaded Tube Inserts.

For complete installation, see the bottom of the page for compatible fasteners and fixings. If the exact size or type isn’t listed, our team is available via live chat, email, or phone to assist.
