90° Fuerte 5 Piece Connection Kit, 74mm Dowel

"FUERTE" is a heavy duty connector particularly suitable for strong and secure and assembly of beds, table frames, panels and cabinets. The housing with it is steel worm gear and hardened steel dowel ensures a permanent grip and continual tension.

You can buy this connection system either as individual components or as is in this case, in kit form. This particular kit will give you the 3 Core Components required for a 90 Degree Joint, comprising :

1 x Fuerte Body/Housing (F-04072-1103610-600)

1 x Screw-In Bushing (F-04072-1210290-600)

1 x Hex Allen Key (F-04072-1103650-600)

1 x M8x74mm (F-04072-1103621-600)

1 x 6.1mm Dia Cover Cap (F-05010-006039)

If you prefer to make up your own kits, if for instance you already have a supply of suitable M8 Bushings or M8 Male Dowels, then you've got the option of buying all these components separately.

We show standard colours & finishes where possible but these are constantly changing so if you require a colour not listed in the drop-down, speak to us as we may well have added it since.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

• Assembly Diagram
• Assembly Examples
• Housing Drawing / Depth Required

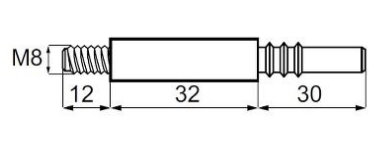

• Dowel Drawing
