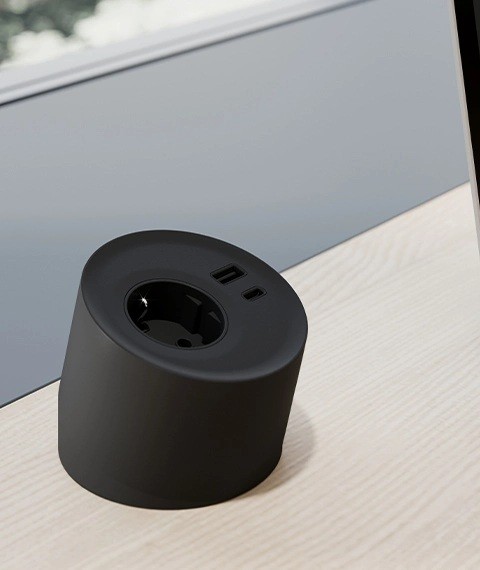

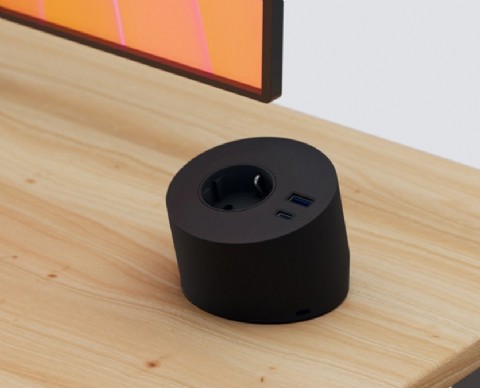

V-Spot Single Socket with USB A+C | Clamp On

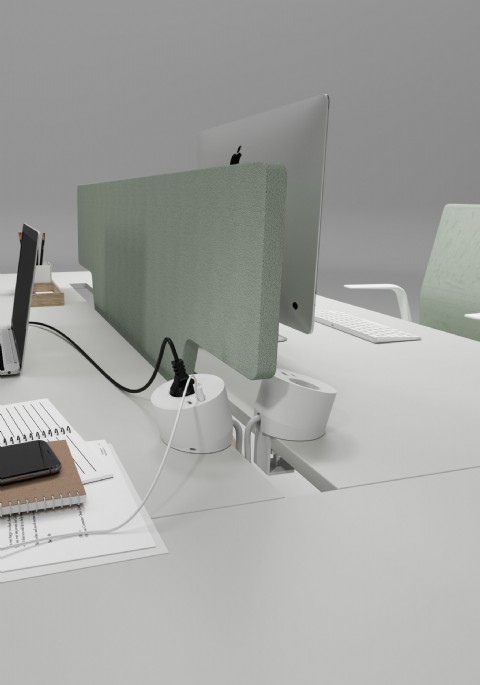

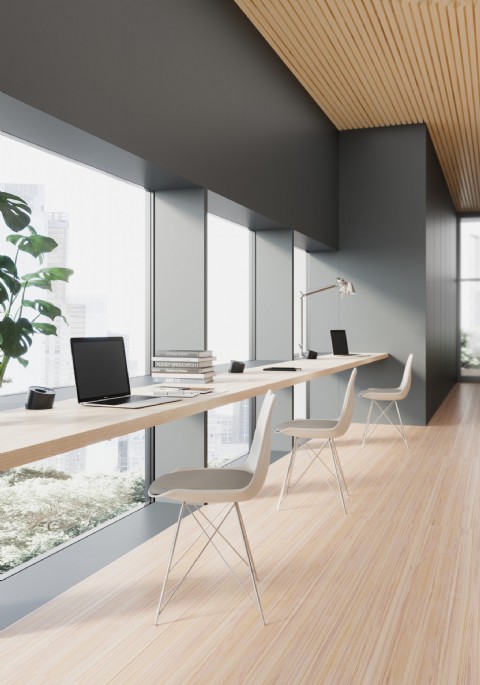

V-Spot offers a neat and compact single power solution with USB and with a depth of just 40mm, is perfect for offices, retail environments and exhibitions.  It comes with the option of a recessed version which fits into a 80mm round hole or you can go for a desk clamp version, which would mean no cutting as it desk clamps.

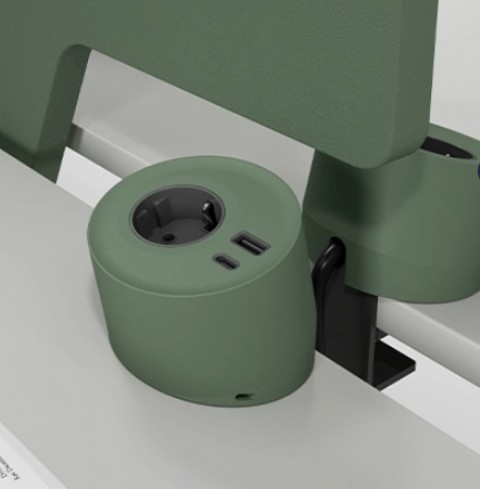

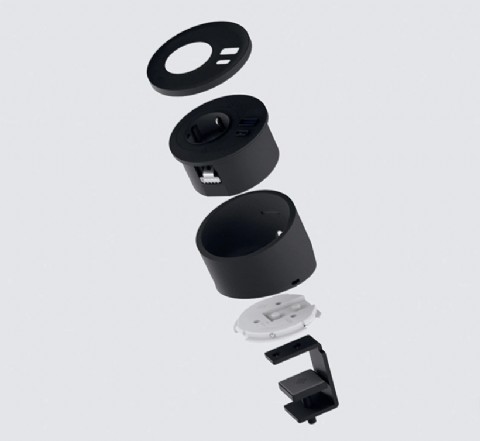

The recessed version is designed to install from above, thanks to its 80 mm diameter hole width and its 40 mm depth and we can assist with a hole saw for this size cut out if needed?  In the clamp-on version, the multi-socket block can be disassembled and quickly replaced with a new composition of sockets, or to reduce the used space on folding tables when they are being stored.

Technical information / Key features:

• Rated voltage: 250 V ac.50 Hz
• Rated current: 16 A
• Max load power: 3500W
• USB A+C input: 110 - 350 Vac 50/60 Hz
• USB C 5v output: 5v to 12v P.Max 18W
• USB A 5v output: 5v to 12v P.Max 18W
• USB A+C output: 5v 3A (1.5+1.5) P.Max 15W standard charging
• Fits Standard Ø80mm Diameter Hole
• IP20 Rated
• Option of 2 Metre hard mains lead, or 500mm GST Tail and separate 2 Metre mains lead
• Operating Environment: Indoor

Important information

1. All electrical cables should be fitted by a qualified electrician.
2. Do not attach power and/or data cables before fitting.
3. Disconnect from mains power before removing / replacing power module.
4. Do not dismantle or remodel the power module.

*Please note: The images are for display purposes only. Configurations vary.

We show standard colours and finishes where possible, but if you require a colour or feature that is not listed, get in touch with the sales team today as custom units may be available on request, subject to minimum order quantities and longer lead times.
