VOILA CHAIR REVERSE Pull Out Table Frame Extension

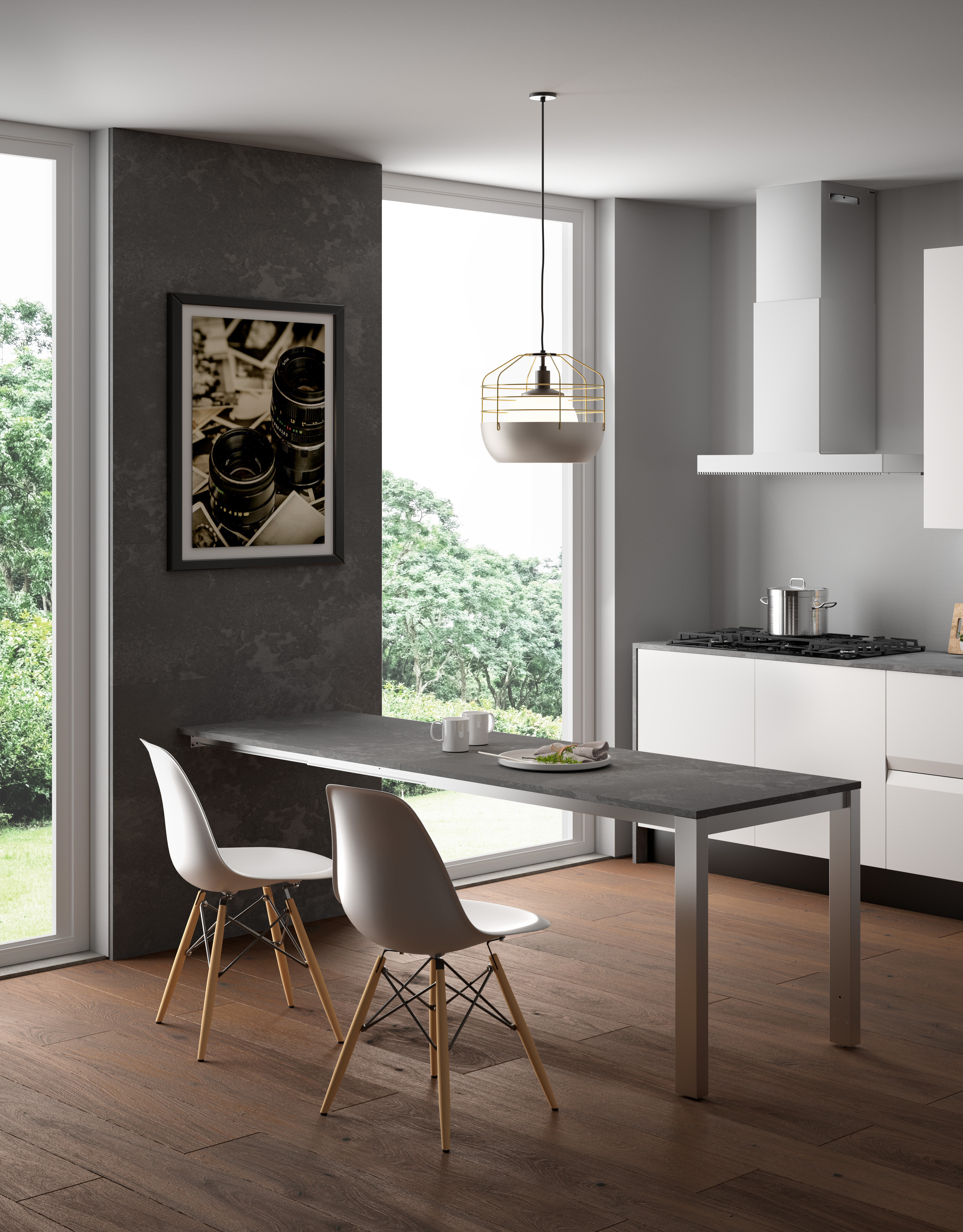

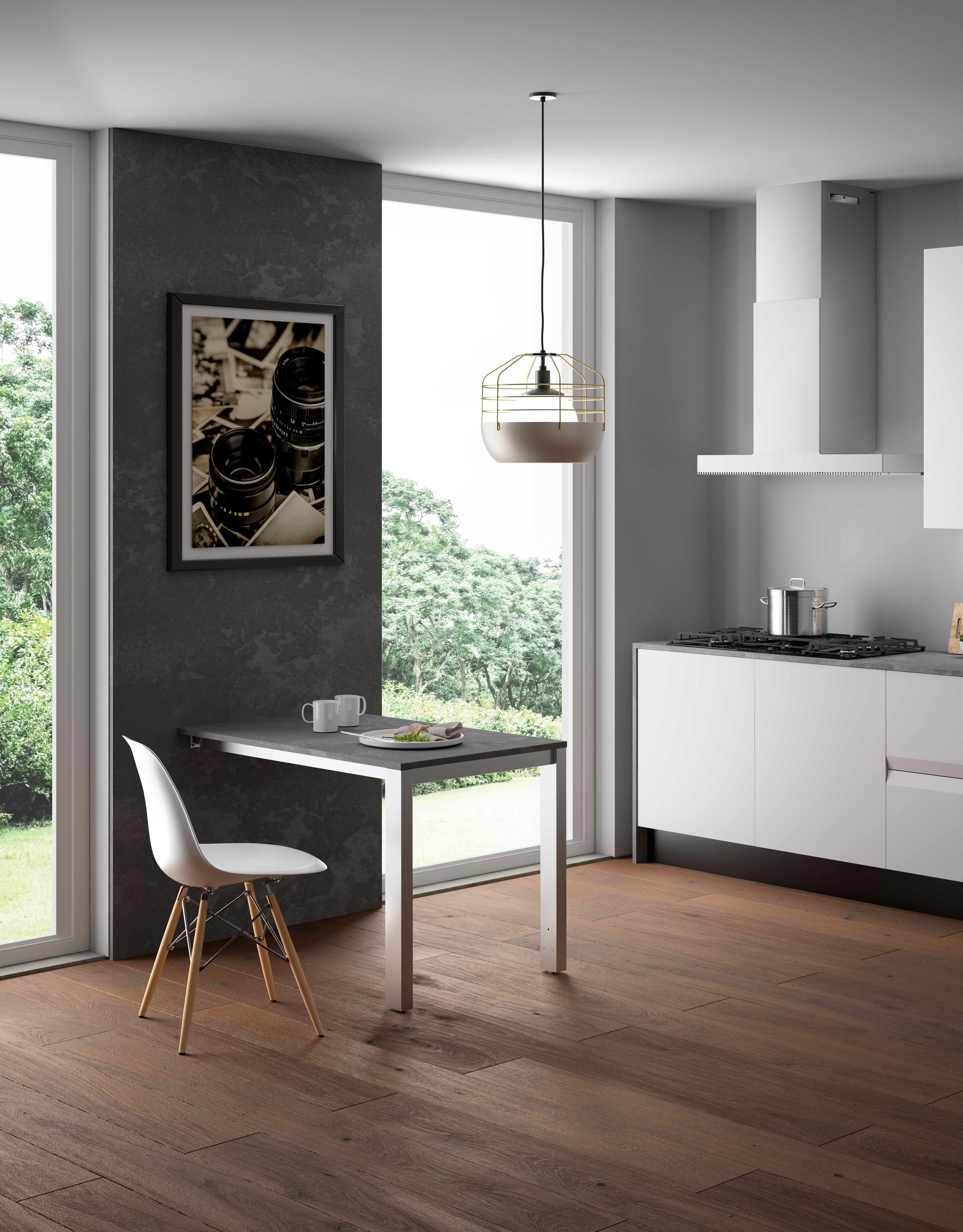

The VOILA CHAIR REVERSE pull-out table frame extension is an innovative, space-saving solution designed to be installed against a vertical surface such as a wall, kitchen island, or kitchen unit. Once fitted, it functions as a compact breakfast bar, coffee table, or worktop extension, then effortlessly transforms into a full-length kitchen or dining table when extended.

Unlike the standard VOILA CHAIR system, the REVERSE configuration mounts the tabletop to the front of the frame, allowing the surface to pull out and fold back towards the wall or island. This unique motion enables a significantly larger extension, making it ideal for multi-user dining in compact spaces.

With extension options of 1100mm or 1300mm, VOILA CHAIR REVERSE creates an impressive 2200mm or 2600mm total table length, offering exceptional flexibility while maintaining a discreet footprint when folded away.

Supplied as a frame-only system, everything required for installation is included; simply add your chosen tabletop to complete the setup. Perfect for small kitchens, kitchenettes, utility rooms, mobile homes, caravans, and other space-restricted environments.

Minimum Installation Requirements

• Width options: 700 mm, 800 mm or 900 mm
• Extension lengths: 1100 mm or 1300 mm
• Total table length when extended:
  • 2200 mm (1100 mm extension)
  • 2600 mm (1300 mm extension)

Technical Overview

• Load capacity: Up to 100 kg (evenly distributed)
• Frame material: Aluminium
• Frame finish: Natural anodised aluminium (Brilliant finish available on request)
• Operation: Manual pull-out and fold-back mechanism
• Locking system: Integrated – secures the table when extended
• Sizes: Wide range available
• Packaging: Individually boxed and compact

* Wooden parts and hinges for connecting the tabletop are not included.
(Full dimensions, required top sizes, and contents are detailed in the Technical Data tab.)

Key Features

• Reverse Folding Mechanism: Top folds back towards the wall or island.
• Extra-Long Extension: Creates tables up to 2600 mm long.
• Wall or Island Mounted: Ideal for tight or multi-use spaces.
• High Load Rating: Supports up to 100 kg evenly distributed.
• Frame-Only System: Add your own tabletop to match your interior.
• Durable Aluminium Construction: Strong, corrosion-resistant and smooth in use.
• Secure Locking System: Keeps the table stable when fully extended.

Installation Guidance

Professional installation by a carpenter or kitchen fitter is strongly recommended. Installers should review the installation overview video before fitting. Printed instructions are supplied, with additional documentation available in the Technical Data tab.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

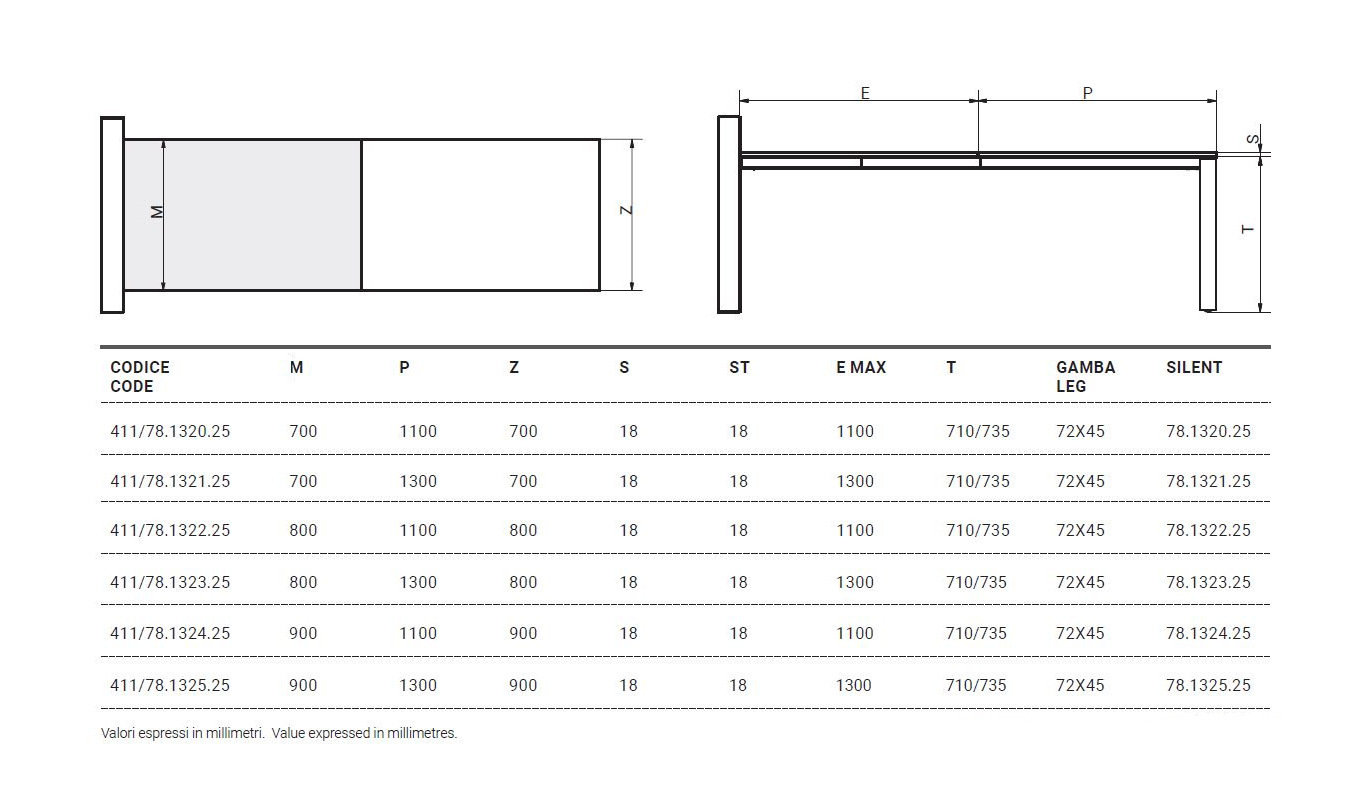

• Dimensional Drawing
• Fitting Instructions
