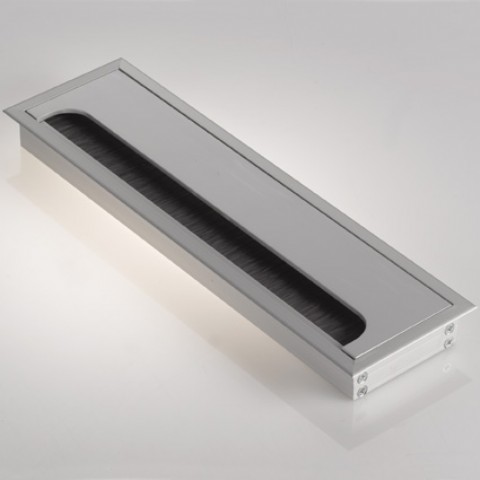

276x80mm Desk Flap & Table Access Plate Grommet

Aluminium Access Plates and Desk Grommet Flaps provide you with a clean, professional finish in office desks, meeting tables and counter tops and come in a range of sizes, profiles and finishes, perfect for the modern working environment.

We list this range by the Top Profile Dimensions (as opposed to the approximate cut out hole size) and this particular model has a dimension of 276x80mm rectangular, with a smooth close plate or flap, designed to neatly conceal cable access openings and bringing power and data networks direcly to you working space.

Ideal for office desks, boardroom tables, educational furniture, bespoke joinery, exhibition and retail applications, this desk cable cover plate simply drops into a routed 263x67mm rectangular cut-out, providing a tidy and unobtrusive solution, allowing end users or installers to access electrical modules.

We have a range of associated products to compliment this item including Under Desk Cable Trays, Wire Management Snakes and Trunking and there are also variations of this item, which allow you to add inserts, to match your wooden top finish, check out the links below for details.

Technical Specifications

• Overall Dimensions: 276 x 80 x 25mm
• Recommended Cut-Out: Approx. 263 x 67mm (see Technical Data tab)
• Opening Type: Brush-lined cable access
• Installation: Drop-in fit after routing rectangular cut-out
• Suitable For: Office desks, conference tables, meeting tables, reception desks and bespoke furniture
• Compatible With: Desk power modules, USB chargers, power sockets and cable management accessories
• Finishes: Standard colours available with additional finishes on request

Useful Accessories & Related Products

• Under Desk Cable Trays & Wire Baskets
• Under Desk Power Modules & Leads
• Cable Snakes & Floor Trunking
• Top Side Power Solutions
• Range of Access Plates you can add Wood Infill Panels to

Key Features

• Premium 276x80mm Smooth Close Access Plate
• Integrated brush-lined cable access
• Provides a neat, professional cable management solution
• Suitable for power, data and AV cable routing
• Quick and easy drop-in installation
• Compatible with desk power modules and connectivity solutions
• Ideal for commercial office furniture and bespoke joinery
• Alternative depths and selected soft-close models available
• Additional colours and finishes available upon request

Important Installation Information

Hole cut-out dimensions are provided in good faith using the latest available technical information and we'd always recommend you study the downloads included with the Technical Data tab, to ensure you're accessing the latest data.

It's also advisable to wait until the product has been received and is suitable for your intended application, before machining your worktop, as manufacturing tolerances may apply.

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: can you advise where the hinge point is. Presume its the oposite side to the brushed opening.

A: that's correct - there's normally a couple of hinges, the opposite side to the brush opening. Hope that helps! BPF WebSales

Q: Hi, Could you tell me if the lid is removable?

A: I've just taken a look at this unit for you and I can see the lid is kept in place with a pin either side but there doesn't appear to be any way to loosen these off, so there's no allen key adjustment for you to be able to remove the lid by the looks of it! I know the access plates we do that we sell as Soft Close and Smooth Close, do have removeable lids if you wanted to consider one of these instead?

Q: Hi I need to know the internal dimensions of the Std Close Plate 276x80x27mm. We ordered x30 of these yesterday. I understand that the hole I will need to cut in the desk will be 263x67 however we will be modifying these and fitting an internal bracket to accommodate x4 USB ports and x3 RJ 45 data ports. We need to know the internal dimensions of the plate so we can start fabricating the bracket we need to suit our needs. Thanks Dave

A: I've just added the only other dimensional drawing we have on file to this product page. Simply click the Technical Data tab down next to the Description and you can view the download. Incidentally though, these parts will be delivered to you today and are probably in fact already on site, so you can physically measure them now you're in possession of them.

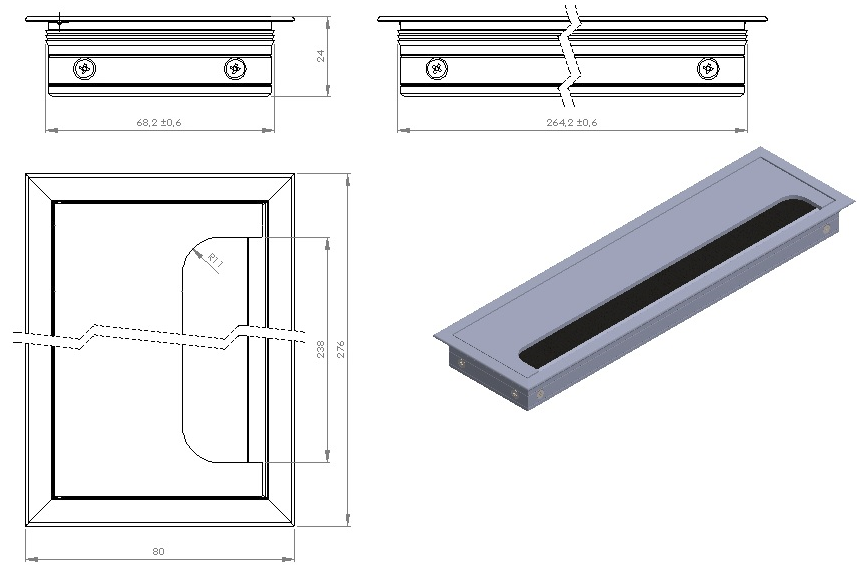

• Technical Drawing
