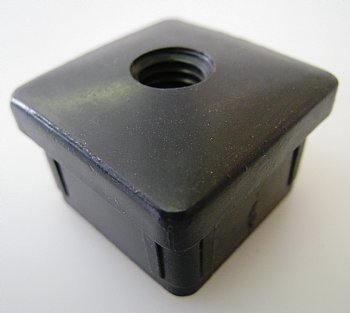

3/4x3/4 Inch Square M8 Threaded Tube Insert | 18 Gauge

3/4x3/4 inch (or 19x19mm metric) plain sided M8 threaded tube inserts designed to push into square tube to act as a foot, with an outside or external dimension of 3/4" square to suit an 18 gauge wall thickness.  Unlike standard ribbed tube inserts used for finishing and capping off, these threaded / tapped inserts are used for screwing feet or castors into, giving you the option of height adjustment or mobility.

Across our range of threaded inserts. you have different options including all-plastic, plastic with metal threads or all-metal and there will also be variations including solid, folding, ribbed and plain sided options.  Hopefully there will be something suitable for your application and please feel free to utilise our free of charge sample service - just look out for the request sample button you'll find on any product page, where a sampls is available.

Threaded inserts by their nature will be made from a harder material than normal tube inserts, as the inegrity of the thread needs to remain intact when coupled with a foot or castor and they're all designed to retain themselves inside tube, with the head sitting over the outer ends of the tube or pipe, sitting flush with the outside circumference of the tube and providing a neat finished appearance.

Technical Information:

• Tube or box section profile: Square
• External tube size: 3/4x3/4" (or 19x19mm metric)
• Thread: M8 Plastic
• Tube wall thickness: 18 Gauge
• Suggested internal fit: 16.6x16.6mm approx. (different factors affect this, including coatings, weld lines and tolerance)
• Material: Polypropylene
• Fitting type: Push in inteference fit

Suitable for:

• Feet for tubular framework
• Height adjusting furniture
• Display, POS and shopfitting
• Feet for Display systems
• Rasing products off the floor
• Light fabrication projects
• Eliminating welding operations
• General engineering applications
• Receiving castors, feet and glides

Useful Accessories & Related Products

• M8 Rigid Feet
• M8 Tilt Feet
• M8 Anti Vibration Mounts
• Screw In Glides
• Square Tube Expanders
• Castors & Wheels
• All-Metal M8 Feet
• M8 All-Thread Pre Cut Studs
• T-Nut & D-Nut Threaded Inserts

Tube inserts are always listed the same way that tube is listed because the head of the insert needs to marry up with the outside edges of the tube.  They often come in a variety of wall thicknesses and gauge sizes but if you're unsure on fit, you can click the 'Request Sample' button, or for help measuring your tube, try out this useful sizing pdf.

If this isn't quite right for your application, we have all sort of other options including Table Leg Adjusters which are perfect if you don't want a metal thread visible.  This is just one of wide range of Threaded Inserts we offer and if you're struggling to find what you need, the you can phone, email or live chat us.
