421.5x113.5mm EcoPass Plate, Silver

The EcoPass System is supplied with the choice of a standard Silver/Aluminium or White finish and comes as standard with the lid and frame, the cable holder is an optional extra.

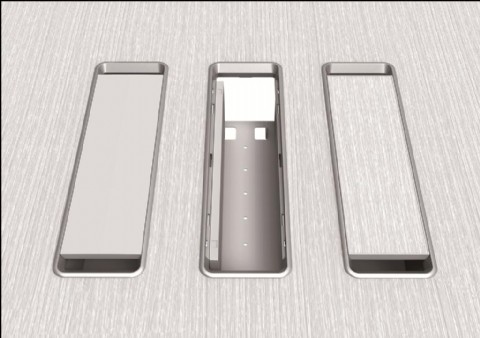

The lid/top has been designed to be reversible so that you can have it flush on one side, or you can spin it to reveal a recess, enabling you to insert your own laminate insert - this obviously helps with colour continuity on a desktop, if you want to retain a pure finish.

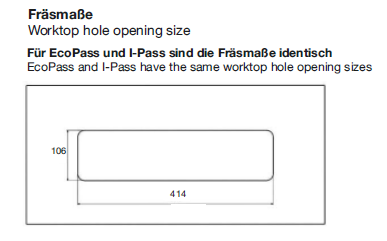

The Cut out required for EcoPass is 414 x 106mmm which means that EcoPass is the same size as our I-Pass product, meaning you can alternate between the two depending on each individual application. If you decide you want to utilise the recess for a laminate insert, you'll need a 347.5 x 96.5mm rectangular panel, approximately 8mm thick.

We show standard colours & finishes where possible but these are constantly changing so if you require a colour not listed in the drop-down, speak to us as we may well have added it since.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

• Fitting Instructions
• Cut Out Dimensions

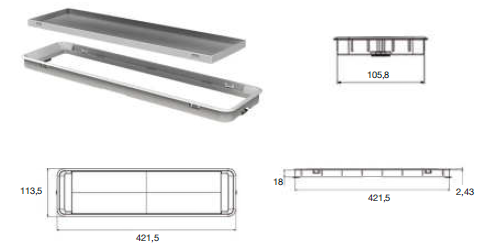

• Component Drawing
