Angled Table Leg Mount, to 50mm O/D

The 'Twister' leg connector is designed for installing a leg in any position from 0 to 20 degrees - one way. Simply by twisting the leg tightly onto the connector plate. Can be used on tables, cabinets, beds, sofas etc or wherever a leg is needed.

Creates striking furniture when otherwise a standard straight leg would have sufficed, but it can also be used as height adjuster/leveller in the case of uneven floors. Adjustable up to 40mm when changing the angle from 0 to 20 degrees, 'Twister' is designed for tubes with a maximum leg diameter of 50mm, to be used in conjunction with an M8 Bolt (not supplied).

The round sliding plate and body are made from Black Reinforced ABS and the internal mechanism is of Steel. We show standard colours and finishes where possible but these are constantly changing so if you require a colour not listed in the drop-down, speak to us as we may well have added it since.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

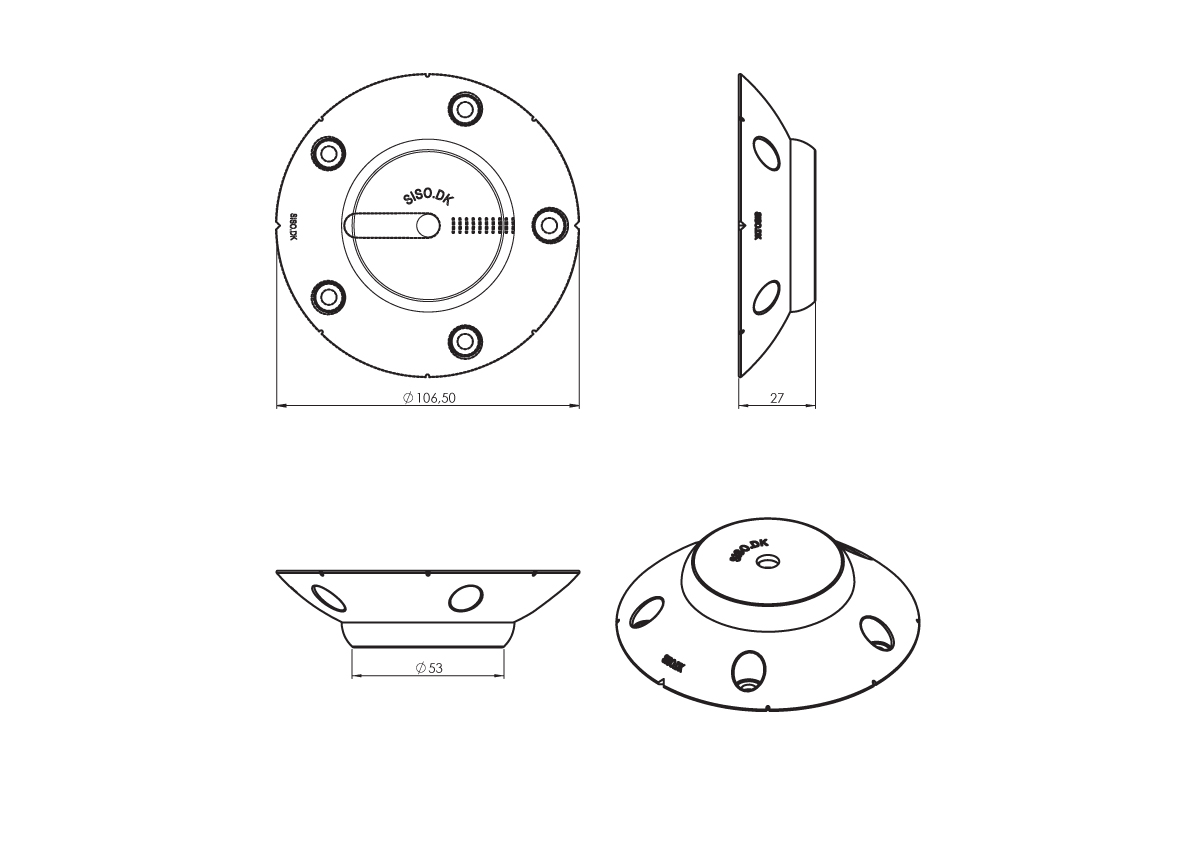

• Component Drawing

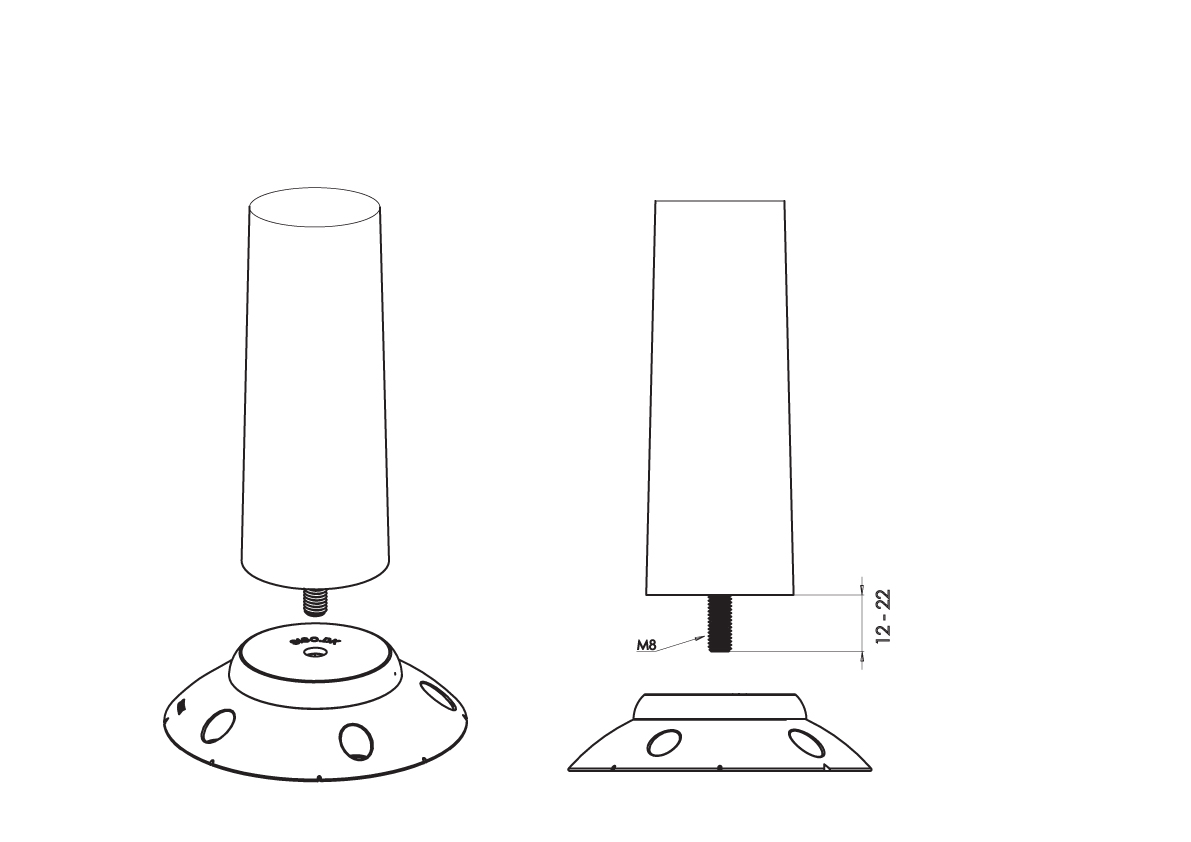

• Assembly Diagram
• Fitting Instructions

 Tube Fittings Buying Guide
