End Use Adjuster with Foot - 18mm (Pre-Assembled)

The 18mm End Use Adjuster with Foot is a pre-assembled, heavy-duty wooden panel adjustment foot designed to provide reliable levelling, edge protection and stability for vertical furniture panels and board systems.

Engineered for precision, this adjustable furniture foot sits neatly at the base of wooden panels and allows height adjustment via an internal threaded mechanism. The integrated foot screws up inside the moulded body, delivering a clean, flush finish while ensuring secure contact with the floor.

Ideal for joinery, cabinetry, shopfitting and furniture manufacturing, this component helps improve alignment, protect panel edges and extend the lifespan of installations.

Key Features

• 18mm end use adjuster supplied fully pre-assembled
• Integrated adjustable threaded foot for precise levelling
• Designed for vertical wooden panels and board systems
• Protects panel edges and corners from floor contact damage
• Flush-fitting design for a clean, professional finish
• Suitable for multiple panel widths and furniture applications
• Durable construction for long-term structural stability
• Sold individually with no minimum order quantity
• Fast UK dispatch and next day delivery available (order before 3pm)

Applications

This wooden panel adjuster foot is widely used across:

• Cabinet and furniture manufacturing
• Kitchen and bedroom installations
• Office furniture and workstation systems
• Retail display and shopfitting
• Joinery and bespoke carpentry
• Modular panel and board structures

Technical Specification

• Product: End Use Adjuster with Foot
• Size: 18mm
• Type: Pre-assembled panel foot
• Adjustment: Internal threaded screw mechanism
• Function: Height adjustment + edge protection
• Material: Durable engineered fitting (high-strength component grade)
• Supplied: Fully assembled
• Sold: Individually
• Colours & Finishes

We display standard colours and finishes where available; however, our range is frequently updated. If you cannot find the exact finish required in the dropdown menu, please contact us as additional options may already be in stock or newly added.

   Why not submit your own review?

Submitted by DH (18/11/2021)
Item was received within 24 hours of my order exceptional. The adjuster does the job but was not very deep so the boards I inserted only just fit in.

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	4.3 / 5

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: Can you please tell me the dimension from the end of a panel to the 18mm dia hole to take this 18mm wide adjuster. The diagram is not clear, and in fact an 18mm dia boring would be the whole width of the panel. It looks like the diagram is for the 25 mm panel adjuster. URGENT PLEASE

A: I've just added a new drawing into the Technical Data tab on SKU Ref : F-02020-018C-001-600 so you can now open that up and it might give you a different perspective. I've also now made this part available as a sample, so if you refresh your page - you should now see an Orange 'Request Sample' button you can click to get one to appraise.

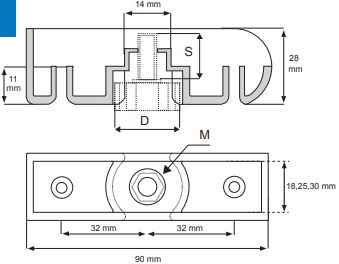

• Technical Drawing
