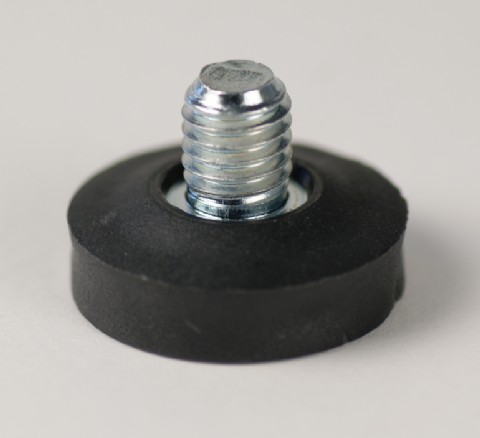

Ø24mm Adjustable Threaded Foot | M8 x 9mm

These 24mm diameter adjustable feet are one of many foot options we have available, with an M8x9mm Thread and as with all our M8 feet, they will have a standard 1.25mm pitch.  They're designed to screw into furniture and framework, to give you a level of height adjustment, which will be variable depending on what thread length you go for.

If you're intending on using these in hollow tube, pipe or box section then you will want a threaded tube insert or if you're intending on using these underneath wooden frames or carcasses, then you'll want a T-Nut or a D-Nut.

If you're looking to something more heavy duty, if for instance you're intending using them under heavy machinery or conveyor systems, then you might be better off with one of our load rated feet, which also come with Stainless Threaded options.

Key Features:

• Small compact foot with a 24mm Round Base
• Manufactured from resilient PPCP
• Standard M8 Thread with 1.25mm Pitch
• Raises furniture and frames off the floor
• Pozi drive on underside of foot for rapid assembly
• Designed primarily for indoor use but can be used outside but not UV stabilised as standard

Technical Information:

• Base Diameter: 24mm Round
• Thread Form: M8 x Industry Standard 1.25mm Pitch
• Exposed / Available Thread: 9mm
• Base Height: 8mm
• Compatible with Threaded Inserts including D Nuts and T Nuts
• Material: Polypropylene (PPCP)

Suitable for:

• Levelling off furniture
• Height raising
• Feet for shopfitting
• Replacing castors
• Retro ftting and repairs
• School furniture
• POS and retail

If this doesn't quite fit what you're needing, then you can explore our full range of feet and castors where you'll find a variety of other options including stainless threaded feet, chrome capped feet, anti vibration mounts, furniture glides, all-metal feet and even self assembly feet in the form of sockets and pre-cut all thread studs, meaning you've no limitations to the length you can go.

If you decide you don't want a visible thread and you're using hollow tube or box section, then we also have a range of table leg adjusters and tiltserts but with the range of feet available being so  extensive, then please contact us if you can't find what you need.

   Why not submit your own review?

Submitted by Steve Topham (18/02/2020)
Great service thanks

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	4.8 / 5

Submitted by Mrs pauline alam (30/01/2020)
Easy transaction, Speedy delivery,

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	5.0 / 5

Submitted by Howard Thomas (7/11/2019)
promt delivery, no problems, just the way it should be

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	4.3 / 5

Submitted by Jasdeep Bhogal (3/09/2018)
Staff were very helpful in getting my order to me ona saturday morning. Thanks

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	5.0 / 5

Submitted by Mr Nick Scott (2/08/2018)
All fantastic !!! No problem ordering and very fast delivery with the added advantage of being able to order a sample before placing the main order GREAT !!

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	5.0 / 5

Submitted by Barry (29/06/2018)
Great service, ordered in the afternoon, arrived next morning, 1st post. Phoned to tell them I was really impressed with their service!

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	5.0 / 5

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: What materials are the feet make from?

A: Hello. These feet are made from PCPR-PP (polypropylene) and Steel. I hope this assists. Kind regards, BPF

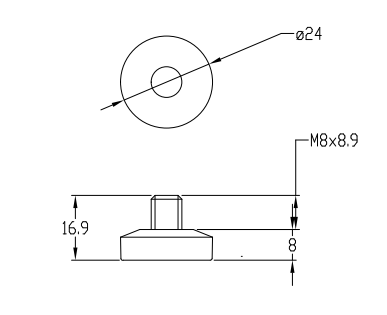

• Technical Drawing
