180° Fuerte 7-Piece Connection Kit, 64mm Dowel

"FUERTE" is a heavy duty connector particularly suitable for strong and secure and assembly of beds, table frames, panels and cabinets. The housing with it is steel worm gear and hardened steel dowel ensures a permanent grip and continual tension.

You can buy this connection system either as individual components or as is in this case, in kit form. This particular kit will give you the 4 Core Components required for a 180 Degree Joint, comprising :

2 x Fuerte Body/Housing (F-04072-1103610-600)

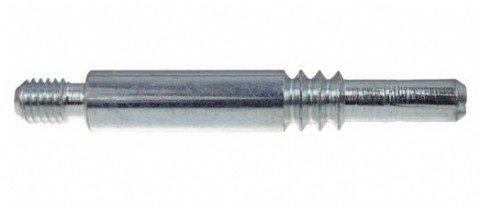

1 x M8 x 64mm Male Dowel (F-04072-1103620-600)

1 x M8 Female Dowel (F-04072-1103660-600)

1 x Hex Allen Key (F-04072-1103650-600)

2 x 6.1mm Dia Cover Caps (F-05010-006039)

If you prefer to make up your own kits, if for instance you already have a supply of suitable M8 Bushings or M8 Male Dowels, then you've got the option of buying all these components separately.

We show standard colours & finishes where possible but these are constantly changing so if you require a colour not listed in the drop-down, speak to us as we may well have added it since.

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: With each dowel length, what's the offset of the centre of the 35 housing hole?

A: Hello. Please see the technical data tab where we have now added drilling distances. I hope this assists. Kind regards, BPF

• 180 Degree Assembly
• Assembly Examples

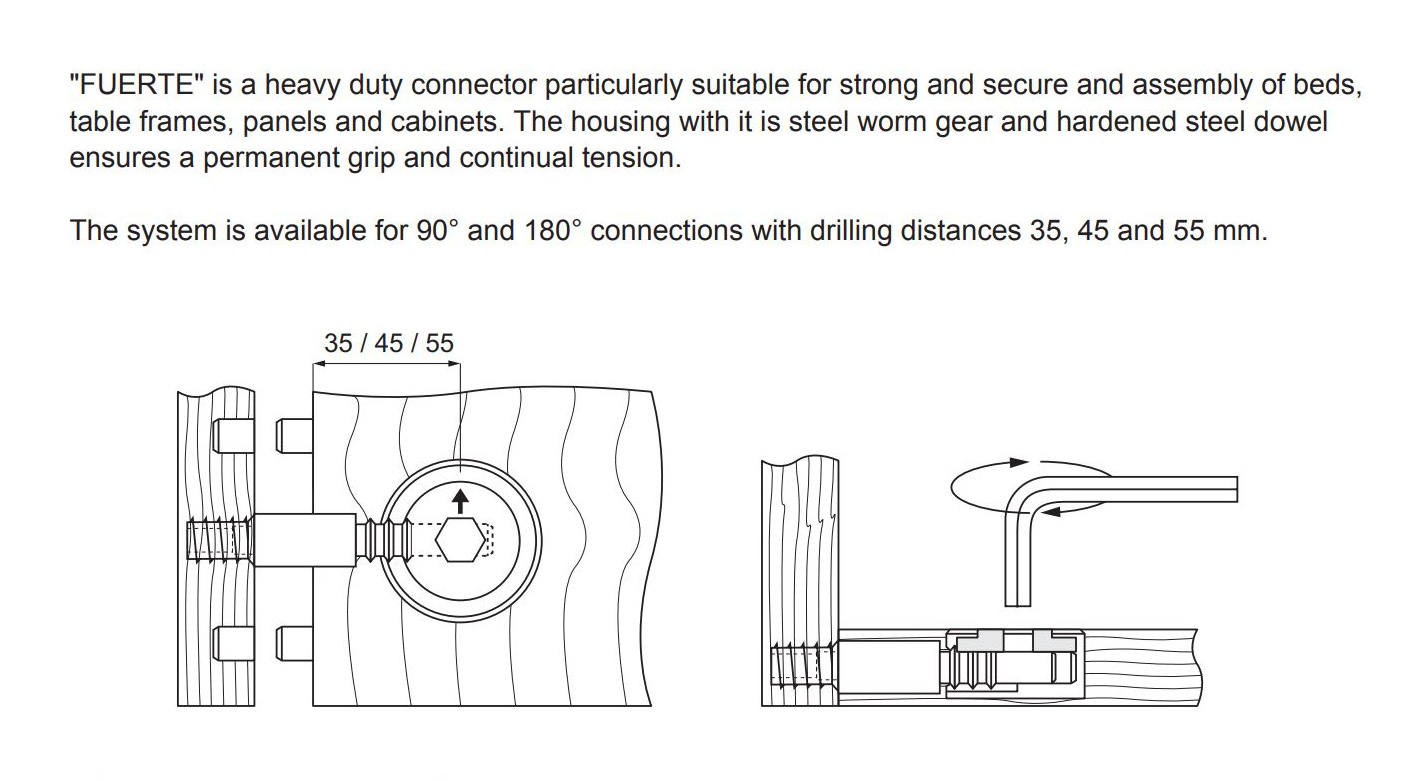

• Housing Drawing / Depth Required
• Drilling Distances

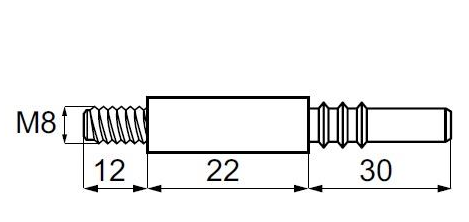

• Dowel Drawing
