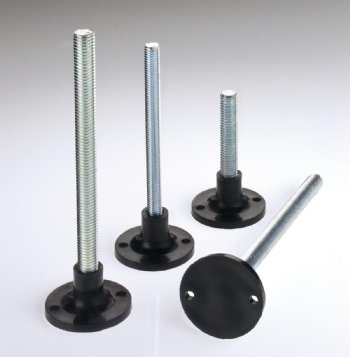

Ø42mm Utility Adjustable Threaded Feet, M8x90mm

These height adjustable feet were originally designed for shower trays, baths and jacuzzi's but aren't limited to a specific use, hence we call them Utility Adjusters.  They all come with a 42mm diameter base but unlike the rest of our adjustable feet and glides range, these are listed by their overall height rather than the useable thread length.

Unlike most of the adjustable feet we sell which are 'insert moulded' which means the base is injection moulded around the screw, these glides are essentially a 2 part assembly as a pre-cut all thread stud is factory fitted into the plastic base.  This has the advantage that you can achieve any desired height meaning that if you don't find the size foot you need, then you can make your own assembly using these M8, M10 or M12 Plastic Base Sockets in conjunction with these Pre-Cut All Threads.

42mm diameter adjustable feet are one of many foot options we have available, with an M8x68.2mm 'useable' Thread and as with all our M8 feet, they will have a standard 1.25mm pitch.  They're designed to screw into furniture and framework, to give you a level of height adjustment, which will be variable depending on what thread length you go for.

If you're intending on using these in hollow tube, pipe or box section then you will want a threaded tube insert or if you're intending on using these underneath wooden frames or carcasses, then you'll want a T-Nut or a D-Nut.

If you're looking to something more heavy duty, if for instance you're intending using them under heavy machinery or conveyor systems, then you might be better off with one of our load rated feet, which also come with Stainless Threaded options.

Key Features:

• Small compact foot with a 42mm Round Base
• Manufactured from resilient PPCP
• Standard M8 Thread with 1.25mm Pitch
• Raises furniture and frames off the floor
• 2 fixing holes for floor mounting
• Designed primarily for indoor use but can be used outside but not UV stabilised as standard

Technical Information:

• Base Diameter: 42mm Round
• Thread Form: M8 x Industry Standard 1.25mm Pitch
• Exposed / Available Thread: 68.2mm
• Base Height: 22.4mm (total height 90mm)
• Compatible with Threaded Inserts including D Nuts and T Nuts
• Material: Polypropylene (PPCP)

Suitable for:

• Bath & Shower Tray adjusters
• Height raising
• Feet for shopfitting
• Replacing castors
• Retro ftting and repairs
• School furniture
• POS and retail

If this doesn't quite fit what you're needing, then you can explore our full range of feet and castors where you'll find a variety of other options including stainless threaded feet, chrome capped feet, anti vibration mounts, furniture glides, all-metal feet and even self assembly feet in the form of sockets and pre-cut all thread studs, meaning you've no limitations to the length you can go.

If you decide you don't want a visible thread and you're using hollow tube or box section, then we also have a range of table leg adjusters and tiltserts but with the range of feet available being so  extensive, then please contact us if you can't find what you need.

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: What is the actual thread length of this product (42mm utility adjuster, M8 x 90mm)?

A: Hello, According to the drawing published on the site, the total thread length is copied & pasted below : B1 - 68.2mm Hope that helps BPF WebSales

Q: I am looking for headboard bolts that are 90mm. Sales have asked me to look at these as you don't stock 90mm. will these be suitable for the same job please ? Tks

A: I'm afraid we don't offer any headboard bolts with a thread length of any longer than 75mm. If you wanted 90mm of thread then the only option left to you is to use something like a foot. Here's an SKU (part number) you can use to search for on our website : A-05010-008133 which will give you a useable thread of 110mm, which you can always hacksaw down if required. There's nothing I can find with a thread length of bang on 90mm unfortunately. If it helps, headboard bolts are generally always M8 or 5/16 BSW so you'd need determine for sure if it's a metric or imperial thread to start with, as bed manufacturers fluctuate between the 2. Also, the part you asked the FAQ on only has a useable thread length of 68.2mm, as with the Utility Adjusters, they're always listed by the total overall height, including base!
