Rotary Push Lock | Padlock Secured

This elegant Rotary push lock is designed for use on timber, therefore making it perfect for wooden doors, shed doors, cabinets and other wooden furniture appliances.

This push button lock mechanism is secured using a padlock. Once the padlock has been inserted, the knob will be automatically disconnected from the back part/lever, avoiding any possibility of 'forcing' the lock to open.

Features / contents:

• 1 Push Lock
• 1 stopper 90° RH/LH
• 1 Lever, straight, 35mm, Steel Zinc Plated
• 1 Fixing screw (for lever)
• 1 Rosette
• 1 Shim plate
• Material: Zinc Alloy
• Finish: Matt Nickel or Polished Nickel

*Padlock required, but not included
*Manufactured in Germany

This push lock unit has a simple, time saving and cost affective installation process, so that you can improves security in a quick turn-around.

For further information, please refer to the user manual in the technical data tab.

This item is available in either polished nickel or matt nickel as standard, however if you require an alternative colour then get in touch as we may be able to accommodate, subject to MOQs and longer lead times.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

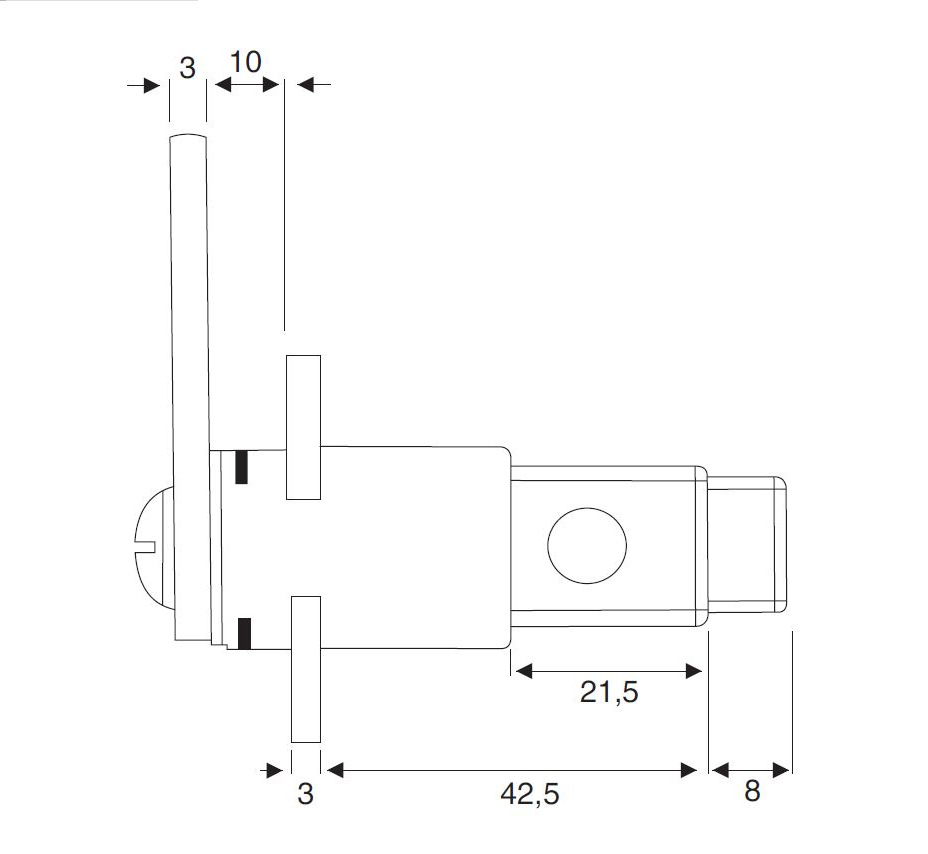

• Technical Drawing

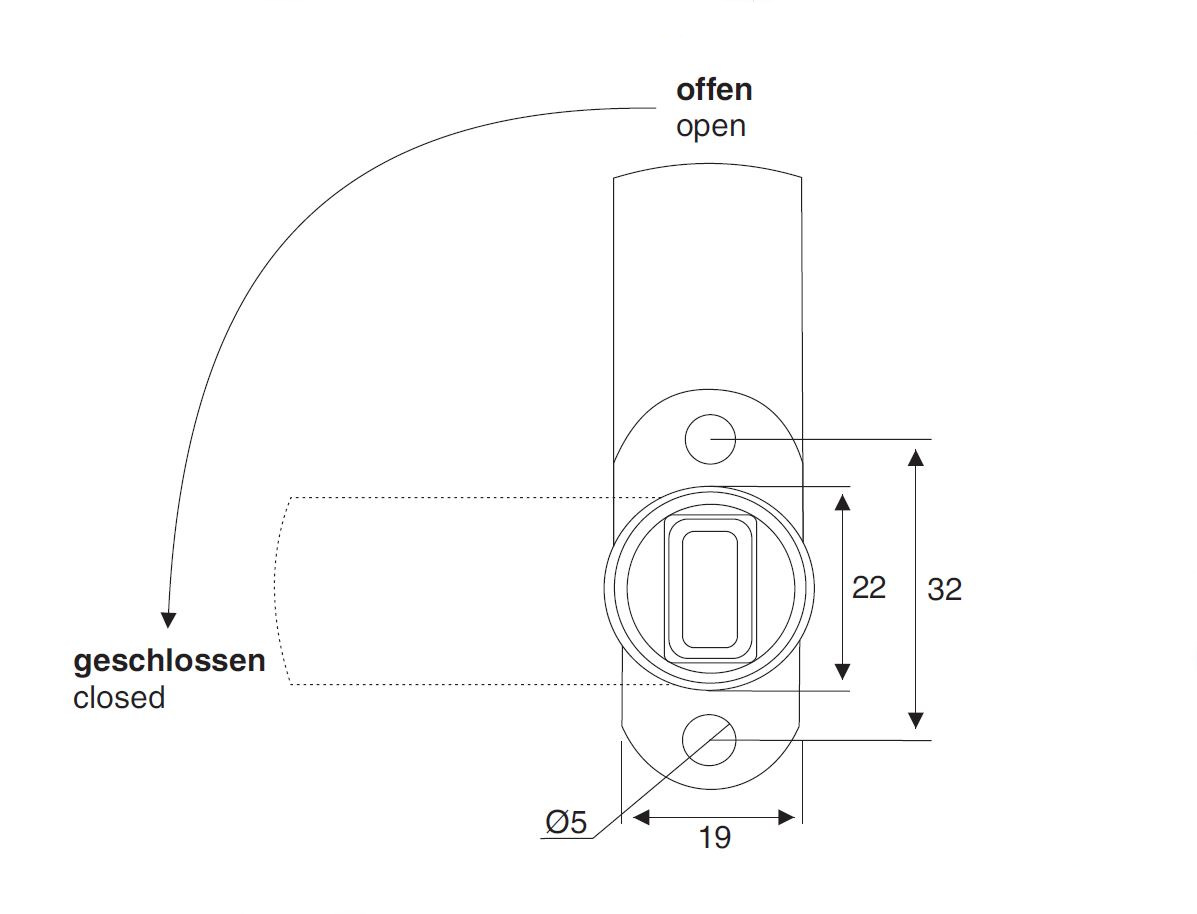

• Technical Drawing | Open / Closed

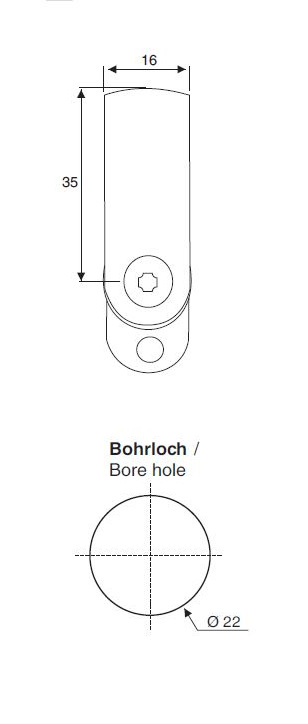

• Technical Drawing | Bore Dia.

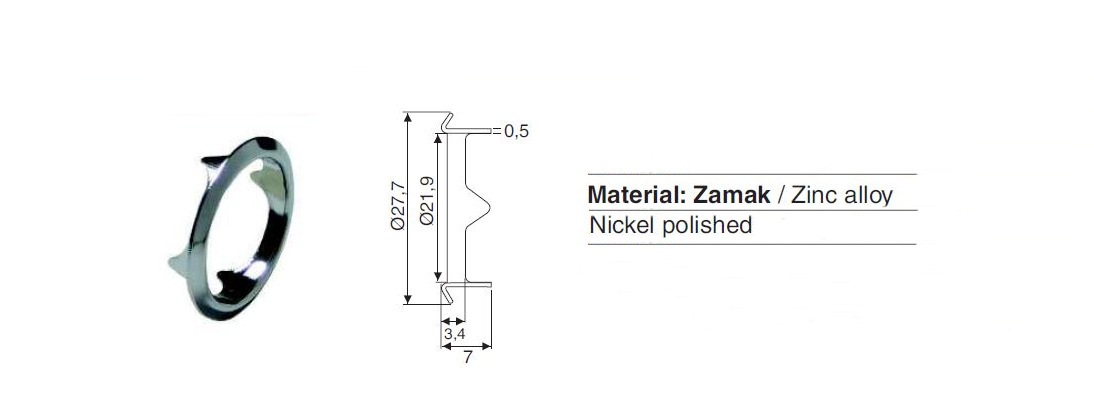

• Technical Drawing | Rosette
