Three Piece Dowel Connector

This three piece dowel connector is made from Nylon and provides a concealed fastening system; designed to securely connect wooden panels together without the use of nails or screws.

The connection system consists of 1 x intermediate male link and 2 x female snap fittings. Each of the female components are ribbed for a secure fit and fix into a Ø10x10mm borehole in each of the adjoining panels. The adjoining panels are then connected using the intermediate male link, which plugs into each of the 2 female sockets, locking them and the two panels together.

Three piece dowel connectors are used across a wide range of industries and are particularly common within the bedding, construction and fabrication industries.

Technical details:

• 3-piece jointing system: Male & Female components (included)
• Material: Nylon, White
• 2x Female Part: Bore Ø10 x 10 mm
• 1x Male Part: Ø7x17mm
• Not suitable for ceiling installation

Please see the ‘Installation’ manual under the ‘Technical Data’ tab for further details.

We list this part in white only as standard. However, if you require an alternative colour, get in touch with the sales team today as custom colours may be available on request, subject to minimum order quantities and extended lead times.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

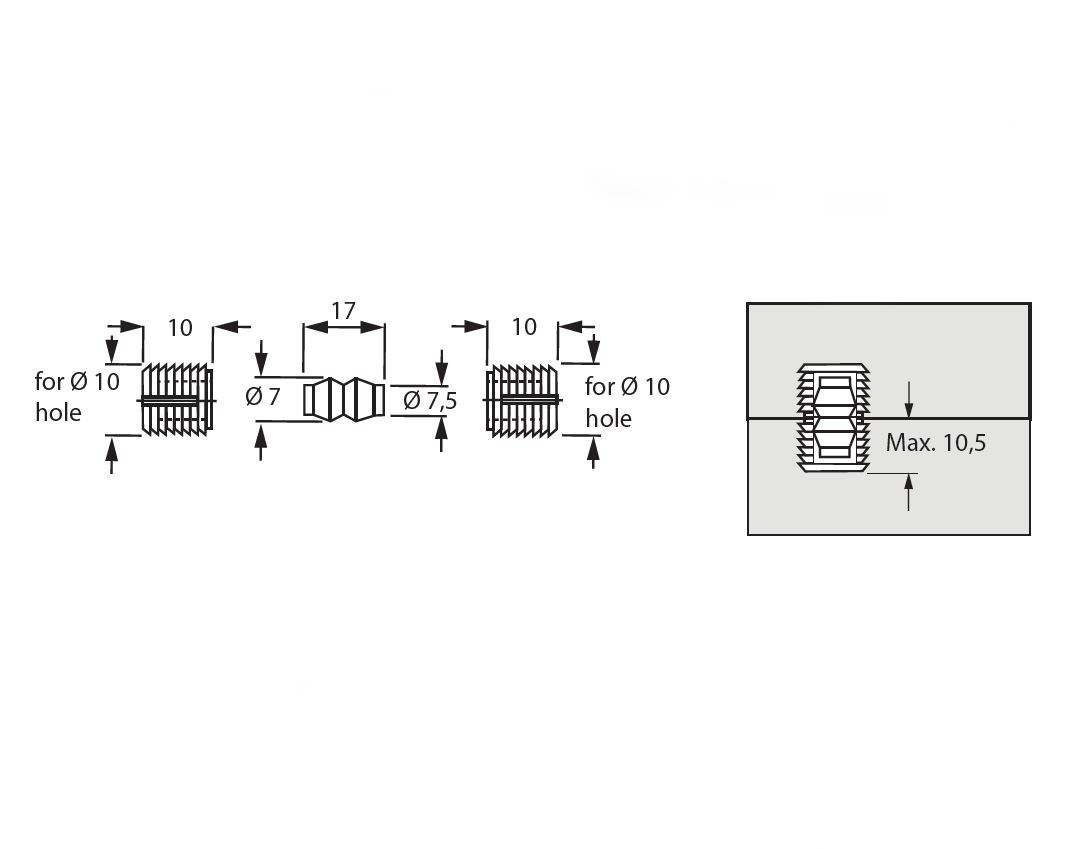

• Dimensional Drawing

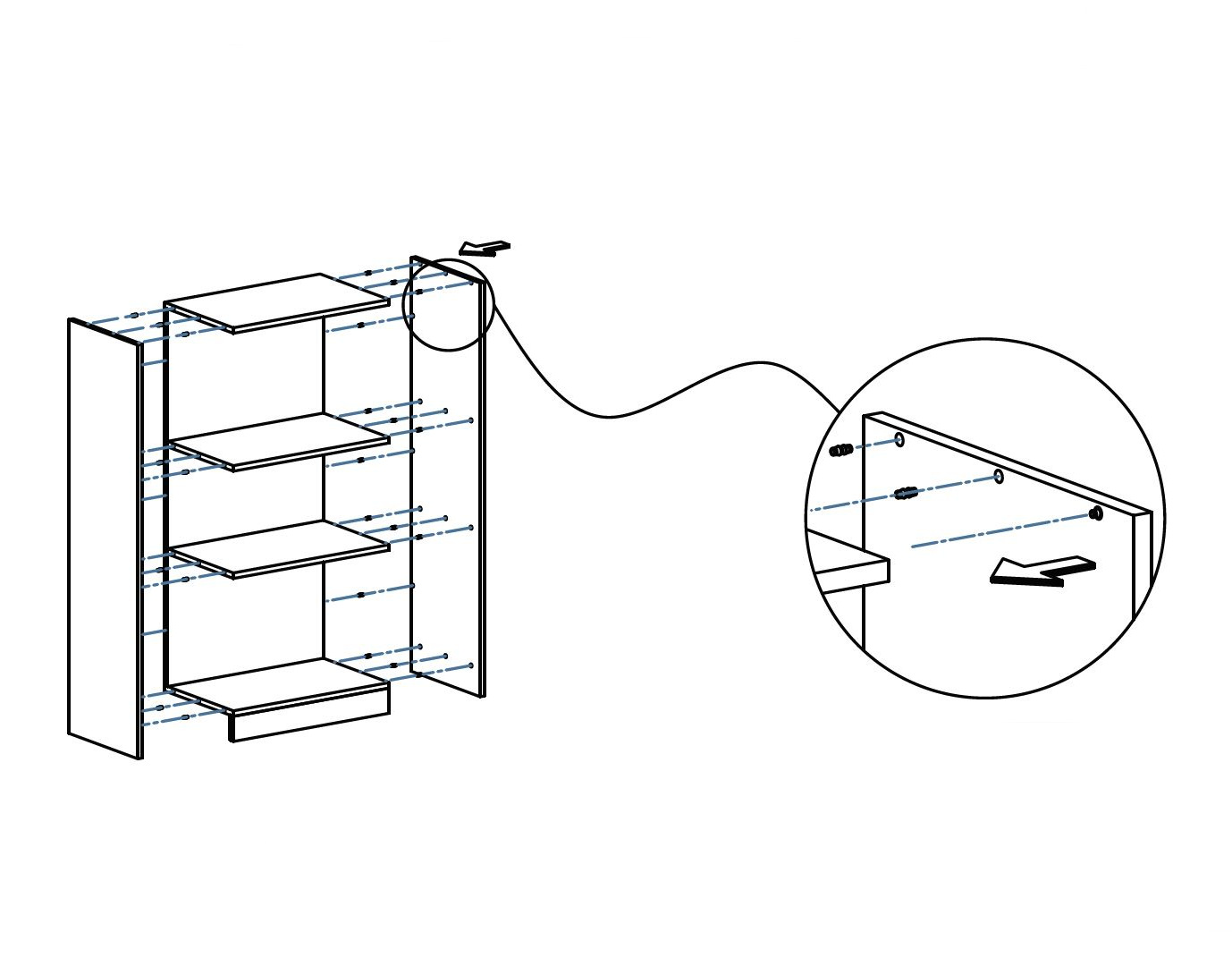

• Installation Manual
