Ø80mm Pull Up Socket | 2 gang, 2 USB

This stylish pull up socket has been developed primarily for office use, offering 2x UK Power Sockets and 2x USB; neatly combined within a single unit.

Featuring an easy grip cover, this pull up socket can be effortlessly drawn it into position for use. However, unlike the other pull up socket options in our range, the pull up mechanism of this unit allows for it to be used in both an intermediate position (halfway) or fully extended position. There is also an integrated soft closing damper which prevents the unit from being closed with too much force.

The combination of style, configuration and pull up function provides the perfect all in one solution for office use. Fitting an Ø80mm hole, this pull up socket is ideal for office desks, meeting tables or home office set ups (please consider fuse / power limitations).

The pull up socket structure is predominantly manufactured from aluminium, while the metal cover and the top ring is available in either brushed chrome or matt black; subsequently providing a durable yet elegant design to enhance any workspace, where charging and power distribution is required.

Key features:

• Power sockets: 2 x 13A, 230V sockets to power electrical appliances or charge electronic devices.
• USB: 2 x USB of 5V, 2A max to charge smartphones or tablets.
• 2 possible opening positions: The mechanism allows the user to pull the socket up halfway or fully.
• Soft closing system: A damper placed in the back helps the pull up socket to close more softly.
• Operation: Pull up, using easy grip on the top cover.

Technical details:

• 2 x sockets: 13A, 230V
• 2 x USB: 5V, 2A max.
• 1 x mains cable with UK 3 pin plug at the end
• Soft closing damper (on last centimetre)
• Intermediate or complete open position
• Top cover and ring in metal, Matt Black OR Brushed chrome finish
• Profile structure: Aluminium
• Power cable: 3 x 1.5mm², 2m length
• Hole dia: Ø80mm
• Height from surface: 189mm
• Total height: 265mm
• Depth req. below surface: 285mm
• Maximum worktop thickness: 50mm
• Minimum worktop thickness: 5mm
• Installation: screw collar fastening
• *Unit is not IP rated

For more information, please see the 'Technical Data' tab.

As with all our concealed sockets, we always recommend using a tradesperson to install this unit.

Can’t see what you’re looking for? Custom finishes and configurations may be available on request, subject to a minimum order quantity of at least 2,000 units and extended lead times. Contact our sales team for more information.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

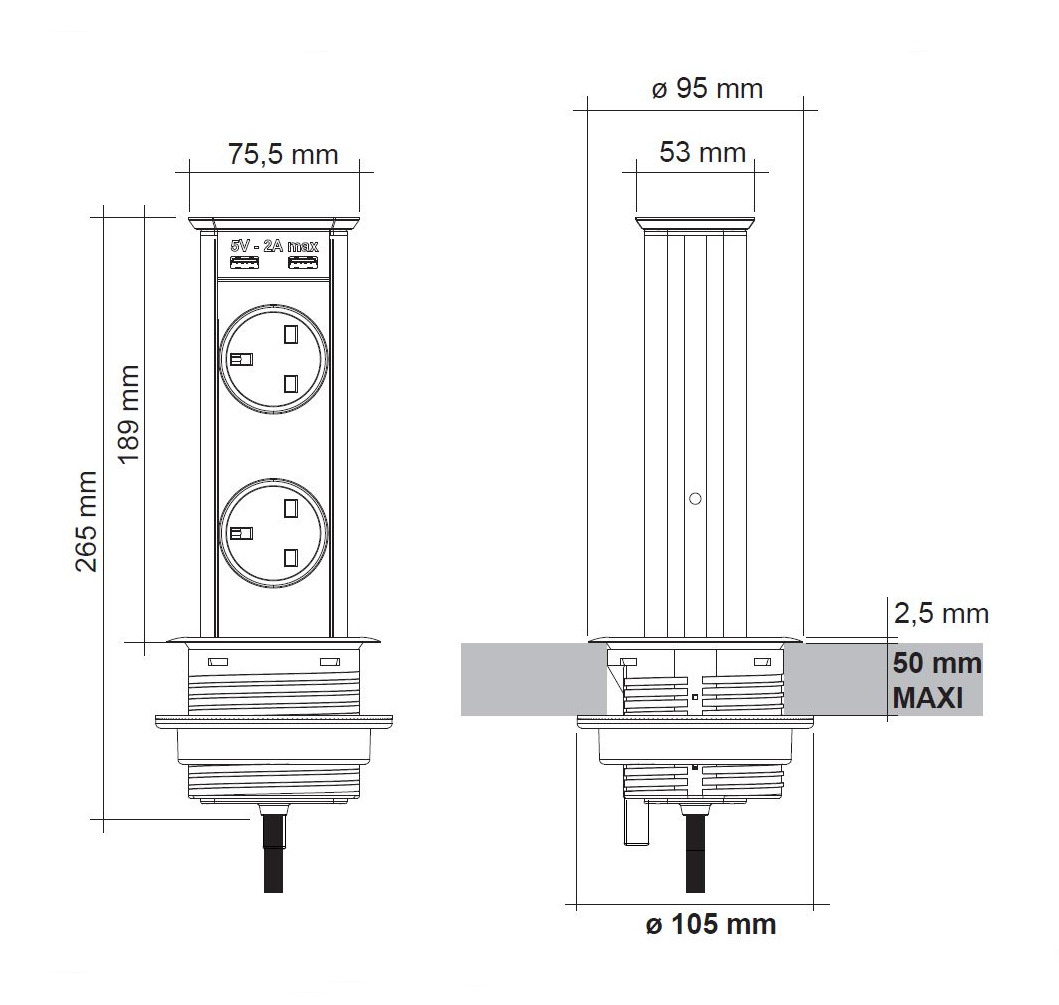

• Dimensional Drawing
• Fitting Instructions

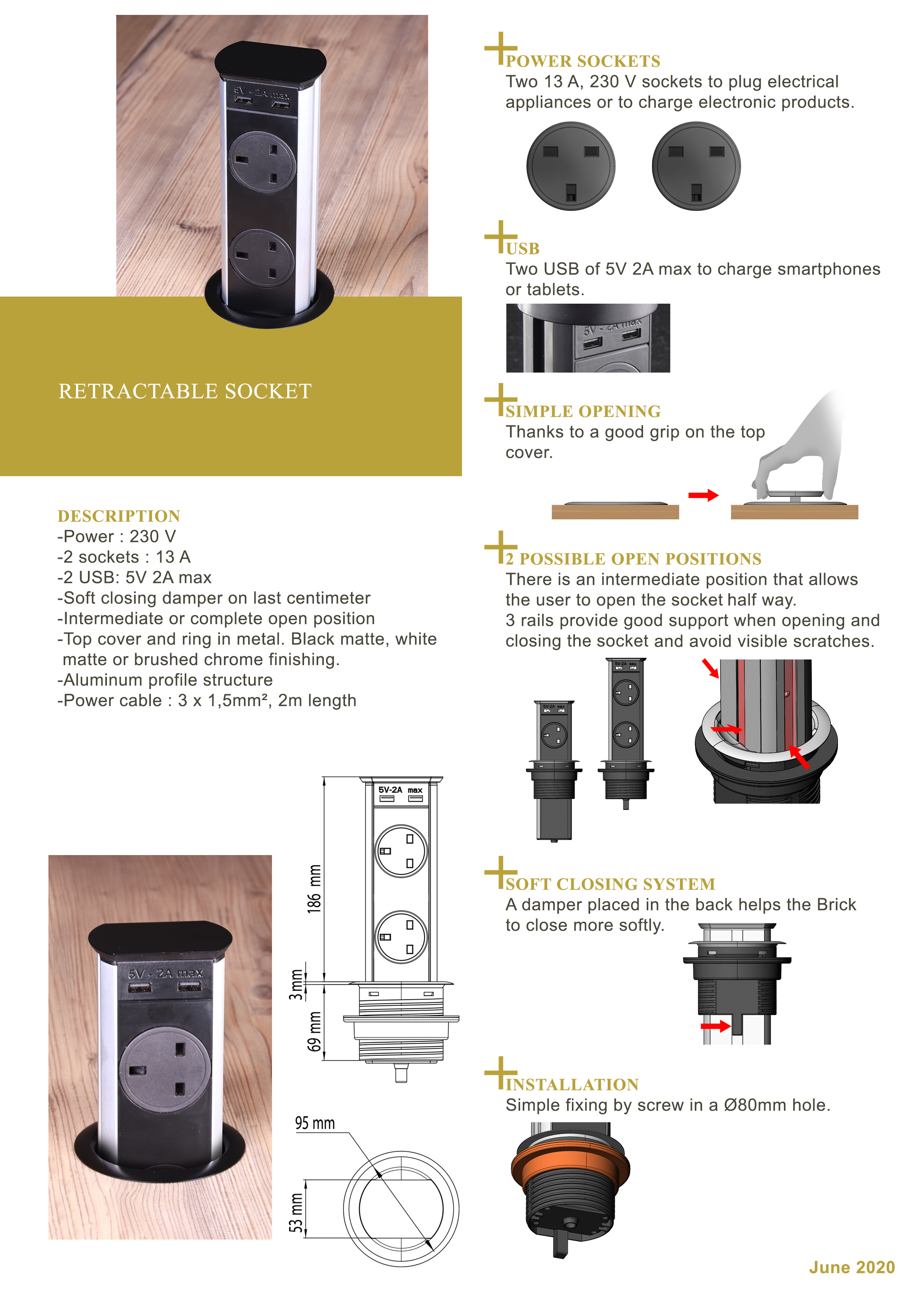

• Technical Data
