22mm Dia Chair Glide | Sled Base

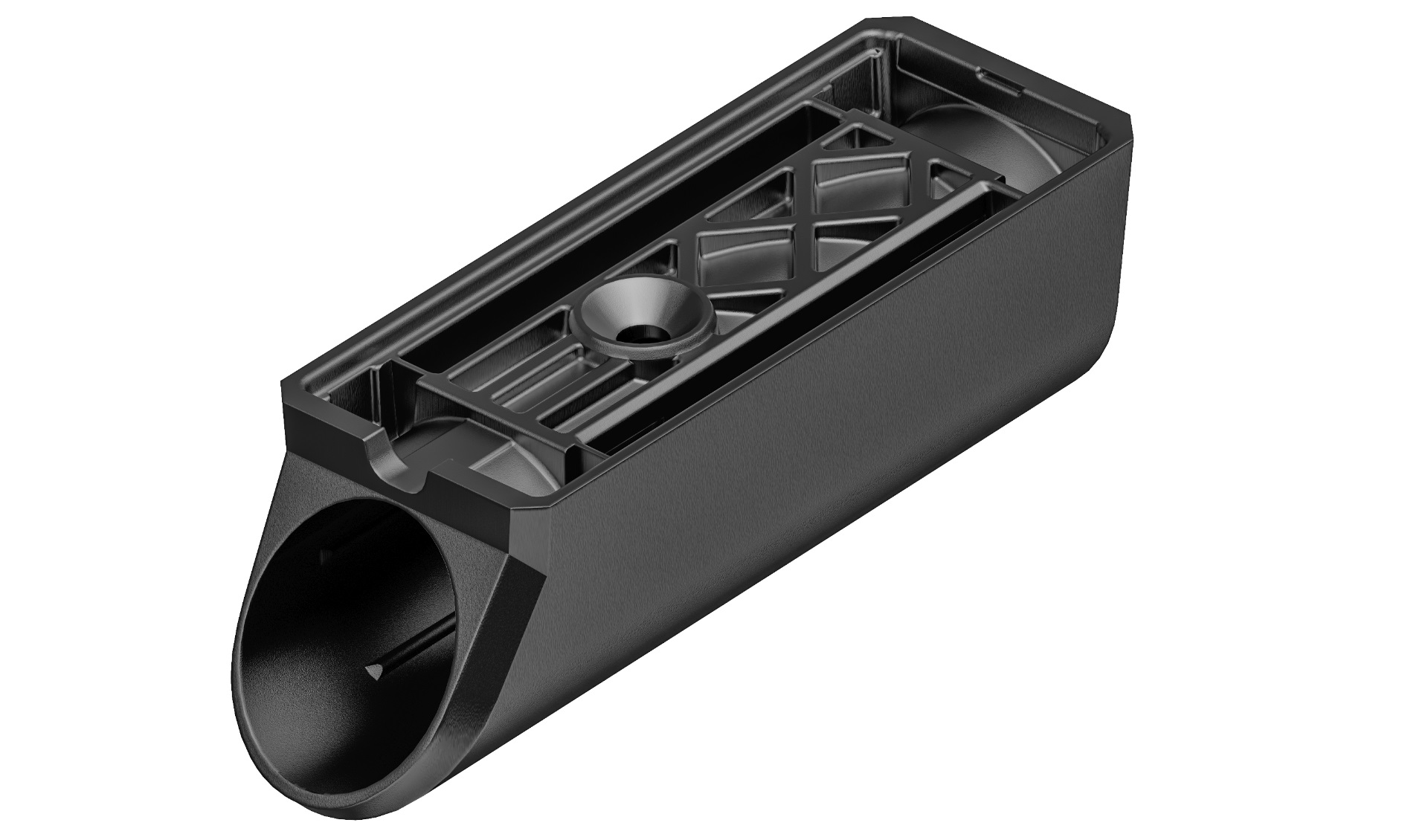

These sled base chair glides are designed to fit externally over Ø22mm round tube and raise the metal framework off the floor; subsequently protecting both the floor and paintwork of the frame, while providing easy and quiet mobility.

The innovative design of this chair glide features an interchangeable sliding base which allows you to switch between the 2 options depending on the application, or if it needs to be changed due to wear and tear.

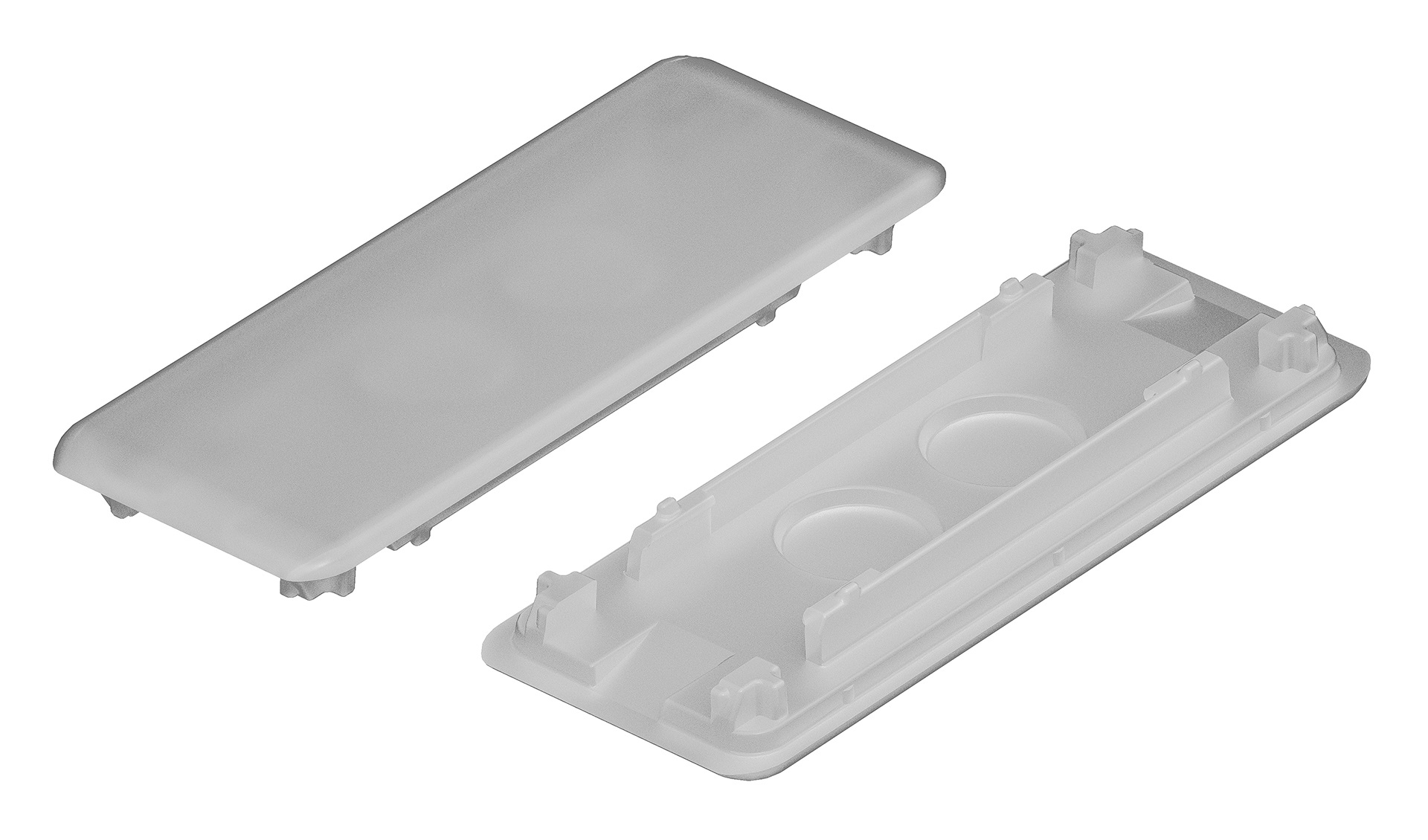

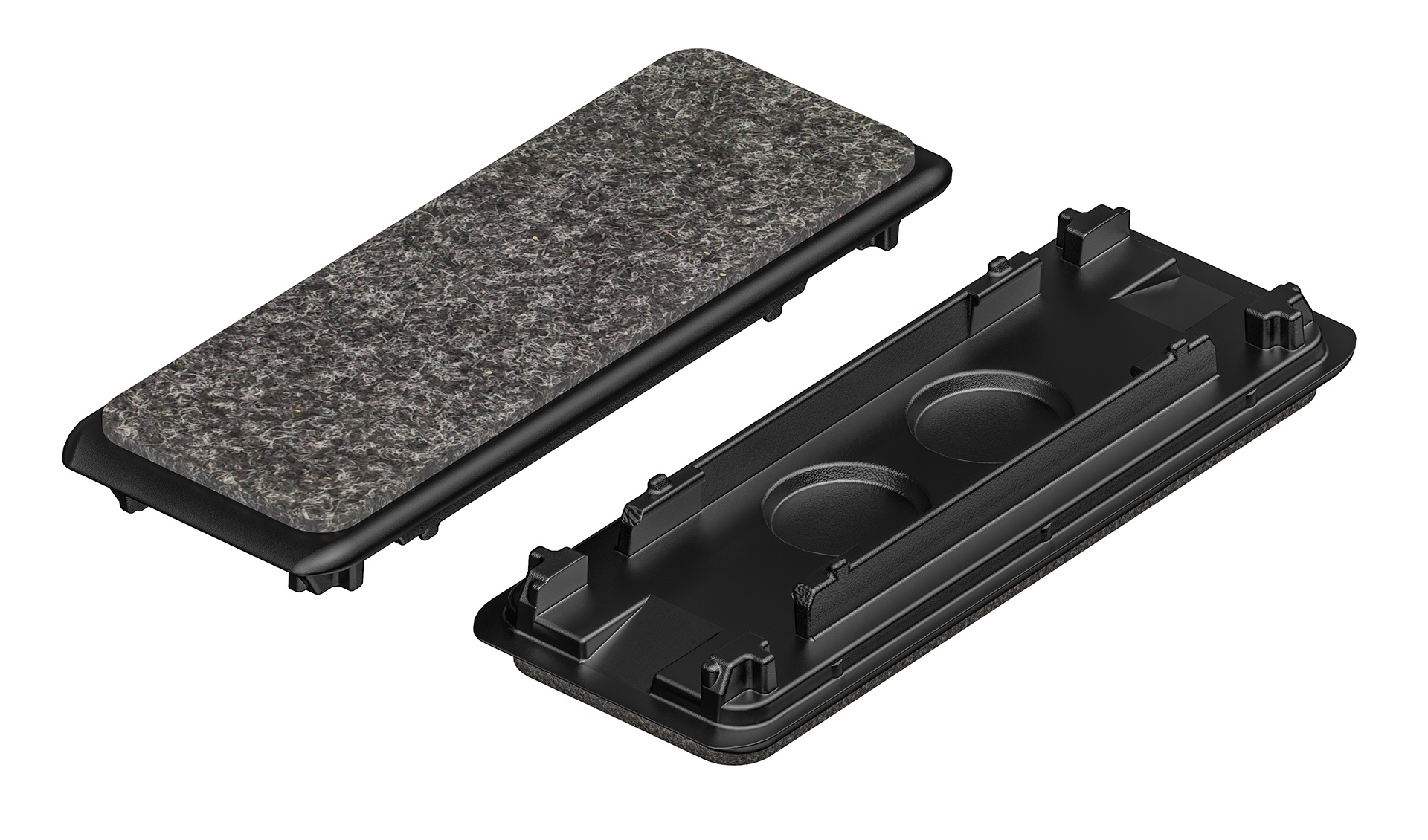

The 2 available sliding layers are Felt and Polypropylene (PP), which provides protection to a range of surfaces such as wood flooring, tiles, laminate, PVC, vinyl, natural stone, marble and more! Perfect for both domestic and commercial use, or any situation where you need to raise parallel tube off the floor.

As with all our tubular products, we list them in the same way as you would buy the tube, so the key dimension is the outside tube diameter.

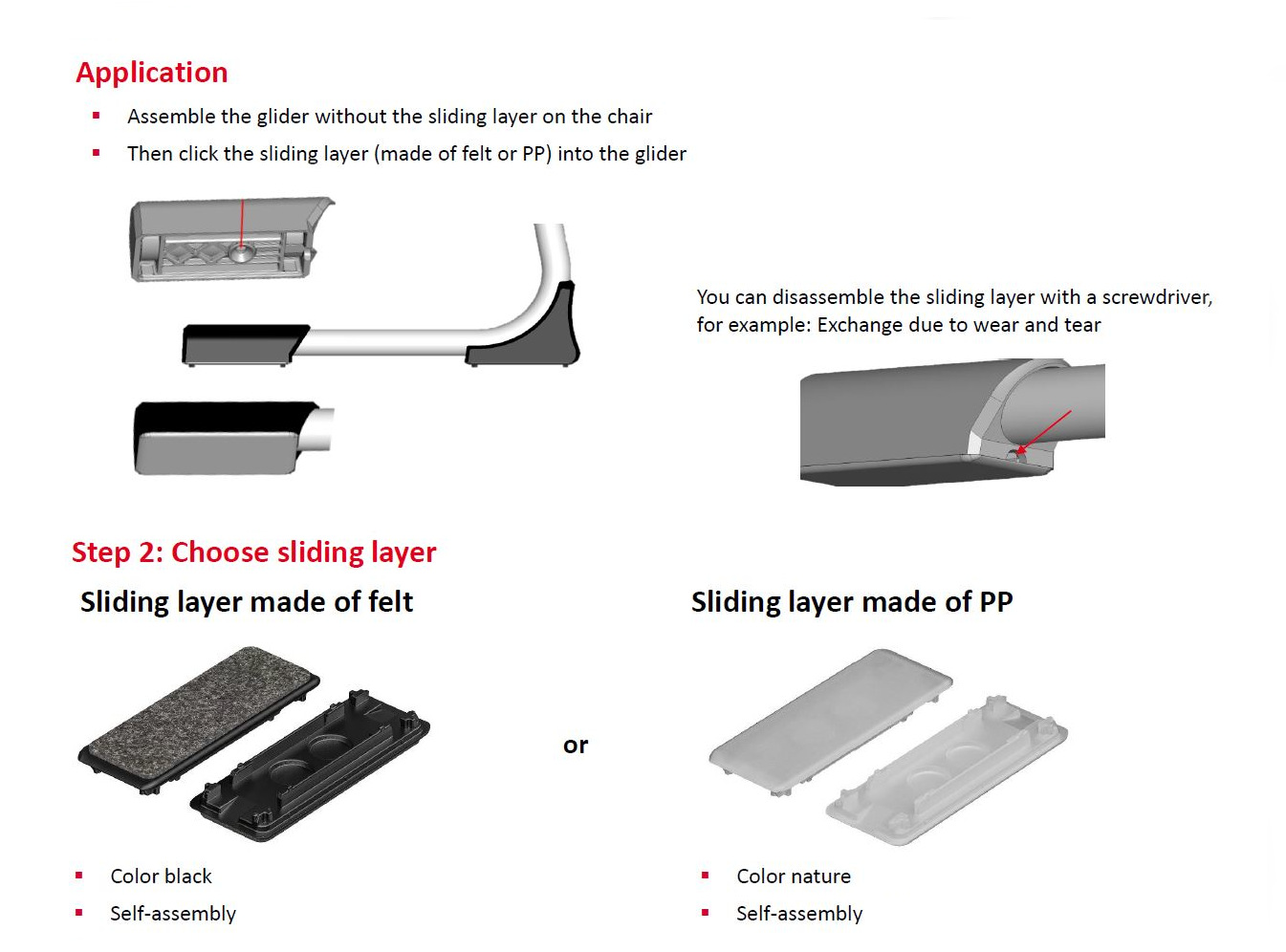

Easy Application:

• Apply the glider without the sliding layer on the chair
• Then simply click the sliding layer (made of felt or PP) into the glider
• If required, the sliding layer is easily removed using a screwdriver

Please see the 'Fitting Instructions' under the Technical Data tab for more info.

Technical details:

• Tube OD: Ø22mm
• Length: 48mm
• Base height: 5.7mm
• Flat Base

We show standard colours & finishes where possible. However, custom colours & finishes may be available on request, subject to minimum order quantities and extended lead times. Contact sale for more information.
