PHAZE-A Power Module | 2 Gang, 2 Data, 1 HDMI, Multi-USB A+C Smart Charge

The PHAZE-A Power Module is a premium in-desk power and connectivity solution designed for modern offices, boardrooms, conference tables and collaborative workspaces. Featuring a sleek dual-sided flip-top access plate with an integrated under-desk cable management tray, the PHAZE-A combines power, data, USB charging and media connections into one compact, professional installation.

This configuration includes 2 x UK power sockets, 2 x RJ45 Cat6A data ports, 1 x HDMI, 1 x USB 3.0 data port, and a Smart Charge module with USB-A and USB-C fast charging, allowing users to connect laptops, monitors, mobile devices and peripherals from a single desktop access point.

The integrated USB Power Delivery (USB-PD) technology delivers significantly faster charging than conventional 5W USB ports, helping to charge compatible devices up to 70% faster. Supporting both USB Type-A and USB Type-C, the PHAZE-A is designed to accommodate both current and future devices.

Its low-profile design allows the lid to close neatly while cables remain connected, keeping workspaces tidy, organised and free from cable clutter. The suspended under-desk tray provides convenient cable routing and houses all power and media connections safely beneath the desktop.

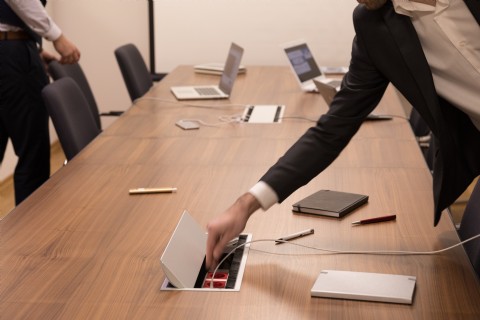

Ideal for commercial office furniture, meeting rooms, education, libraries and executive workstations, the PHAZE-A delivers a professional all-in-one desktop connectivity solution that enhances productivity whilst maintaining a clean, minimalist appearance.

Technical Details:

• 2 x UK Sockets 3.15A (Individually fused)
• 2 x Cat6A RJ45
• 1 x HDMI & USB 3.0
• 1 x USB Smart Charge Plate: A+C Type, PD 3.0 & QC 3.0
• 1 x 500mm lead to 3 Pole Connector (Wieland)
• 1 x 2M Mains Power Lead
• 2M USB, HDMI & Data leads: Included
• Top Access Plate: 447 x 175mm
• Cut Out Dimensions: 434 x 156mm
• Colours: Black or White, with Silver profile
• Power Module: Supplied with 2 sets of brackets, used to mount the module flush to the cable tray or to allow cables to pass under the module
• Unit complies with BS 5733

Typical Applications

The PHAZE-A is ideal for:

• Boardrooms
• Conference and meeting tables
• Executive desks
• Collaborative workspaces
• Hot desking environments
• Training rooms
• Schools, colleges and universities
• Libraries
• Commercial office fit-outs
• Home offices

Installation Information

• Approximate desktop cut-out: 434 x 156mm

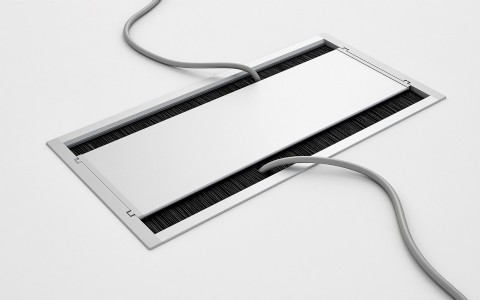

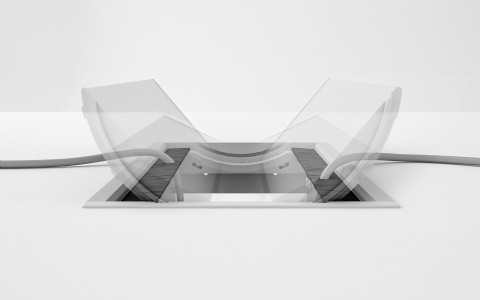

• Dual-sided access allows convenient use from both sides of the desk.
• Integrated under-desk tray keeps power and media cables organised.
• Modular click-in leads make installation, replacement and maintenance simple.

Important: Cut-out dimensions are provided in good faith from the latest available manufacturer information. We strongly recommend waiting until the unit has been received and checked before cutting your desktop or worktop. Please refer to the Technical Data tab for the latest dimensional drawings

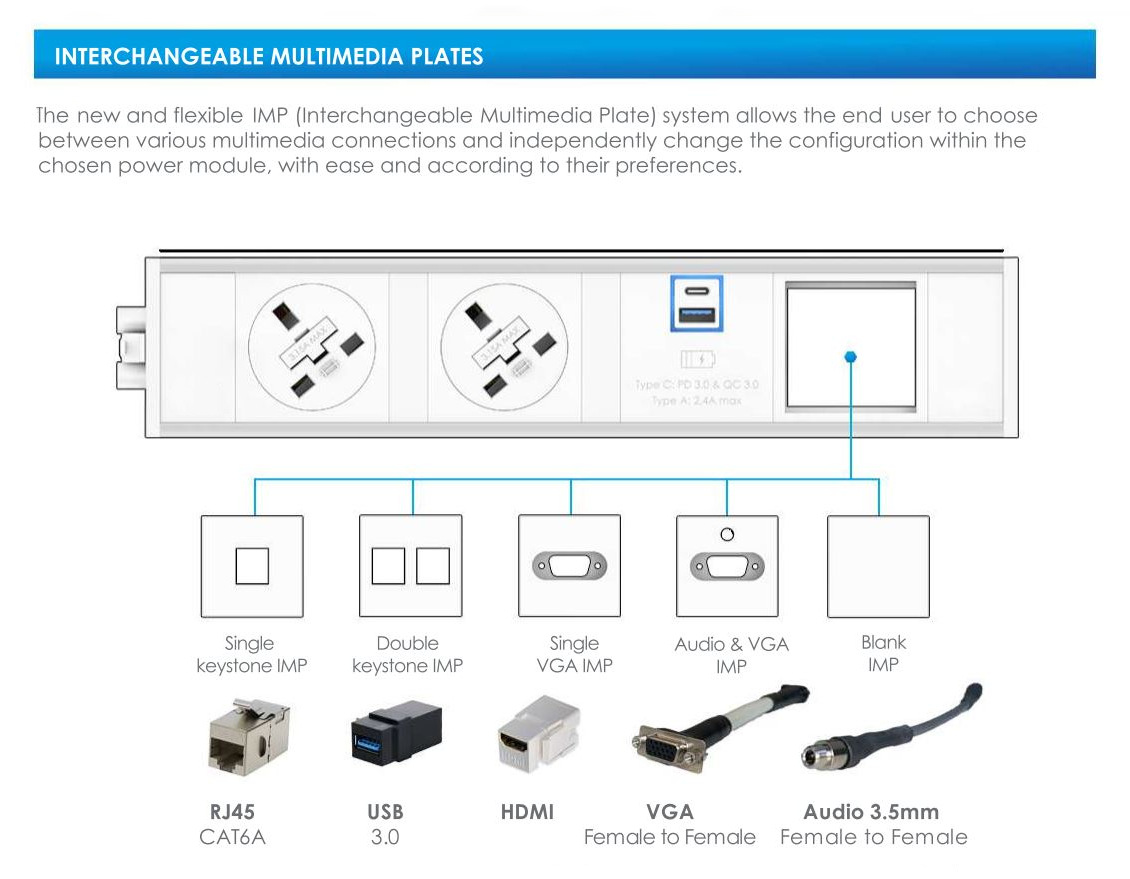

The power module is completely configurable with a choice of Socket types, USB charge socket and media connections. Custom configurations to include the following are available on request, subject to MOQs, set up fees and extended lead times. Please contact sales for more information**

• Socket Types: Type B, Type E, Type F, Type G, Type J, Type L, USB Charge
• Media Outlets: RJ45 Cat6A, USB 3.0, HDMI, VGA, Audio

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

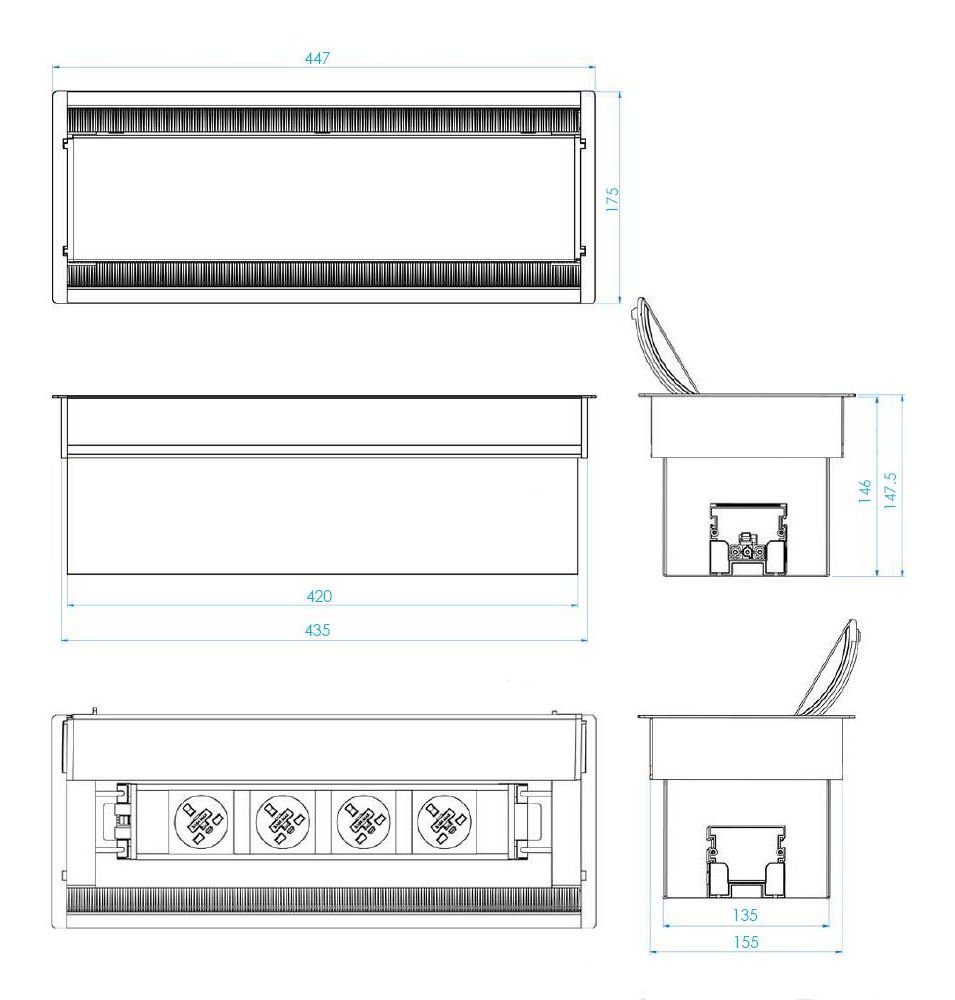

• Access Plate & Housing Dimensions

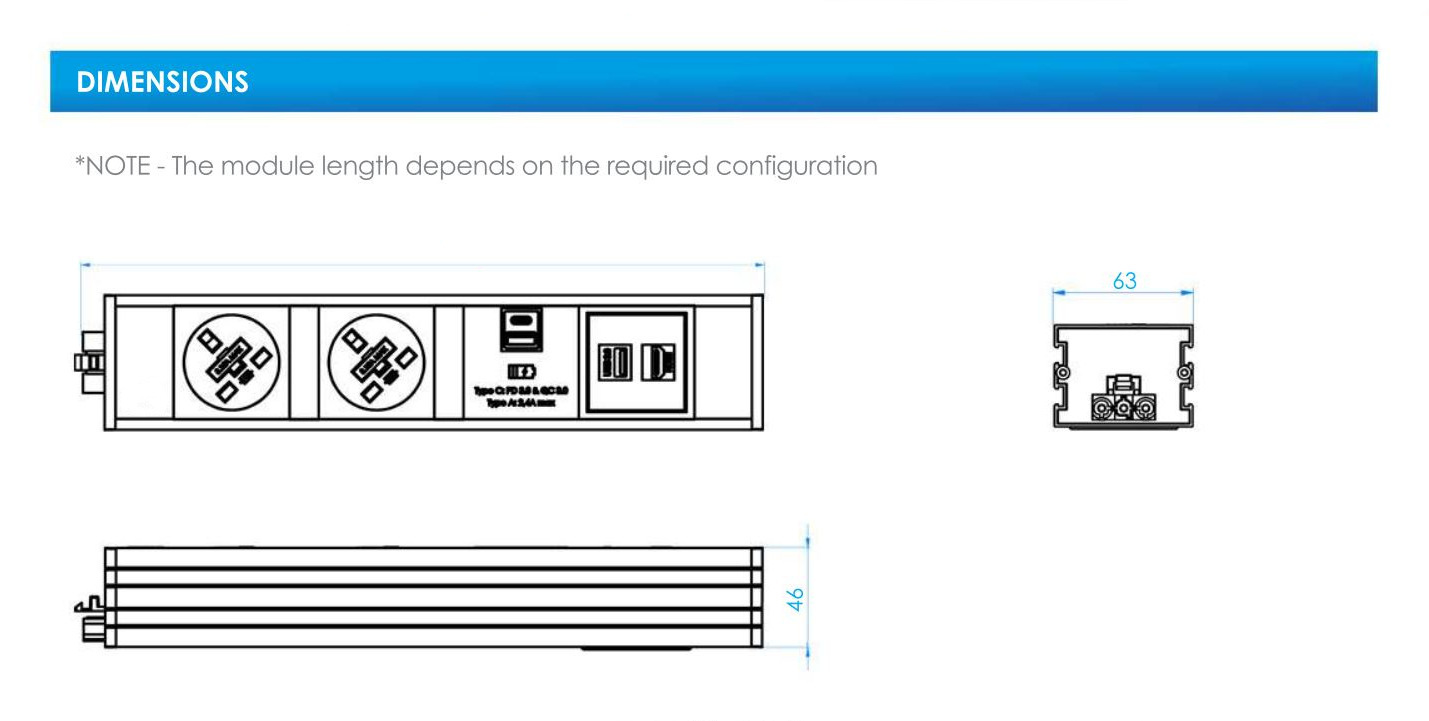

• Power Module Dimensions

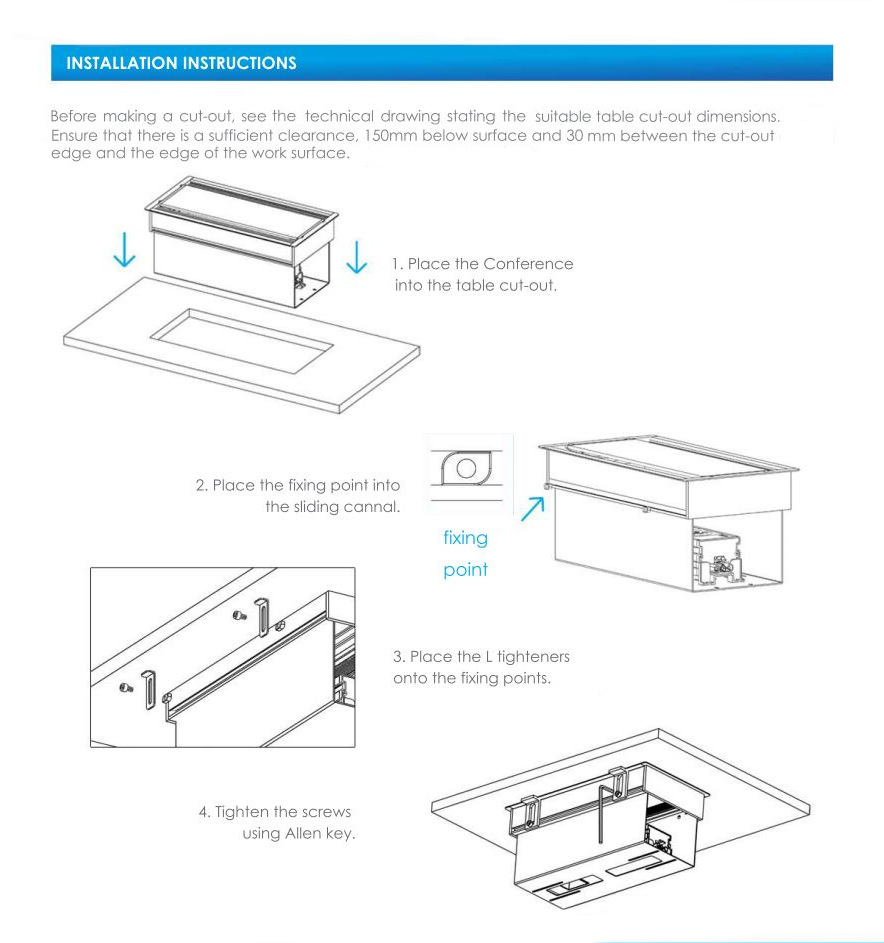

• Fitting Instructions
• Configurations
