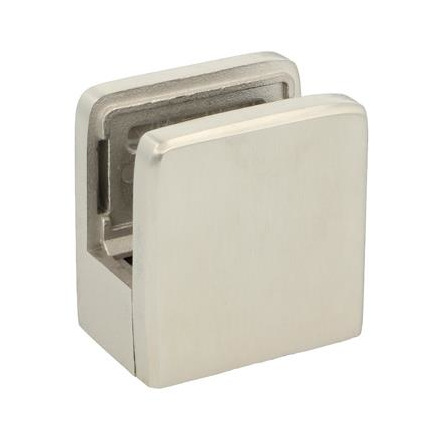

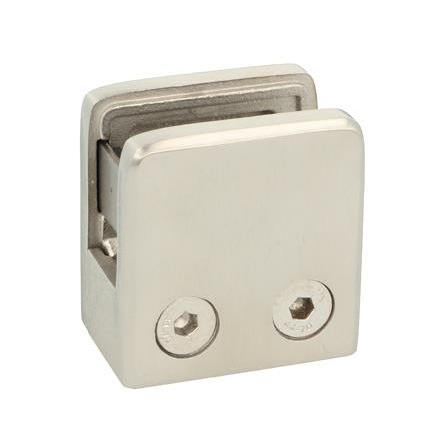

45x45x23mm Square Glass Clamp | with Safety Plate

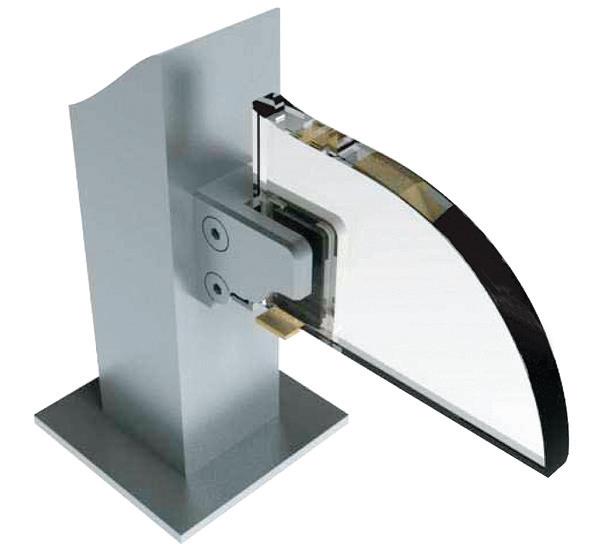

Square shaped glass clamps for indoor & outdoor balustrades & railings have a flat base and are designed to securely fit 8mm/10mm/12mm thick glass panels across a wide range of outdoor applications; including balustrades/glass banisters, partitions, windbreaks, glass balconies and glass railings.

The glass clamps are manufactured from durable 316 grade stainless steel which offers resistance against chemical corrodents (e.g. sea water), sulfuric acid solutions, chlorides, iodides and high temperatures. The glass clamps also have an elegant, brushed (matt) finish which produces a stylish yet structurally sound fitting that is perfect for outdoor use.

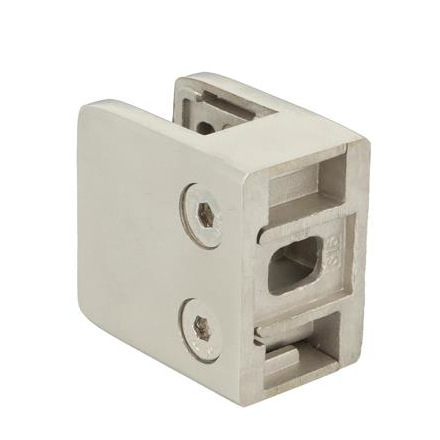

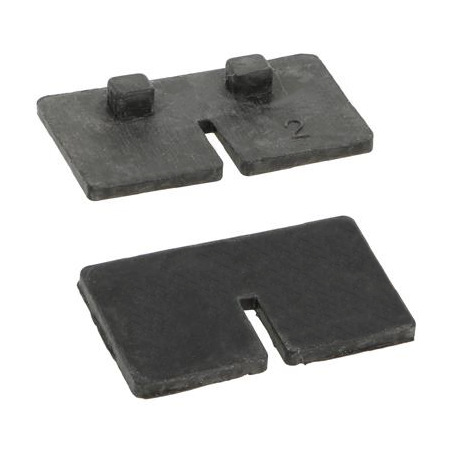

Each glass clamp is supplied with a safety plate (for installation of glass without safety pins / stopping the glass from sliding) and two EPDM inlays which cushion the contact area between the clamp jaw and the glass panel, holding the panel firmly in place and avoiding the need to make fixing holes in the glass.

Technical details:

• Size: 45 x 45 x 23mm
• Material & Finish: 316 Grade Stainless Steel, Brushed (Marine grade)
• Flat backed: For flat surface fixing (e.g. square posts & walls)
• Suitable for: Indoor & Outdoor use
• Glass Clamp Jaw: Supplied with Safety plate & EPDM cushions (Black)
• Glass panel: Secured & tightened with threaded fastening bolts (included)
• Not included: Allen key, mounting screws

For full dimensions, please see the 'Technical Data' tab.

*Please note: These fittings are designed for use with glass that has been tempered to withstand compression. Curved back options and cushions for 6.76mm, 8.76mm, 10.76mm & 12.76mm glass thicknesses are also available on request. Contact sales for more information.

We show standard finishes where possible. However, custom colours & finishes may be available on request, subject to MOQ’s and extended lead times. Contact us for more information.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

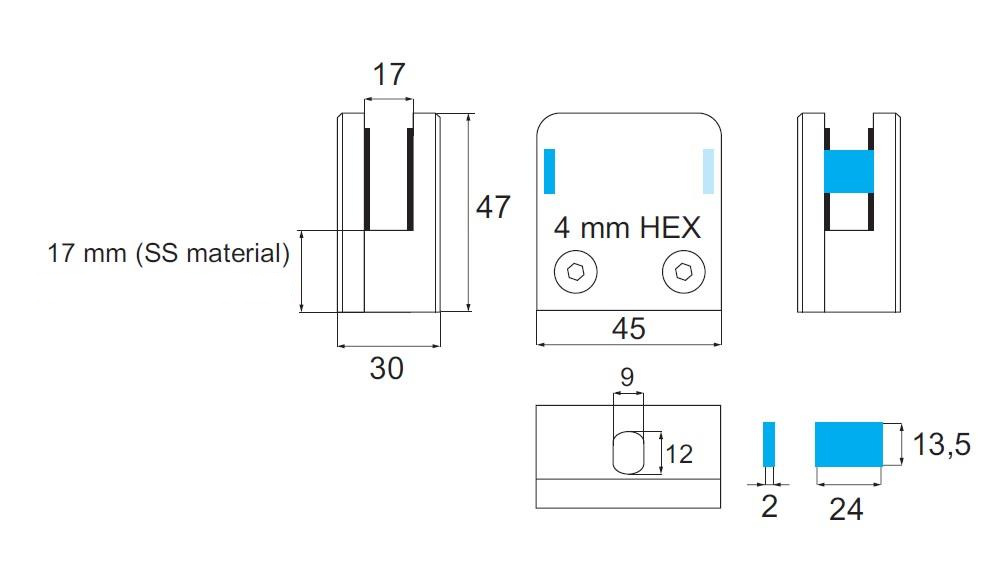

• Clamp Dimensions
