FIX Worktop Connector

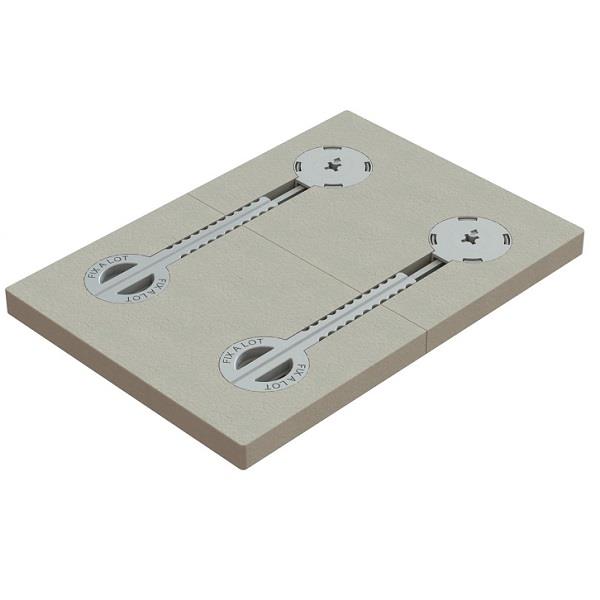

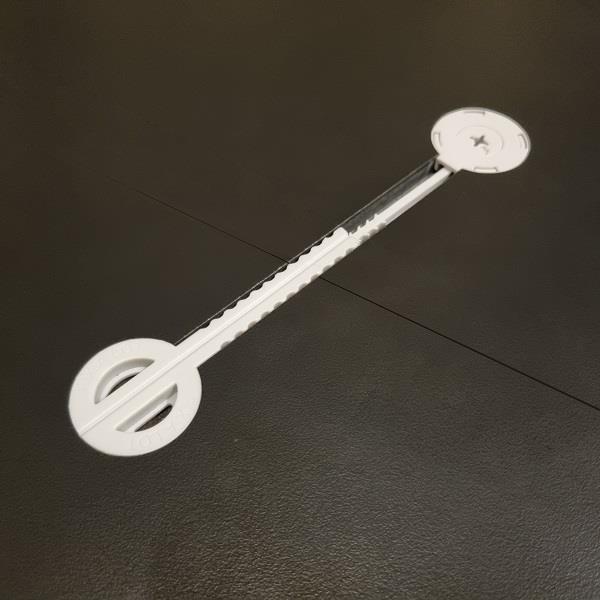

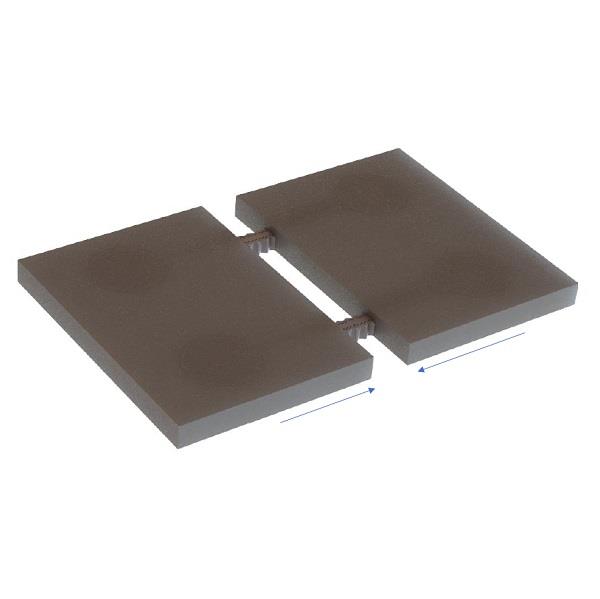

This unique worktop connector set is an innovative alternative to worktop connector bolts and consists of a single male and female part. The 2 parts connect securely via a ‘push’ or ‘drop’ connection, and lock 2 adjoining worktops together. The slim design of the FIX Worktop Connector makes it compatible with worktops/countertops as thin as 10mm.

To install this innovative worktop connector, all you need to do is router-fit the male and female components into the adjoining worktops, before placing the tops on the kitchen cabinets. You can then simply push or drop the connectors / tops together (depending if table tops are installed up against a wall or high kitchen) and tighten. For full fitting instructions, please see the ‘Technical Data’ tab, or watch the video above to see how it works!

The hardware is manufactured from POM (a.k.a acetal or polyacetal) which is well suited for sliding mechanisms. POM is a high-performance engineering polymer that displays a wide range of properties, including:

• High tensile strength
• High lubricity
• Natural rigidity
• Excellent dimensional stability
• Excellent ‘creep’ resistance (“creep” refers the tendency for a material to slowly deform if exposed to high levels of stress)
• Excellent wear & abrasion resistance
• Low moisture / water absorption
• Low coefficient of friction
• FDA approved

FIX Worktop Connector | Technical Details:

• For minimum 10mm panels
• Material: POM (Grey)
• Size: Size: ø35 x 127 x 9mm

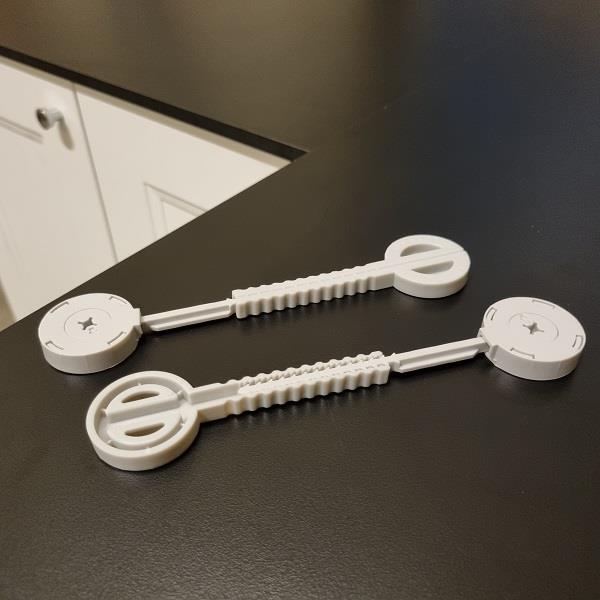

• Kit Contents: 1 Set = 1 Male + 1 Female Part
• Stays in the milling holes when inserted
• The length on the female part may be cut to size in case of wrong milling.
• May be inserted into the worktops before placing them in position on the kitchen cabinets.

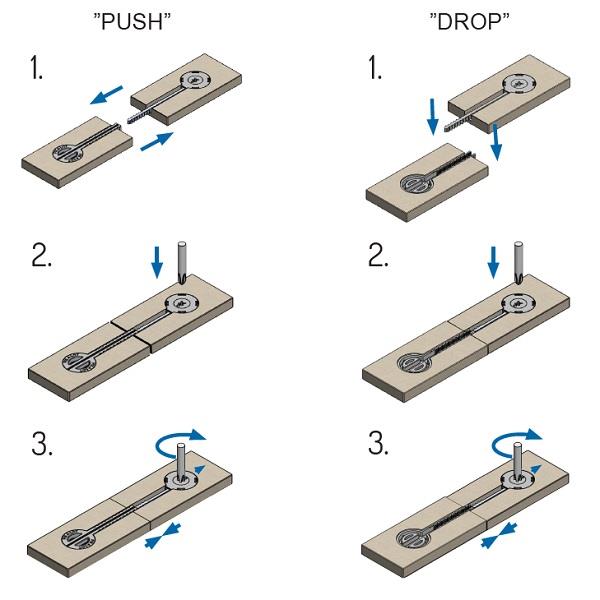

• Two installation methods, depending on construction of the kitchen: 'Push' if enough space & 'Drop' if panels are installed up against a wall or high kitchen cabinet
• Easy tightening by use of PH3 screwdriver.60.280

We list all sizes and finishes available as standard for these worktop connectors. However, if you require an alternative that is not listed, get in touch with the sales team today as custom units may be available on request, subject to minimum order quantities and extended lead times.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

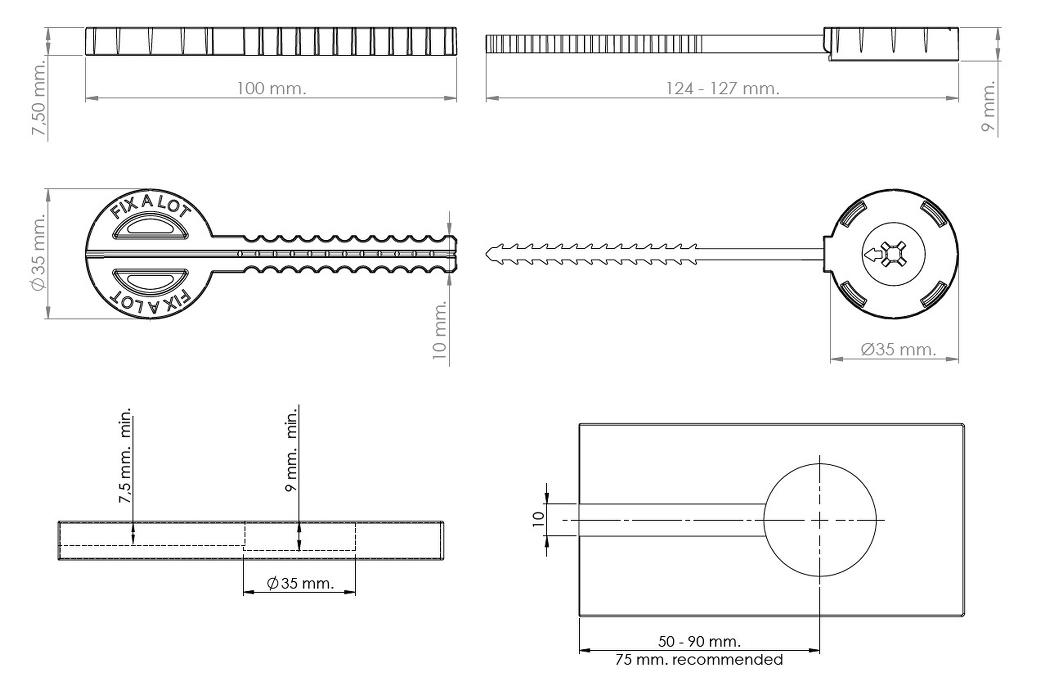

• Technical Drawing
