20mm & 3/4 Inch Square Connector for Table & Chair Legs

20mm metric or 3/4 Inch Imperial Chair Linking Clips and Table Leg Connectors for Square Tube and Box Section are used typically for keeping furniture in communal areas tidy and to prevent furniture scattering, with the aim of making public areas safer

Common applications would be schools, universities, conferences, exhibitions, furniture hire or rental, community centres, churches, village halls

stacking chairs | plastic chairs | banquet chairs |stackable tables

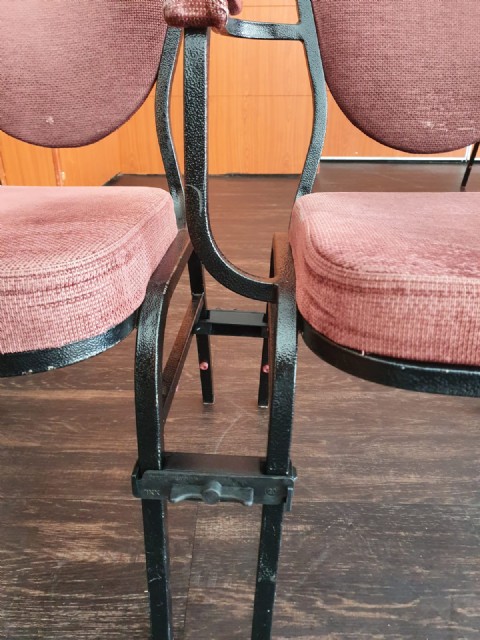

Designed with Health & Safety paramount, these are designed to keep chair or table legs linked together thanks to a clever lockable design.  One simple swivel of the locking system and you can release the lock, saving precious time when stacking away furniture.

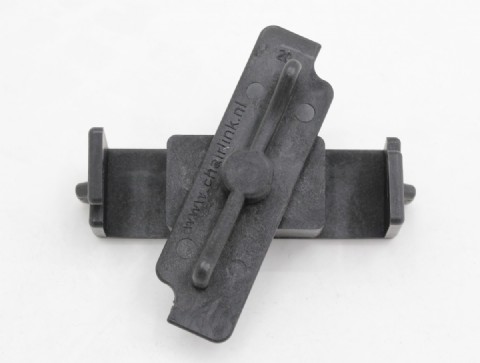

Made from super strong glass filled Nylon, these components won't distort and they're very simple to attach to the legs of 2 chairs or tables or in fact, any vertical tubes you want to run paralell, thanks to the simple but effective locking system.

Distance or spacing between two chairs with chair connector is 40 mm

The chair connector has been tested certified EU standard EN 14703 by Efectis Group and TÜV Rheinland Please read the full test report found within the Technical Data tab.

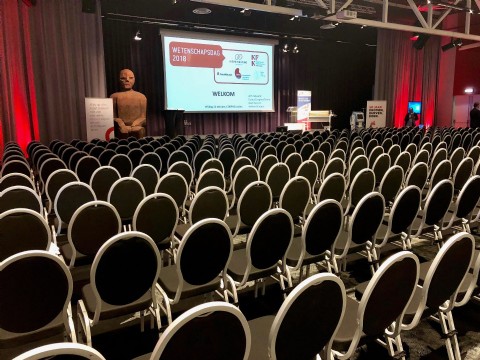

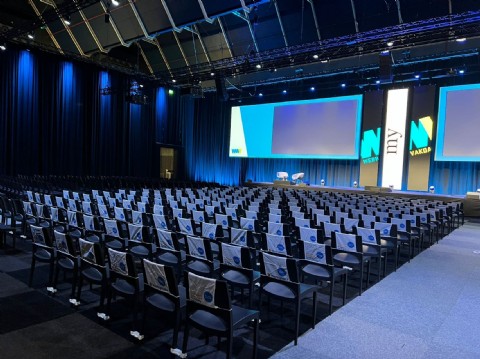

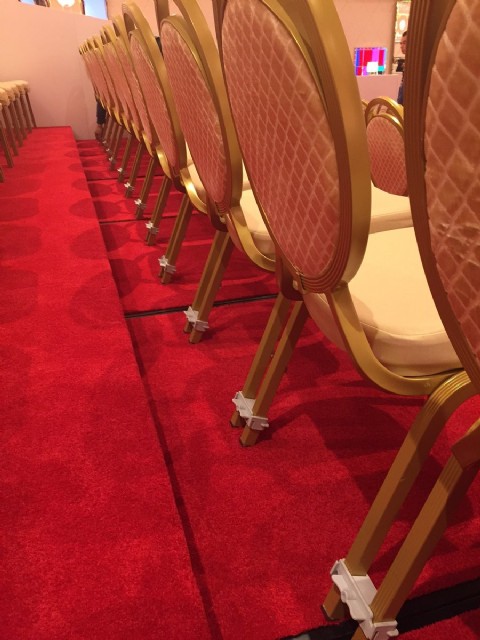

For the safety of visitors, chairs should be linked together in a room setup, where more than 100 chairs are being used, according to regulations applied gnerally throughout Europe, where it is mandatory to link chairs together if they are are used in a room setup.

These chair connectors are certified according to European norm anti panic EN 14703 and we have several test certificates for various types of chairs in combination with our chair connectors for square and oval frames.

Technical Information:

• Tube or pipe shape: Square
• External tube size: 20x20mm metric or 3/4x3/4" imperial
• Spacing or Gap: 40mm
• Material: Glass filled Nylon
• Fitting type: Lockable

Key Features:

• Row alignment and spacing
• Safety and compliance
• Straight or curved layouts
• Multiple sizes and chair leg profiles
• Quick installation and removal
• Designed primarily for indoor use but can be used outside but not UV stabilised as standard
• Suitable for stacking or folding chairs

Useful Accessories & Related Products

• Tube Insert Feet for Round Chair Legs
• Tube Insert Feet for Oval Chair Legs
• Tube Insert Feet for Square Chair Legs
• Tilt Glides for Angled Chair Legs
• Saddle Feet & Skid Feet for Chair Legs
• Stacking Buffers and Pegs for Chair Frames

We have lots of furniture components on our website including Connectors for Timber and Panels but If you don't see what you need, then you can use our live chat facility for assistance, or contact us here.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

• Efectis Material Report
• TUV Rheinland Report
