OPLA FOLDING Pull Out Shelf Frame | Extends 500mm

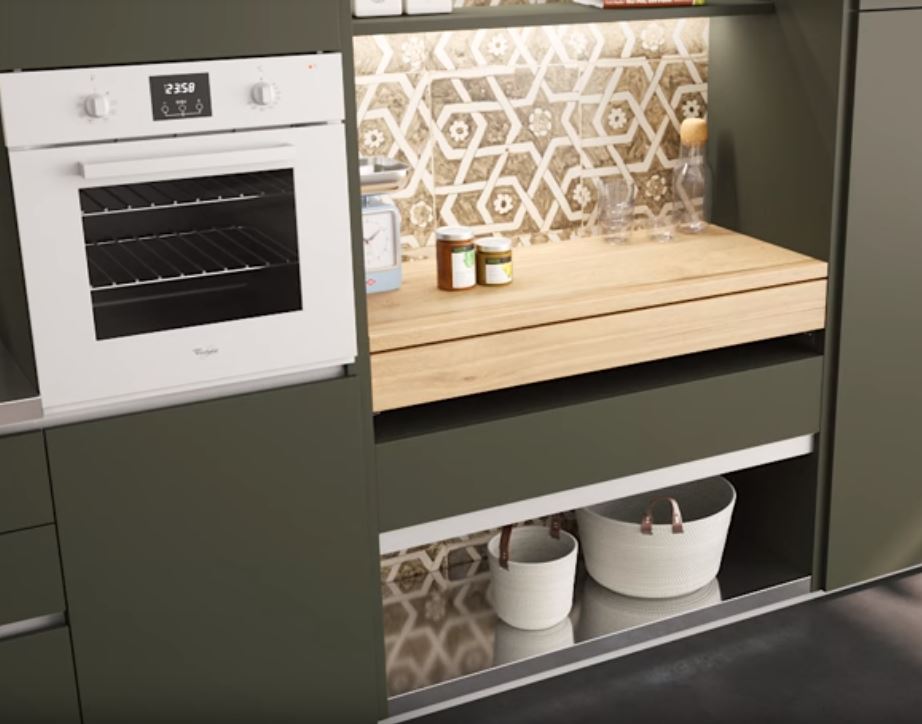

The OPLA FOLDING pull-out shelf frame is a premium, space-saving solution designed to instantly add extra worktop, desk, or tabletop space in kitchens, offices, and small living areas. Part of the Transformables range, OPLA FOLDING allows a shelf or surface stored beneath a fixed unit to be pulled out and positioned flush with the shelf above, creating a practical extension in seconds.

This frame-only system allows you to fit your own top, ensuring a seamless match with surrounding shelves or countertops. Perfect for compact kitchens, kitchenettes, utility rooms, offices, playrooms, narrowboats, caravans, and mobile homes, it provides extra workspace without taking up permanent floor space.

How OPLA FOLDING Works

• Pulls out smoothly from beneath a shelf or cabinet
• Easy-up mechanism allows effortless operation
• The shelf sits flush with the unit above when extended
• Folding design and included brackets conceal the mechanism for a clean, modern look
• Retracts neatly when not in use

This makes it ideal for spaces where both style and functionality are critical.

Available Widths

• 600 mm
• 900 mm
• 1200 mm

Each frame is supplied to suit the selected width, giving installers flexibility.

Technical Overview

• Minimum cabinet/drawer depth required: 540 mm
• Extension length: 500 mm
• Sliding mechanism: Aluminium-on-aluminium
• Frame finish: Inox Bronzino
• Recommended top thickness: 18 mm (wood), compatible with shelf thickness 15–35 mm
• Load capacity: 40 kg (evenly distributed)
• Packaging: Individually boxed and compact

(Full dimensions, installation instructions, and contents lists are available in the Technical Data tab.)

Key Features

• Space-Saving Design: Ideal for small kitchens, offices, and compact rooms
• Flush-Finish Pull-Out: Extends smoothly and retracts discreetly
• Concealed Mechanism: Brackets hide hardware for a clean aesthetic
• Frame-Only Flexibility: Allows you to fit your own top to match your surroundings
• Easy-Up Operation: Smooth and user-friendly
• Durable Aluminium Construction: Lightweight, strong, and corrosion-resistant

Installation Guidance

Professional installation by a carpenter or kitchen fitter is recommended. Installers should review the installation overview video before fitting. Printed instructions are supplied, with additional technical documentation available in the Technical Data tab.

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: Can the bar between the runners for the folding pull out shelf be cut and is it possible to be able to screw into the cut end?

A: Hello. Yes, in theory the cross bar can be cut down to reduce the width but I’m afraid this isn’t something we are able to advise on. Please consult with a professional fitter, who will be able to assist further. Please also be aware that any modifications will invalidate the warranty. Kind regards, BOX15

• Assembly Instructions

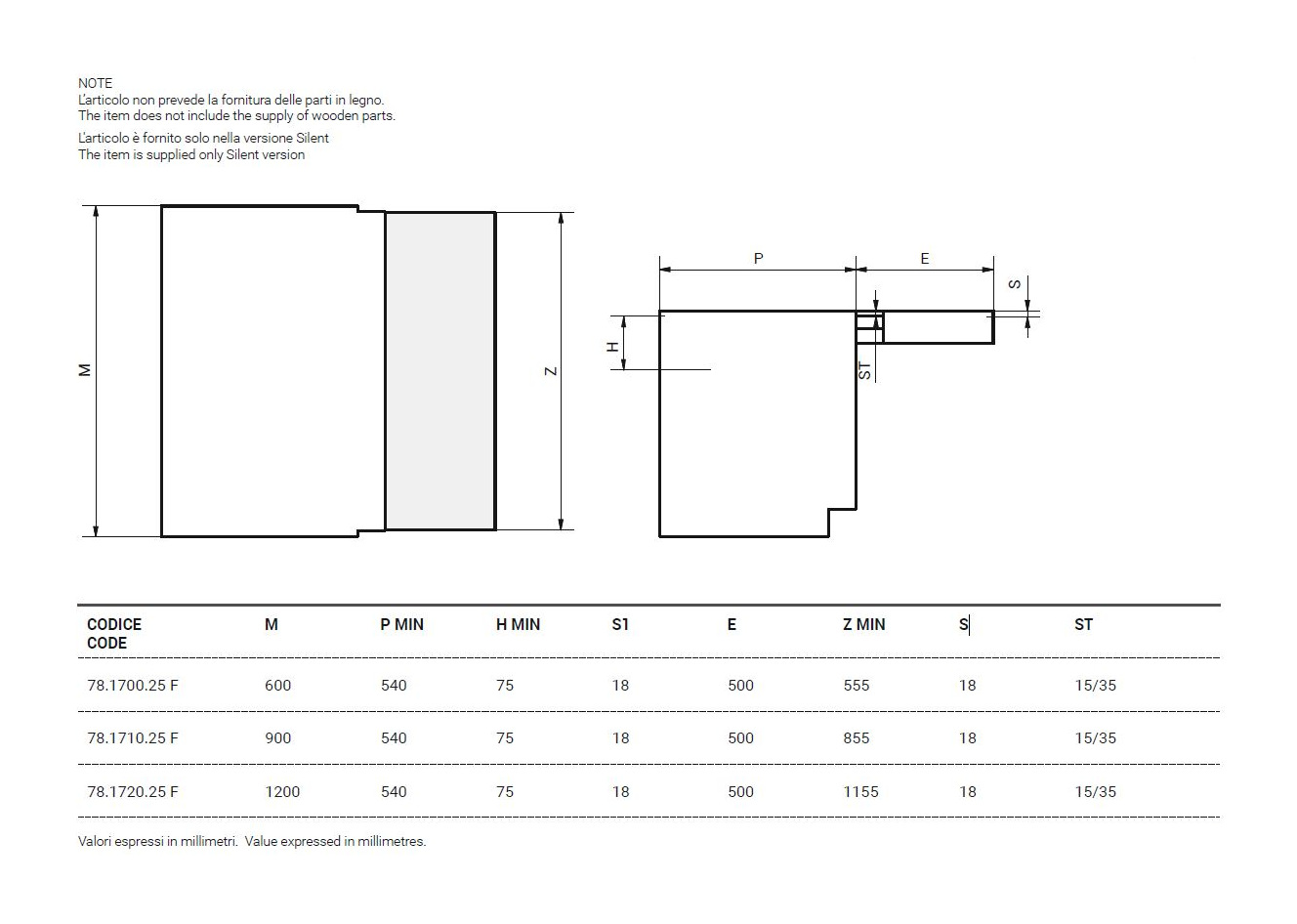

• Dimensional Drawing

 Transformables Range Brochure
