X110 PEAK Meeting Table Kit with 1100mm Cable Tray

The PEAK Meeting Table Kit combines two pairs of X110 self-supporting table legs with an 1100mm central metal cable tray, giving you the essential framework for creating a contemporary meeting, conference or executive table. Simply add a suitable table top to complete your table.

Designed for commercial furniture manufacturers, office fit-out companies and installers, this kit provides a practical beam-free table solution with integrated central cable management. The X110 legs are self-supporting, so no connecting beams are required, while the 1100mm metal cable tray provides additional support and a high-capacity space for managing power and data cables beneath the table.

The kit is supplied as a frame and cable management system, allowing you to use your own table top or contact us about having a top manufactured and prepared specifically for the frame.

Kit Includes

• 2 x pairs of X110 PEAK self-supporting table legs
• 1 x 1100mm X110 metal under desk cable tray

Key Features

• Complete PEAK meeting table frame kit
• Includes 4 self-supporting X110 table legs
• Includes 1100mm central metal cable tray
• No connecting beams required
• 718mm high table legs
• Premium Italian-designed and manufactured frame system
• Suitable for meeting, conference and executive tables
• Designed for thick table tops
• 35mm+ table top thickness recommended
• Central cable tray provides high-capacity cable management
• Cable tray can add additional support and help reduce top flexion
• Recommended for tables approximately 1000–1400mm wide
• Recommended for tables approximately 1800–2600mm long
• Frame-only or complete table-top options available
• Ideal for office furniture manufacturers and commercial fit-out projects

Technical Specifications

• Frame: X110 PEAK self-supporting table legs
• Leg quantity: 2 pairs / 4 legs
• Leg height: 718mm
• Cable tray: 1 x 1100mm PEAK metal cable tray
• Cable tray width: 525.43mm
• Cable tray depth: 91.5mm
• Table top: Not included as standard
• Recommended table top thickness: 35mm+
• Recommended table width: 1000–1400mm
• Recommended table length: 1800–2600mm
• Construction: Powder-coated metal
• Application: Meeting tables, conference tables, boardroom tables and executive desks

Self-Supporting Meeting Table Frame

The PEAK kit is based around the X110 self-supporting table leg system, eliminating the need for connecting beams between the legs. This creates a clean, open space beneath the table while simplifying the construction of the finished meeting table. The four X110 legs provide the main table support, while the central 1100mm cable tray can add further stability and help minimise flexion through the centre of the table top.

Central 1100mm Cable Tray Included

Unlike a basic table frame kit, the PEAK Meeting Table Kit includes a large 1100mm metal cable tray as standard. Positioned centrally beneath the table, the tray provides a generous area for routing and storing power cables, data leads, extension cables and other electrical equipment. The extra-wide cable tray is particularly useful for meeting and conference tables where multiple users may require access to power, USB charging and data connections. It also helps keep cables contained beneath the table, creating a cleaner and more professional installation for commercial office environments.

Recommended Table Sizes

For a standard four-leg configuration, the PEAK kit is recommended for table tops approximately:

• 1000–1400mm wide
• 1800–2600mm long

Other dimensions and table configurations may be possible using the X110 system. Please contact us if you require a bespoke solution or advice for a specific project.

Add Your Own Table Top

The PEAK kit is supplied without a table top, making it particularly suitable for office furniture manufacturers and fit-out companies that already have their own tops or preferred materials.

If required, we can also supply a suitable wooden table top and prepare it specifically for the X110 frame. We can template the top with the correct fixing holes and metal insert nuts, helping to make assembly faster and more straightforward. We also offer machine cut-outs for BPF-supplied desk grommets, in-desk power modules and brush-lined access flaps, allowing power and connectivity products to be integrated neatly into the finished meeting table.

Contact us for pricing and information about made-to-order table tops for the PEAK frame system.

Ideal for Commercial Meeting Tables

The PEAK Meeting Table Kit is a convenient solution for manufacturers, office furniture suppliers and commercial fit-out contractors looking for a complete table frame and cable management system. By combining four self-supporting legs with a high-capacity central cable tray, the kit provides the structural foundation and cable management required to create a professional meeting or conference table while leaving you free to specify the table top to suit your project.

  There are currently no reviews for this product. Why not submit a review?

Frequently asked questions about this item are shown below. Do you have a question? Submit FAQ

Q: Would it be possible to be sent some technical data and drawings regarding this product as there doesn't appear to be any online

A: Hello. We have now added technical drawings for the X110 legs and X110 cable tray, which can be found in the technical data tab. Kind regards, BOX15

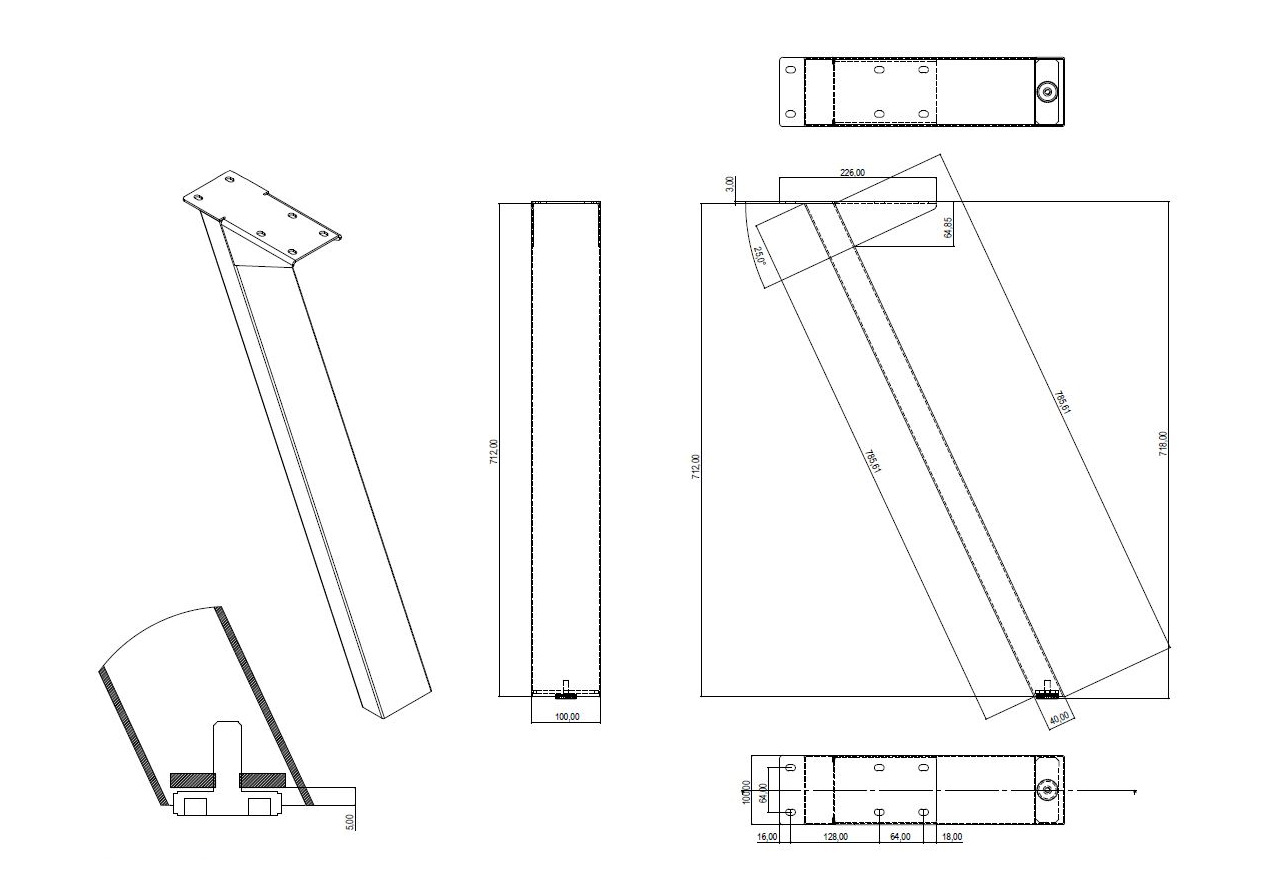

• X110 Table Legs - Technical Drawing

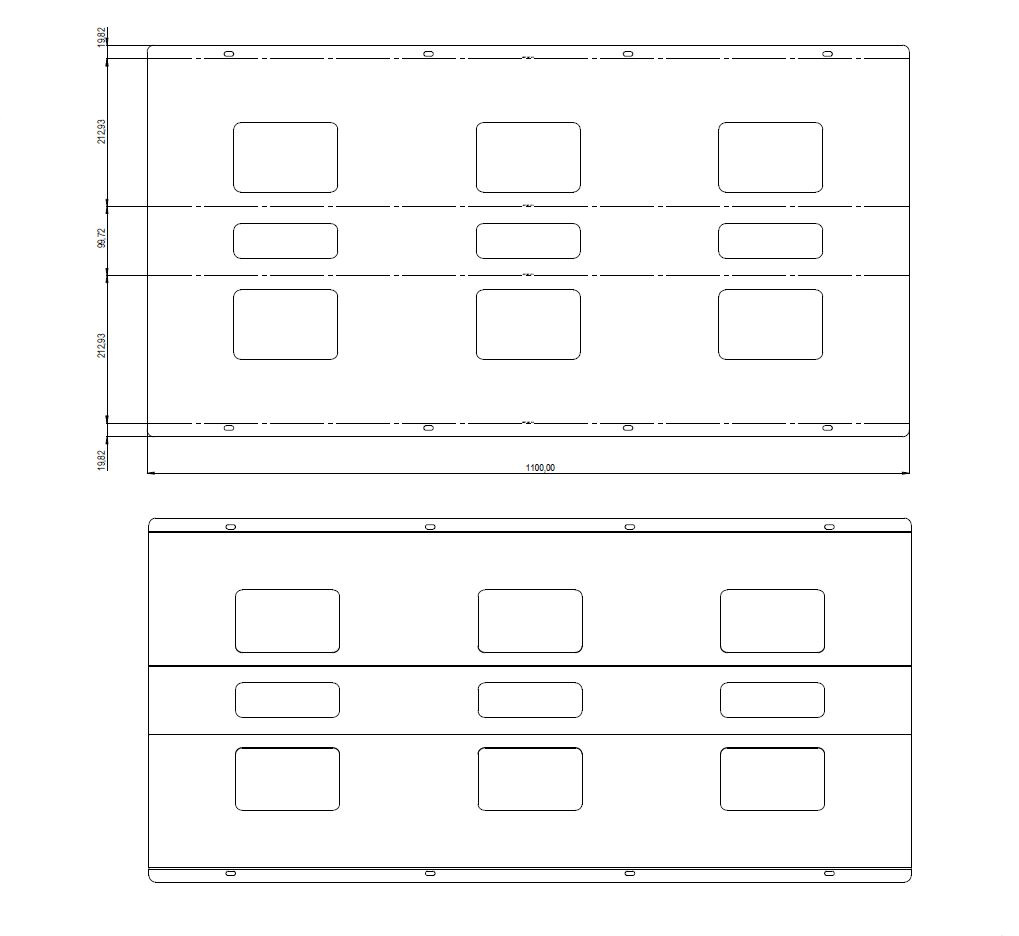

• X110 Metal Cable Tray - Technical Drawing
