Electric Sit Stand Desk Frame | Dual-Motor | 1100-1900mm

We have a huge range of Desks and Wooden Tops but sell them separately because a lot of our trade customers are Office Furniture manufacturers and Fit Out companies, who have their own Tops lined up.  If you need a Top for this Desk, then buying from us would mean we'll template it specifically to suit your desk so you'll have proper fixing holes and metal insert nuts, which will result in hassle free assembly!

In addition, if you add any Desk Grommets, In-Desk Power units or Brush Lined Access Flaps to your order - then we'll cut holes free of charge at the mill, to accommodate whatever you've bought (as long as it's from us of course).  So Click here to see our range of Wooden Desk & Table Tops or scroll further down the page, where you'll usually find other products that woudl work with this desk.

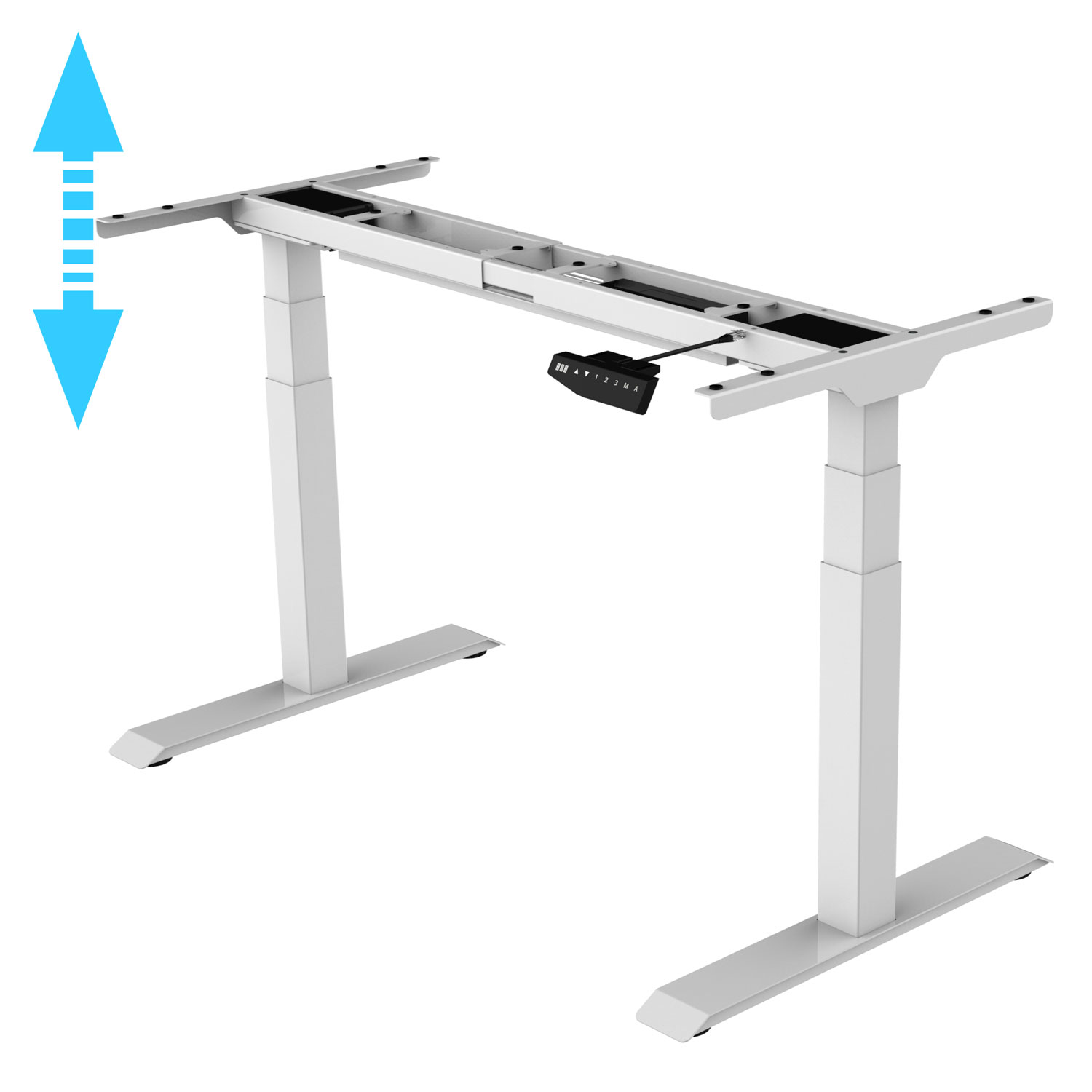

This height adjustable desk frame has an ergonomic design that allows users to alternate between sitting and standing throughout the day.

Using an electronically operated mechanism, this sit stand desk frame provides a smooth and effortless height adjustment from 580 – 1230mm which allows you to set your optimal working height with ease. The frame also has a telescopic beam with a width ranging from 1100 – 1900mm, allowing for a desktop width of 1100 – 2200mm & depth of 600-800mm.

Electronic Height Adjustment

The height adjustment is operated electronically using the handset provided. This handset has ‘up’ and ‘down’ function keys, allowing you to easily adjust the tabletop to your preferred height.

The handset also has 3 memory keys which allow you to find and save up to 3 different heights. Once you’ve saved your desired height, you can then simply press the numbered key and the desk will automatically adjust to the saved position.

To operate the height pre-sets; when the desk reaches your desired height, touch button “M” then “1” or “2” or “3” to set. For example, “1” for your reading position, “2” for writing position, and “3” for your standing position. When you want to change from reading position to standing, simply press “3”.

Anti-Collision Detection

The height adjustable mechanism of this sit stand desk also features super sensitive, dual-sensor anti-collision detection; preventing the risk of injury and physical damages by the rising/lowering desktop and frame.

There are two sensors: one for electric current and one gyro for levelness, and there are 3 sensitivity parameters (upward, downward, and levelness /gyro), each with 9 level settings. Effectively you can have 27 different anti-collision sensitivity settings.

Sit-Stand Timer

The remote control/display of this comprehensive sit stand desk frame also features a useful timer, which has been included to help users break up long periods of sitting/standing.

To operate this feature, simple press button “A” on the keypad which will set a count-down timer of 45min (you may also use UP and DOWN button to increase/reduce). Once the time is up, it will alert you to change position.

Sit-Stand Desks | Health Benefits

It is recommended that you take a short breaks from sitting throughout the day, as sitting in the same position for prolonged periods of time can be bad for your health.

Sit stand desks, however, allow you to vary your position throughout the day and alternate between sitting and standing, which can also help to prevent and alleviate neck and lower back pain.

Studies have also shown that utilizing the sit-stand feature and alternating between sitting and standing can even improve circulation, concentration, productivity and creativity.

Technical Details:

• Height Adjustable Range (3-stage square columns): 580-1230mm (+25mm for desk-top).
• Telescopic Frame: 1100-1900mm
• Compatible Desktop (Width x Depth): 1100–2200mm x 600-800mm
• Max Lift Capacity: 125 KG / 275 lbs
• Max Speed: 38mm/s
• Anti-Collision: Dual sensors Gyroscope and electric current ammeter
• Operating Noise: < 50 dB
• Remote Control/Display: 3 pre-set desk height memory & alert timer
• Material: Heavy duty steel construction
• Clean Finish: All screws hidden from view
• Installation: Quick & easy assembly, designed with simplicity in mind
• Frame Only: Top not included and must be purchased separately. Please see our range of tops HERE
• Self-Tapping Screws (for top fixing): Included
• Warranty: 5 years

We list the options and colours available as standard. However, if you require a colour that is not listed, get in touch with the sales team today as custom units may be available on request, subject to minimum order quantities and extended lead times.

   Why not submit your own review?

Submitted by Graham A (10/08/2021)
Didn't come with instructions but can be downloaded from Box15 web page

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	5.0 / 5

There are currently no FAQs for this product. Do you have a question? Submit FAQ

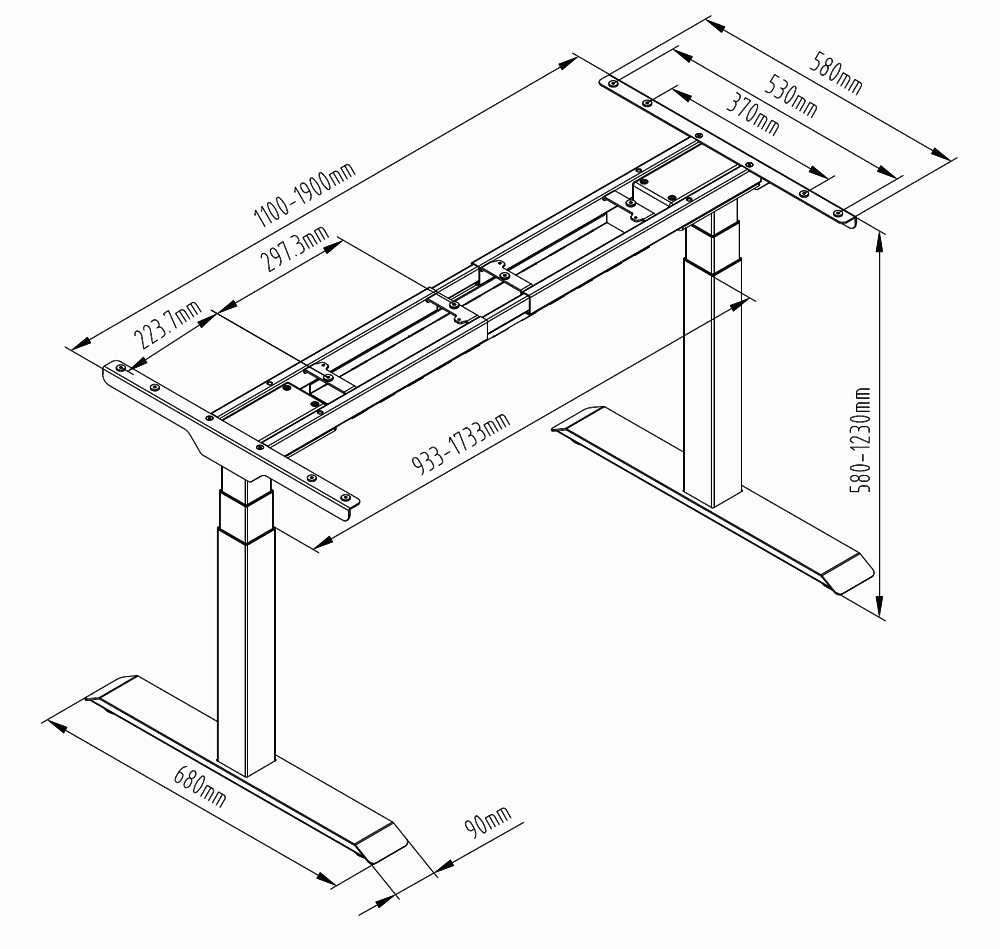

• Dimensional Drawing
