800x1100-1400mm Height Adjustable Sit-Stand Desk Frame | Gas Spring

We have a huge range of Desks and Wooden Tops but sell them separately because a lot of our trade customers are Office Furniture manufacturers and Fit Out companies, who have their own Tops lined up.  If you need a Top for this Desk, then buying from us would mean we'll template it specifically to suit your desk so you'll have proper fixing holes and metal insert nuts, which will result in hassle free assembly!

In addition, if you add any Desk Grommets, In-Desk Power units or Brush Lined Access Flaps to your order - then we'll cut holes free of charge at the mill, to accommodate whatever you've bought (as long as it's from us of course).  So Click here to see our range of Wooden Desk & Table Tops or scroll further down the page, where you'll usually find other products that woudl work with this desk.

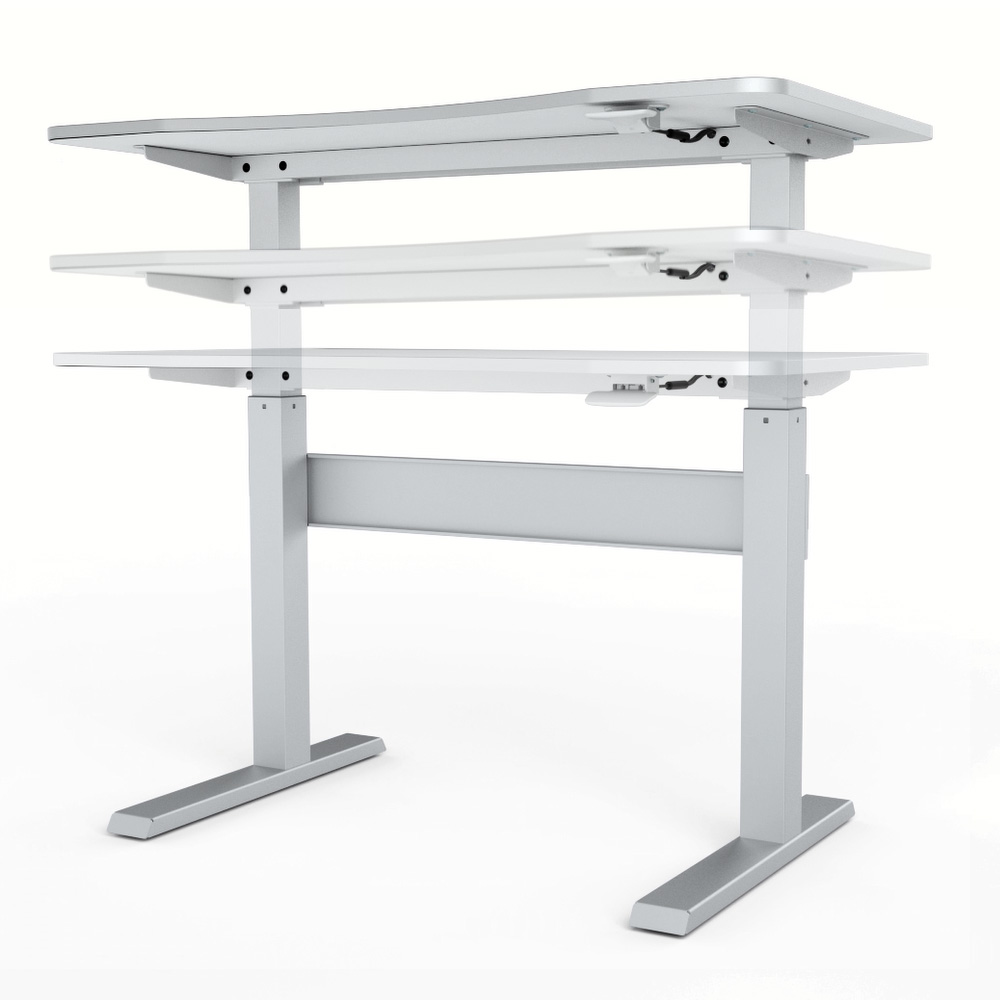

This height adjustable desk frame has an ergonomic design that allows users to alternate between sitting and standing; allowing users to find their optimal height with a simple lever adjustment.

The gas spring assisted mechanism offers a smooth and effortless pneumatic height adjustment from 722 - 1132mm and has a lifting power of 15kg (assuming top weight 17kg); the actual total lifting power of the gas spring is 32kg.

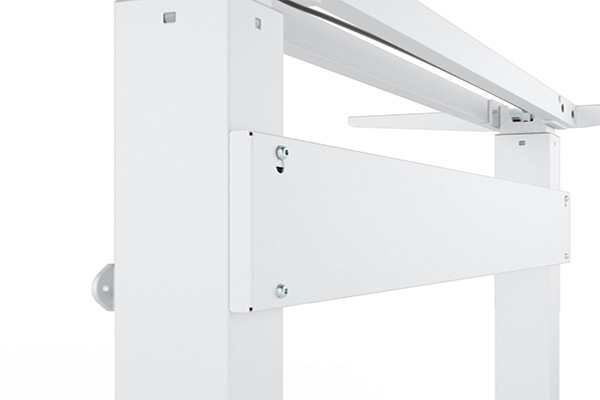

Stabilising Bar/Panel

Due to the design of height adjustable desks, they tend not to be as stable as commercial office desks. Consequently, stability has been factored into the design of this height-adjustable desk frame; the frame is made from heavy-duty steel and supplied with a stabilising panel which fixes across the back of the legs.

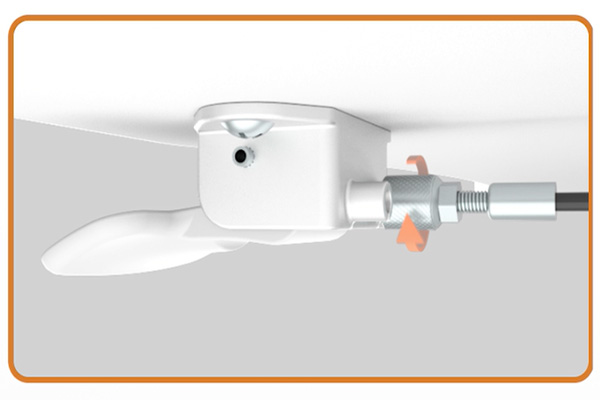

Height Adjustment Lever

The height adjustment is operated by lifting the lever up (toward the desktop). The lever is connected to the gas springs via a brake cable, which can be tightened or loosened.

Sit-Stand Desks | Health Benefits

It is recommended that you take a short break from sitting every 30 to 60 minutes, as sitting in the same position for hours at a time can be bad for your neck and back.

Sit stand desks, however, allow you to vary your posture throughout the day and alternate between sitting and standing, which can help to prevent and alleviate neck and lower back pain.

Studies have also shown that utilizing the sit-stand feature and alternating between sitting and standing can also improve concentration, productivity and creativity.

Technical Details / Specifications

• Quick & easy pneumatic height adjustment: from 722 up to 1132mm
• Frame dimensions: 1050 x 450 x (722-1132)mm
• Gas spring lifting power: total lifting power (excluding top) 32kg
• Compatible worktop width: 1100-1400mm
• Compatible worktop depth: 500-800mm
• Green & Ergonomic: health & environment friendly

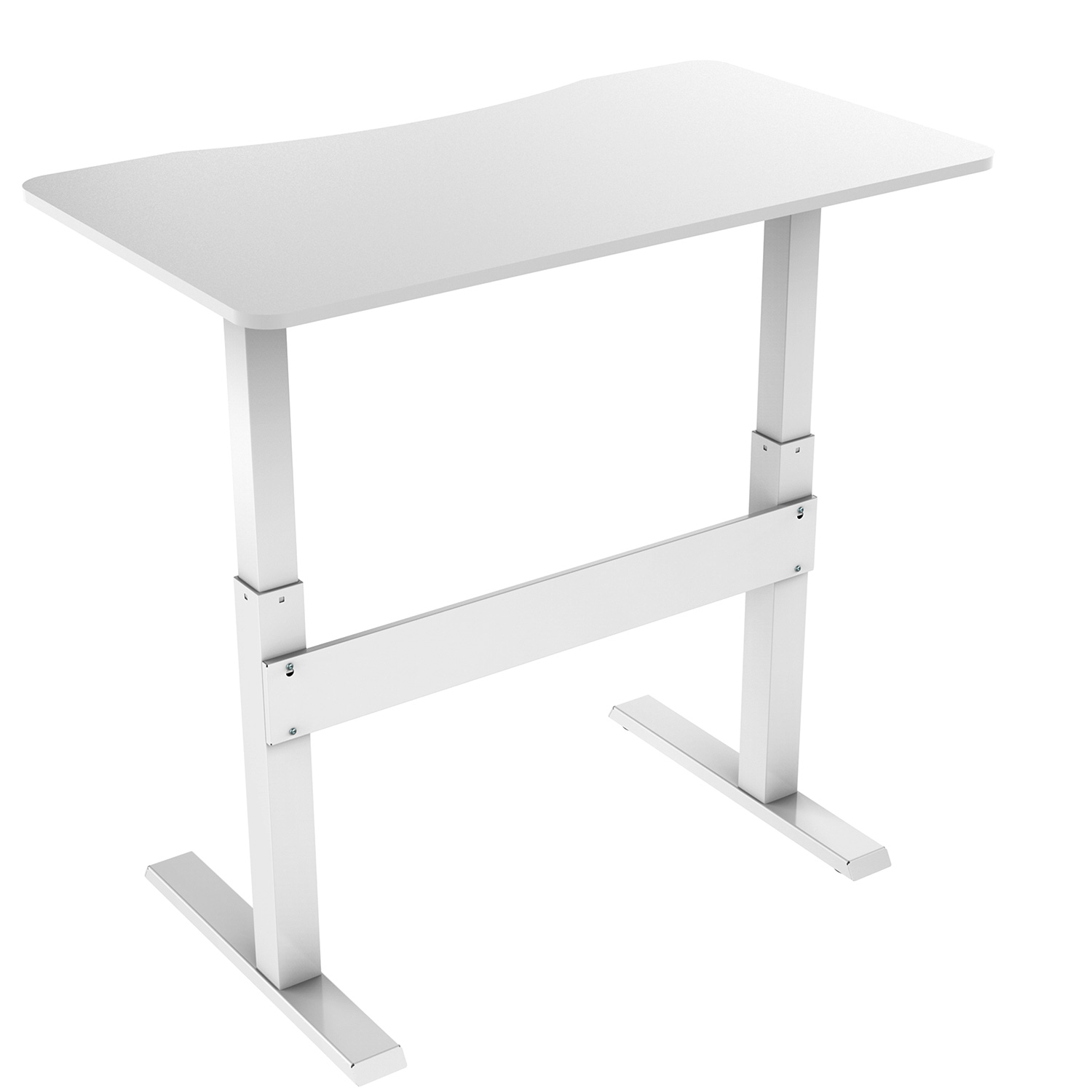

Customise with your own worktop

The height adjustable desk frame measures 1050 x 450 x (722-1132)mm. However, this listing is for the frame only and does not include the top.

All you need to do is add a top of your choice with a width of 1100 - 1400mm and depth of 500 - 800mm. Alternatively, for home working use you can opt for a small (1200 × 675 scalloped) top or medium (1400 × 800 rectangular) top.

We offer a wide range of wooden desk tops which you can view online HERE.

We list the colours available as standard. However, if you require a colour that is not listed, get in touch with the sales team today as custom units may be available on request, subject to minimum order quantities and extended lead times.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

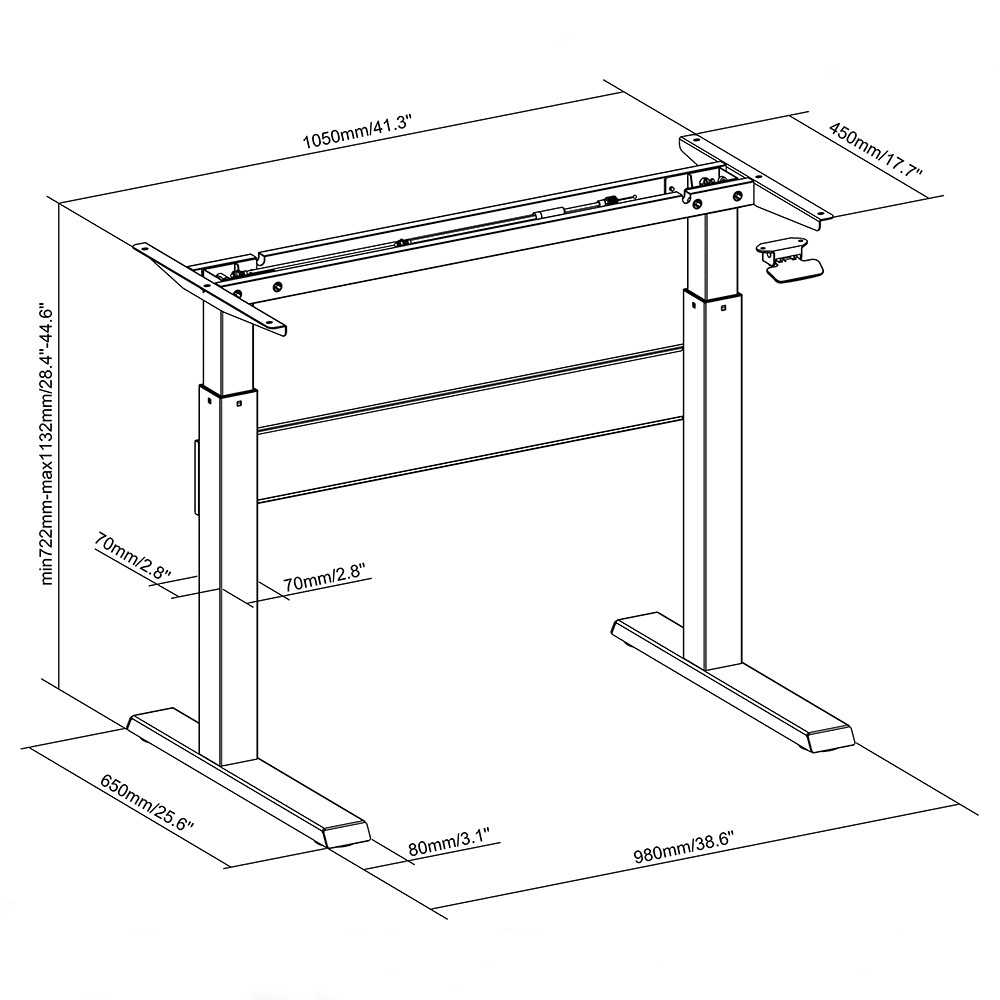

• Dimensional Drawing
