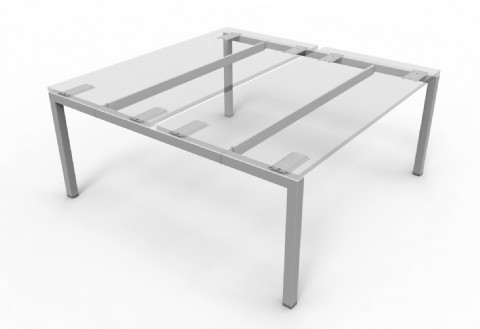

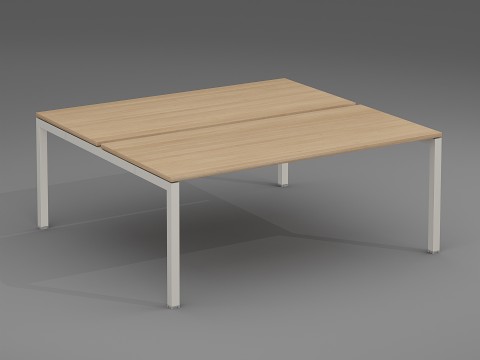

1000mm Wide X3 Bench Desk Frame (2 Person)

Create a durable, space-efficient workstation with the X3 1000mm Wide Back-to-Back Bench Desk Frame. Designed for two users, this modular bench desk system is ideal for commercial offices, educational environments, call centres, coworking spaces and office fit-out projects where flexibility and future expansion are essential.

The X3 system has been engineered around a fully modular platform, allowing you to build anything from a single workstation to large back-to-back bench desk configurations using the same core components. Whether you're fitting out a new office or expanding an existing workspace, the X3 desk range provides a cost-effective solution that grows with your business.

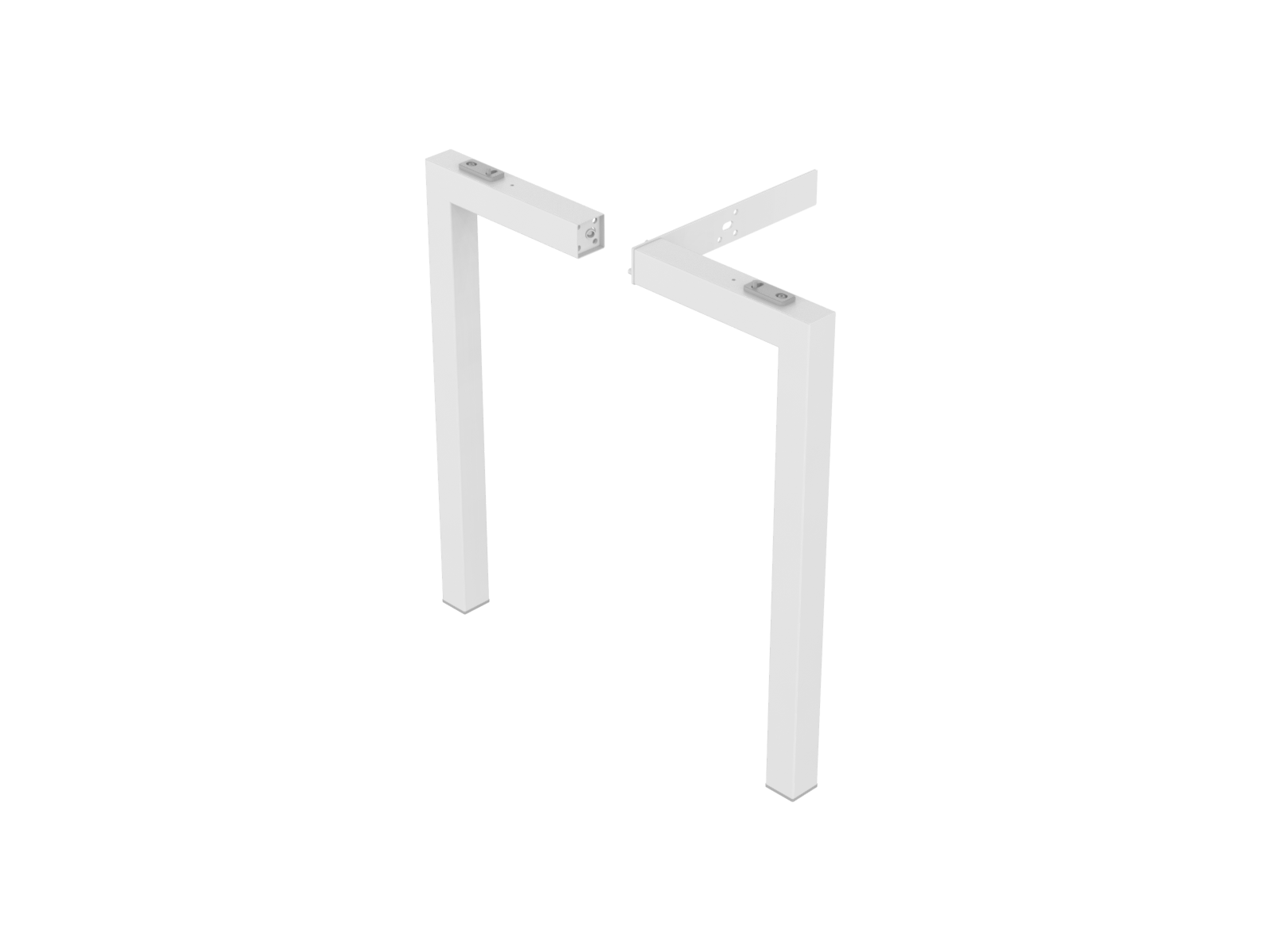

We offer a choice of two legs for the X3 desk frame. The standard leg (695mm) and the EVO leg (722mm). The EVO leg has been redesigned to comply with BS EN 527-1:2011, providing the recommended modern desk height while improving under-desk cable management. The new compact top fixing system eliminates the large mounting plate used on previous generations, creating more usable space beneath the desk for cable trays, power modules and IT infrastructure.

With a strong steel construction, adjustable levelling feet and a choice of finishes, the X3 bench desk frame is built for demanding commercial environments while maintaining a clean, contemporary appearance.

Unlike many desk suppliers, we sell our desk frames and desktop worktops separately. This is particularly beneficial for office furniture manufacturers, contractors and fit-out companies who already source their own tops. If you require a desktop, we can manufacture one specifically for your frame, complete with pre-drilled fixing holes and threaded insert nuts for fast, hassle-free installation. To save even more installation time, we'll also machine any required cut-outs free of charge when purchasing our desk accessories. If you order desk grommets, in-desk power modules or brush cable access flaps, we'll prepare the desktop at the factory before dispatch.

Key Features

• 1000mm wide back-to-back bench desk frame
• Modular design allows future expansion
• Fully commercial-grade steel construction
• EVO leg designed to BS EN 527-1:2011
• Improved compact top fixing for better cable management
• Available as frame only or with made-to-order desktop
• Free machining for cable ports and power modules purchased with your desktop
• Ideal for office fit-outs, furniture manufacturers and commercial projects
• Volume discounts available for trade customers

Technical Specifications

• Width: 1000mm
• Available Depths: 1000mm, 1200mm, 1260mm, 1400mm, 1460mm, 1600mm, or 1660mm
• Frame Height: X3 EVO (722mm) or standard (695mm)
• Beam Length: 834mm
• Beam Colour: Black
• Standard Colours: Silver, White, Black (others available)
• Standards: BS EN 527-1:2011
• Compatible Accessories: Sliding Tops, Cable Management, Desk Grommets, Power Modules, Cable Access Flaps
• Desktop Options: Sold separately (18mm or 25mm MFC available)

Included Components

• 2 × Pairs of terminal legs
• 2 × Extension sections
• 2 × 834mm steel support beams
• All required fixings
• Bolts
• Screws
• Grub screws
• D-Nuts
• Fixing plates
• Assembly Allen key

Required for Assembly (Not supplied)

• Crosshead (Phillips) screwdriver
• Allen key set

Why Choose the X3 System?

Designed for Modern Workspaces

The X3 has been developed specifically for today's commercial workplaces, offering improved ergonomics, easier cable routing and outstanding flexibility.

Future-Proof Modular Design

Need to expand from two users to four, six or more? Simply add compatible X3 components without replacing your existing desks.

Better Cable Management

The updated EVO leg removes bulky mounting brackets beneath the desktop, creating significantly more space for cable trays, power distribution and network infrastructure.

Manufactured Around Your Project

If purchasing a desktop from us, every worktop is machined specifically for your frame. We also cut openings for cable management accessories at no extra cost, helping reduce installation time on site.

Perfect For:

• Office furniture manufacturers
• Commercial office fit-outs
• Schools & universities
• Corporate offices
• Shared workspaces
• Public sector projects
• Facilities management
