80x74mm Plastic Rise and Fall Door Hinge

Our 80 × 74mm plastic rise and fall door hinges are designed to provide a self-closing action for toilet cubicle doors, washroom partitions and other cubicle systems. Also known as gravity hinges, rising hinges, rising and falling hinges or rising butts, these hinges lift the door slightly as it opens, helping provide additional clearance where required.

Available in left-hand and right-hand configurations, these plastic cubicle hinges are suitable for a range of commercial washroom and partitioning applications, including toilet cubicles, changing rooms, restrooms and cloakrooms. The rise and fall action allows the door to return towards the closed position under gravity, making them a practical choice for self-closing cubicle doors.

Key Features

• Plastic rise and fall door hinge for cubicle doors
• Also known as a gravity hinge or rising and falling hinge
• 80 × 74mm hinge size
• Available in left-hand and right-hand configurations
• Rise and fall action lifts the door when opened
• Helps provide additional door clearance
• Provides a self-closing action using gravity
• Suitable for toilet cubicles and washroom partitions
• Ideal for commercial washrooms, changing rooms and restrooms
• Metal and stainless steel alternatives also available
• Individual hinges available when in stock

Technical Information

• Product Type: Plastic rise and fall door hinge
• Alternative Names: Gravity hinge, rising hinge, rising and falling hinge, rising butt, self-closing hinge

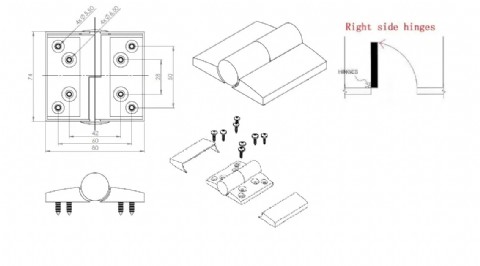

• Dimensions: 80 × 74mm
• Material: Plastic
• Configuration: Left hand or right hand
• Door Action: Rise and fall / gravity-assisted self-closing
• Function: Lifts the door slightly when opening to provide additional clearance
• Application: Toilet cubicle doors, washroom partitions and cubicle systems
• Typical Applications: Toilet cubicles, commercial washrooms, WCs, restrooms, cloakrooms, changing rooms and other partitioned cubicle environments.

We also stock metal and stainless steel rise and fall hinges, along with a range of matching toilet cubicle locks, handles, hooks, brackets and legs. Hinges can be purchased individually when available from stock, or you can choose our 20-piece toilet cubicle fittings kit for a complete hardware solution for 18mm panels.
