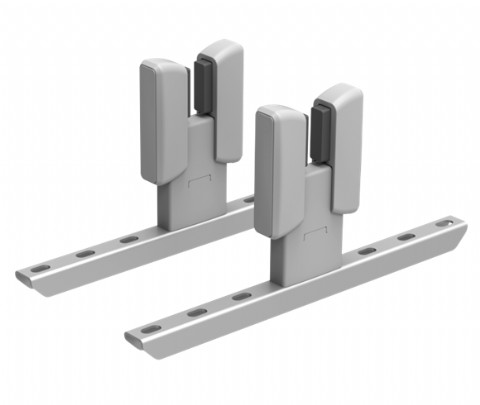

Pair of Desk Screen Clamps, Intermediate

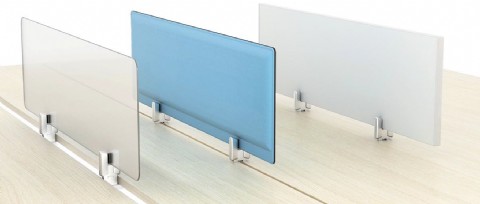

These intermediate brackets bring the features of the single desk version to bench desks. The intermediate version can be fixed in the gap between the desk tops of benches (min 45 - max 80mm) allowing a wide space for cables to run through.

The central part of the bracket is made up of 2 sections, the lower section can be removed to put these directly upon the tops leaving the space for the fixation screw. Or it can even be fitted with no gap, just using a through bolt to fix it in place.

Primarily designed for glass, this product can also be used for clamping wood, PMMA, Acrylic or fabric screens.

Key Dimensional Info

Top Thickness - Up to 30mm
Panel Thickness - 4 to 30mm
Gap Between Tops when used in between: 45 - 80mm
Gap Between top whens used on top: 6 - 25mm
Total length of fixing plate - 248mm

The brackets and caps (or inserts) will generally comes the same colour, but we do have the option of Chrome Inserts to be used with Silver, White or Black brackets, should you wish. We show standard colours & finishes where possible but these are constantly changing so if you require a colour not listed in the drop-down, speak to us as we may well have added it since.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

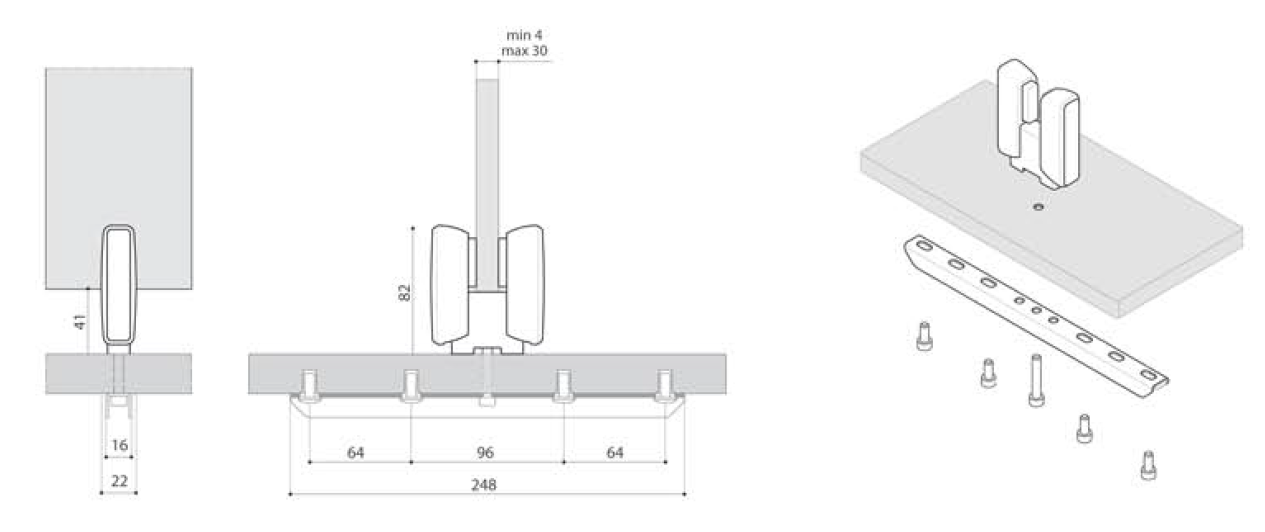

• Technical Drawing 1

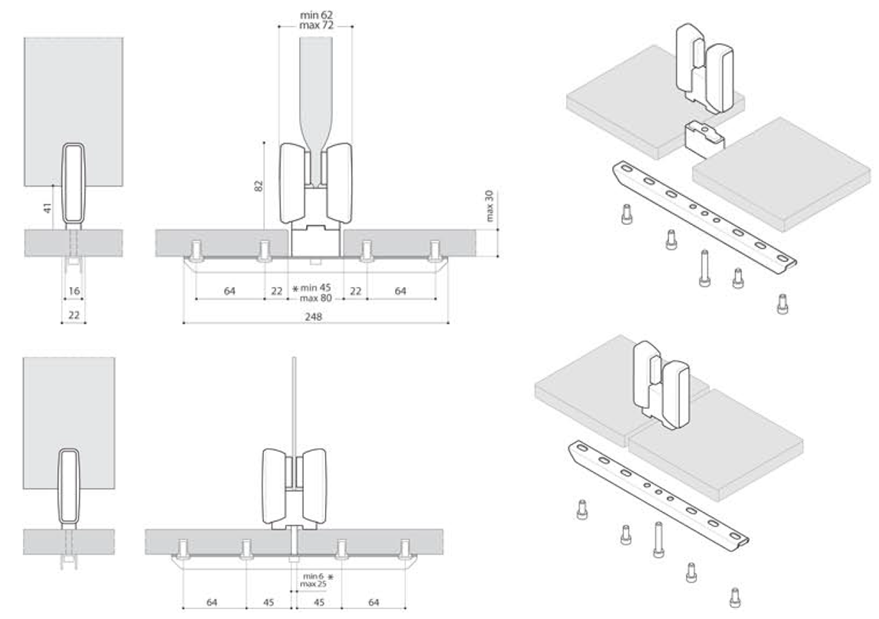

• Technical Drawing 2
