Intermediate Acrylic or Perspex Desk Screen Brackets

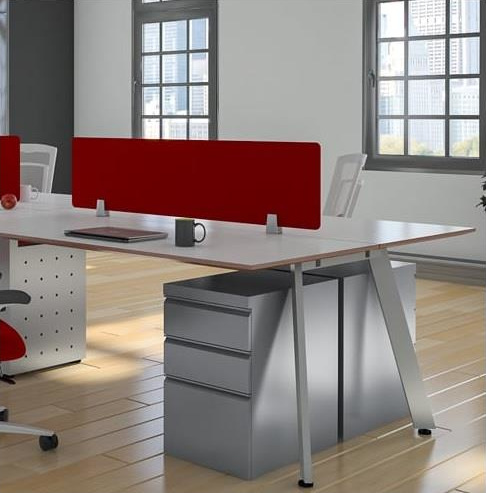

These Intermediate Desk Screen Brackets are generally used between 2 desktops on back to back bench desks or between counter tops and provide a strong, reliable and non-invasive way to mount privacy screens, desk dividers and modesty panels to desks, tables and counter tops.  They'll accommodate 4-8mm thick material with the supplied screws and have a clamping jaw width of 10 to 25mm.

Sold individually, they are designed to securely hold acrylic, perspex, glass and thinner fabric screens without requiring holes to be drilled into the top of your desk or counter top.  If you want to ensure compatability, we also sell the complete screens with brackets supplied and you can also purchase the acrylic / perspex panels on their own if needed.

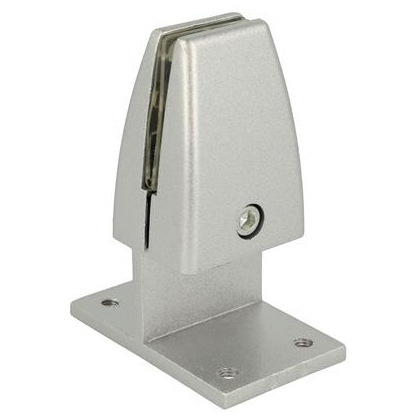

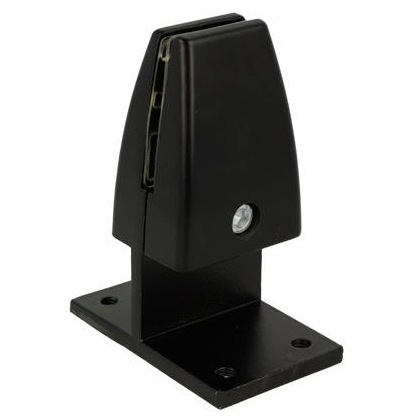

Manufactured from lightweight, sturdy aluminium with a durable powder-coated finish, these edge-mount brackets provide a clean and professional fixing solution for modern offices, schools, reception areas, healthcare areas, home workspaces and other commercial environments.

Installation is quick and straightforward. Simply slide the brackets over the edge of the desktop, screw fix from the underside and insert the screen before tightening the screen clamp bolts with an allen key. This makes the brackets suitable for office fit-outs, workstation changes and installations where you need to avoid permanently modifying the desk.

Each bracket includes the required screws, adjustment bolts and Allen key. The supplied M6 screws provide flexibility when securing screens between 4mm and 8mm thick, while alternative screws can be substituted where required for a specific installation.

Technical Specifications

• Mounting type: Double-sided intermediate clamp
• Application: Between adjoining bench desk tops
• Maximum desk top thickness: 25mm
• Gap between desk tops: 5mm
• Screen thickness with supplied M6x15mm screw: 4–8mm
• Screen thickness with substituted M6x25mm screw: Approximately 8–15mm
• Material: Aluminium
• Finish: Powder coated
• Included: 1 x M6x15mm bolt, 3 x M6x25mm bolts and 4 x plastic bolt caps
• Fixing: Suitable for D-nuts or wood screws depending on the desk construction

Screen Fixing Options

The supplied M6x15mm screw is suitable for screens between 4mm and 8mm thick. For thicker screens, you can substitute the supplied screw for a longer M6 fixing. An M6x25mm screw can be used for screens approximately 8mm to 15mm thick.

This makes the bracket suitable for a range of acrylic, Perspex and other desk screen materials, provided the screen thickness and overall installation are suitable for the fixing method.

Custom Colours

We list the most popular colours as standard, but custom finishes may be available on request. Custom units are subject to minimum order quantities and may have extended lead times. Please contact our sales team to discuss your requirements.

   Why not submit your own review?

Submitted by A Pollick Frank Donoghue (15/01/2025)
As described

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score	4.8 / 5

There are currently no FAQs for this product. Do you have a question? Submit FAQ

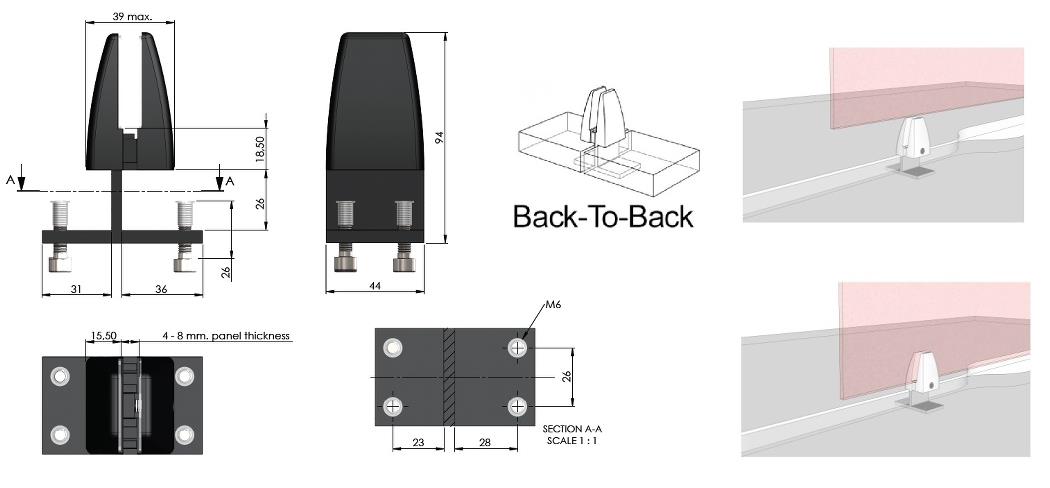

• Dimensional Drawing
