M8x20mm Fuerte Screw-In Bushing

Screw-In Bushing M8 X 20mm, Steel, BZP, Hex 8MM but you could also use a standard D-Nut if that works with your particular assembly. "FUERTE" is a heavy duty connector particularly suitable for strong and secure and assembly of beds, table frames, panels and cabinets.

The system is available for 90° and 180° connections with drilling distances 35, 45 and 55 mm. For an idea of how the system works, you'll find a series of technical drawings within the tabs below and also a video demonstration.

The 180° connection is ideal for partition walls, kitchen table tops etc. By use of a "Female" dowel combined with a standard "Male" dowel or 2 female dowels connected with a threaded bolt of any length, a 180° connection is possible.

We show standard colours & finishes where possible but these are constantly changing so if you require a colour not listed in the drop-down, speak to us as we may well have added it since.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

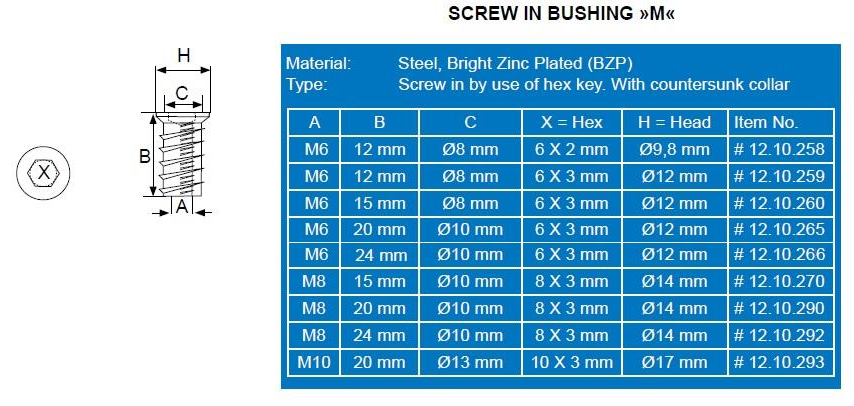

• Technical Drawing
• 90 Degree Assembly
• 180 Degree Assembly
• Assembly Examples
