Table Leg Connector Set | Angle Adjustment

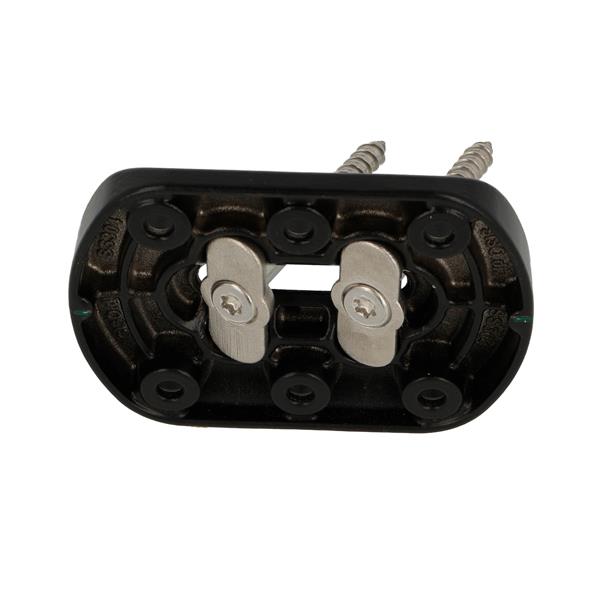

This self-adjusting table leg connector uses adjustable nuts that allow for a Wooden leg to be angled from 0 – 25 degrees. Subsequently, this table leg connector is ideal for use with any kind of furniture with slanted timber legs such as (but not limited to) desks, coffee tables, cabinets and stools.

Manufactured from stainless steel, each table leg connector is fixed to the leg using 2 specially designed wood screws, providing a strong and secure connection.

Technical details:

• Connector Size: 80 x 110 x 15 mm (W/L/H)
• Connector Screw holes: Ø 6.5 mm
• Connector Material: stainless steel
• Adjustable nuts: stainless steel
• Wood Screw Size: Ø 7 x 80 mm, Torx 30
• Each set contains: 4 x Connectors | 8 x wood screws

5 simple fixing steps:

1. Drill two holes straight into the leg (Recommended hole size Ø7 x 70 mm)
2. Cut the top of the leg into the desired angle
3. Fix the bracket to the leg with the 2 special wood screws
4. The nuts adjust themselves to the angle of the leg
5. Fix the bracket to your furniture

*For full fitting instructions and technical details, please see the ‘Technical Data’ tab.

 We show standard finishes where possible. However, custom colours & finishes may be available on request, subject to MOQ’s and extended lead times. Contact us for more information.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

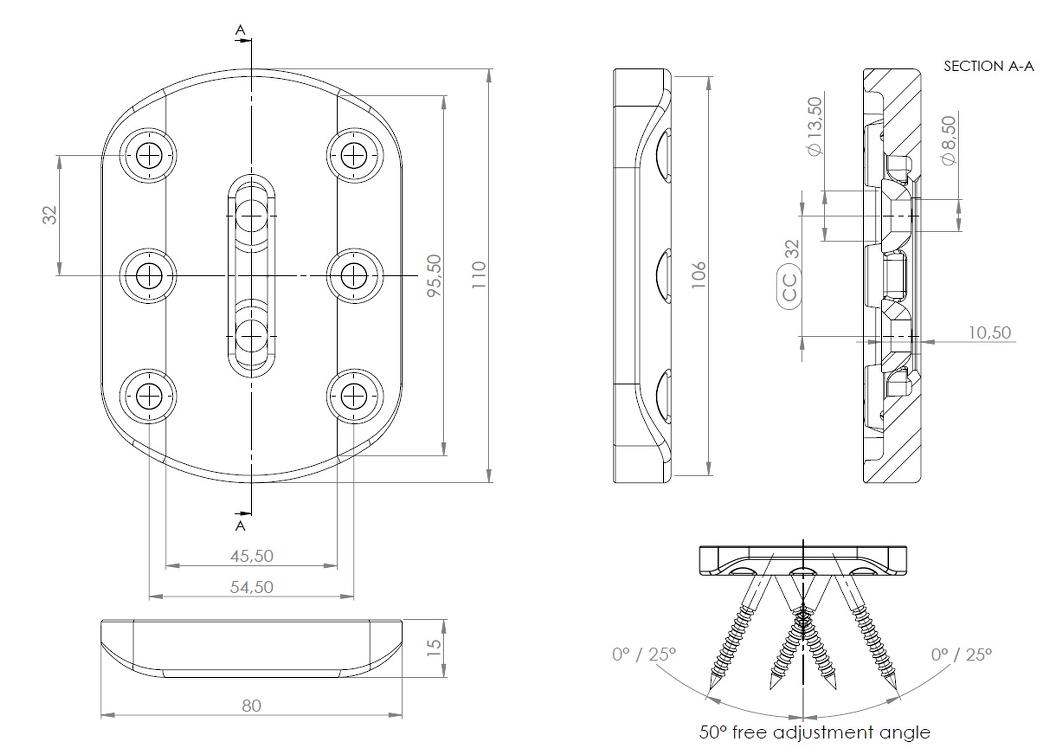

• Connector Dimensions

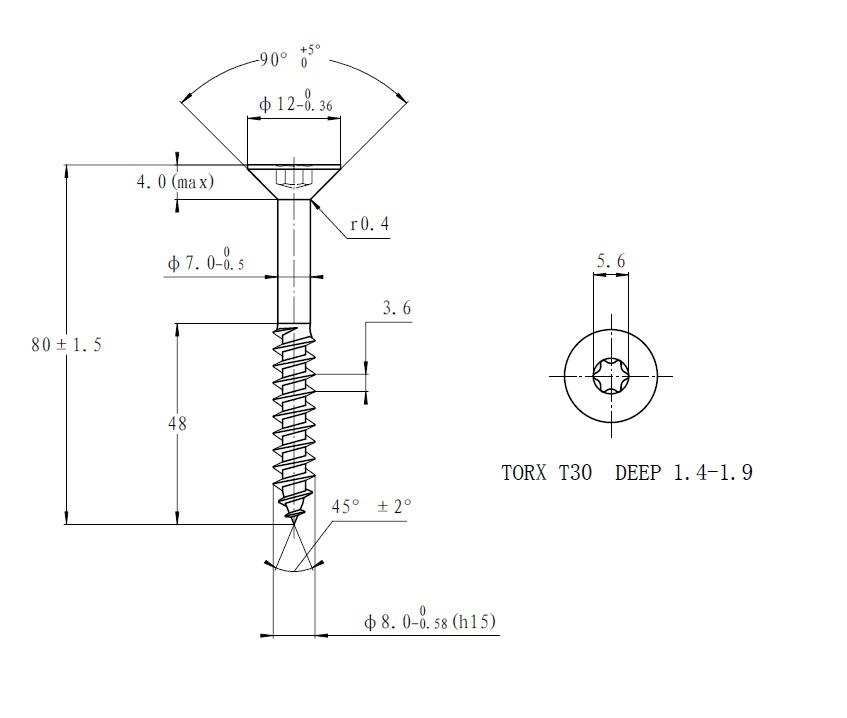

• Wood Screw Dimensions
• Fitting Instructions
