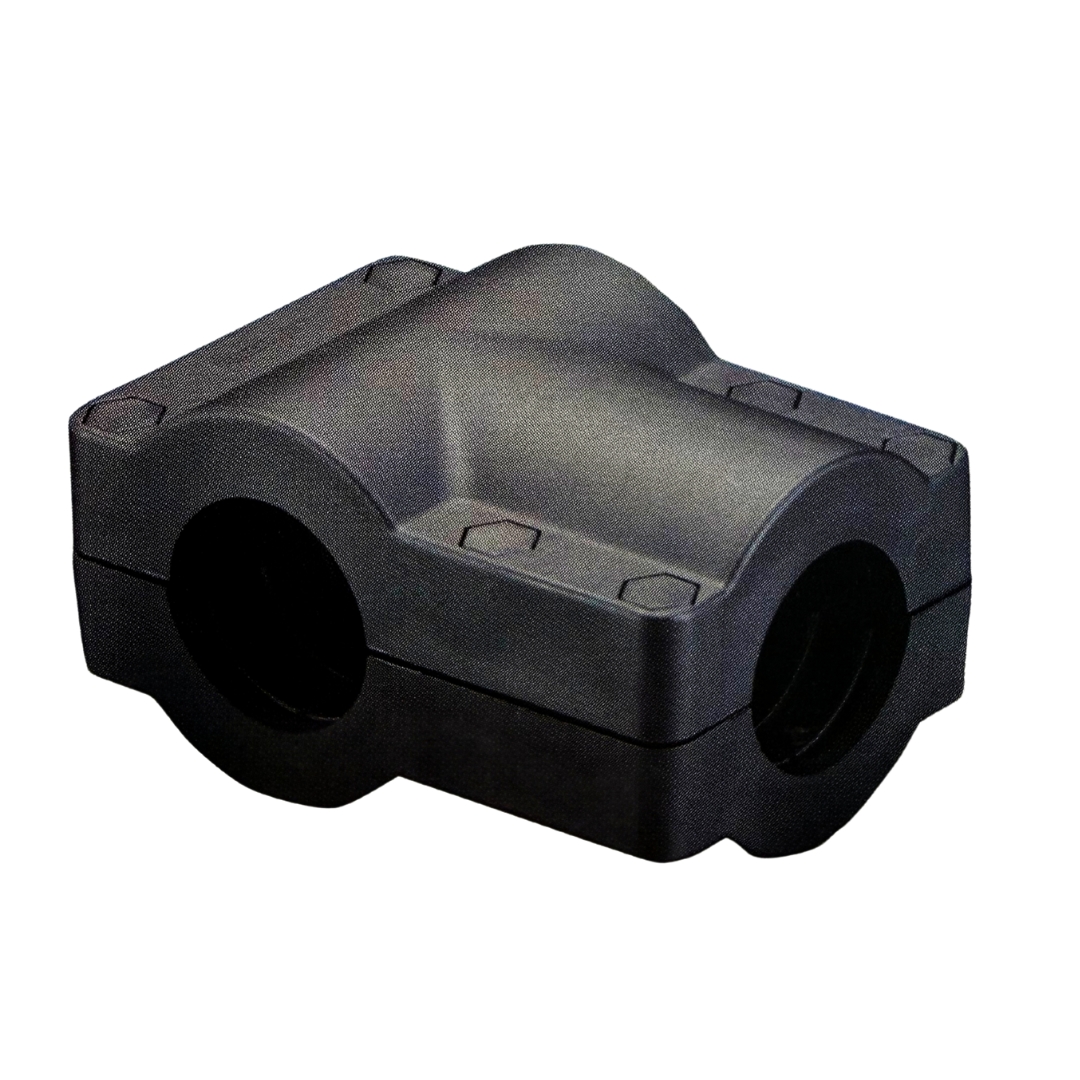

48.3mm Round Tube Connector

The 48.3mm Round Tube Connector is designed to securely join two 48.3mm diameter round tubes at a perpendicular angle, providing a strong and stable connection for structural tube assemblies.

Manufactured from black reinforced nylon (polyamide), it delivers an excellent strength-to-weight ratio while remaining lightweight, corrosion-resistant, and low maintenance. Supplied with fixing screws and cover caps, all fasteners are concealed after installation to create a smooth outer surface that reduces dirt build-up and provides a clean, professional finish. Ideal for industrial frames, conveyor supports, modular structures, and architectural applications where durability and appearance are equally important.

Technical Specifications

• Product Type: Round Tube Connector
• Tube Size: 48.3mm diameter (joins two tubes)
• Tube Diameter: Ø48.3mm
• Connection Angle: Perpendicular
• Material: Reinforced nylon (polyamide)
• Colour: Black
• Fixing Method: Supplied fixing screws
• Cover Caps: Included
• Finish: Concealed fasteners for a smooth, clean surface
• Properties: Lightweight, corrosion-resistant, high mechanical strength, low maintenance
• Applications: Conveyor frames, industrial structures, modular systems, architectural assemblies
• Environment: Indoor and outdoor industrial environments

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

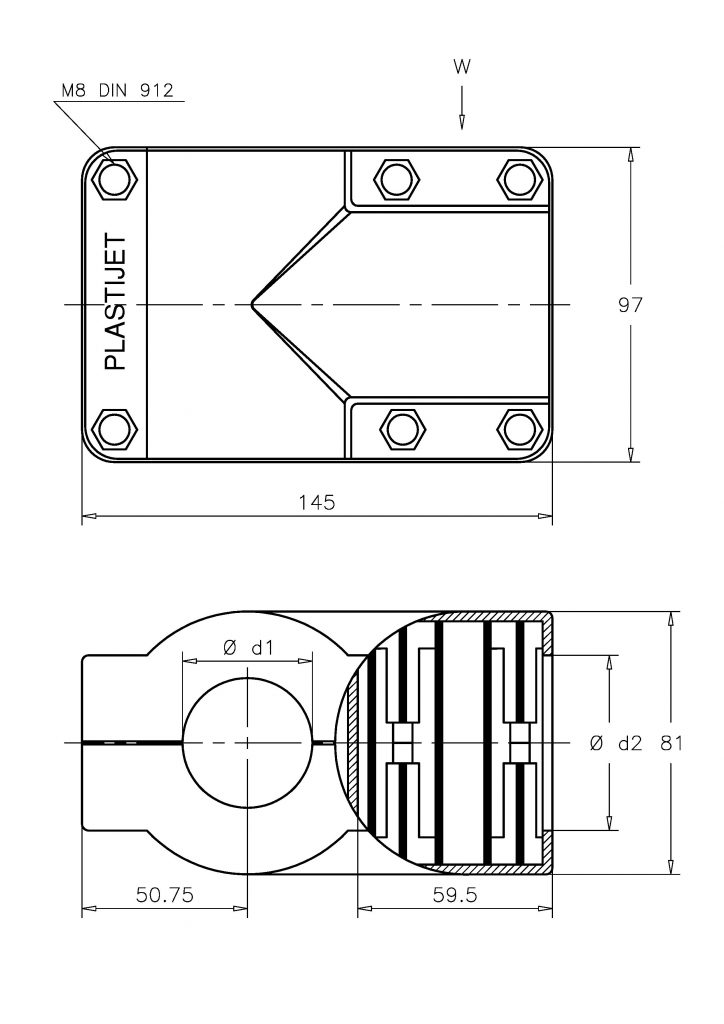

• Technical Drawing
