X-TREME Table Leg Mounts | Adjustable

The X-TREME table leg mount is an innovative table leg connector with an internal tightening system; enabling users to adjust/rotate and tighten each table leg in any position.

The body of this table leg mounting plate is routered into the underside of the worktop where the leg is to be fitted; the fixing plate is then screw fixed to the worktop to hold the mechanism in place. The fixing plate can either be surface fit (with a 3mm protrusion) or can also be routered into the surface for a flush fit.

You can then screw any shape of leg with an M10 thread to the bracket and adjust/rotate into any position, before tightening the set screw. The internal wedge system subsequently pulls and holds the leg into place.

As a result, the X-TREME table leg mount is perfect for knock-down furniture such as (but not limited to) desks, tables, coffee tables, cabinets, and stools.

Technical Details:

• Size: 100 x 100mm
• Screw holes: Ø5.5mm
• Ideal for any shape of leg with an M10 thread
• Materials: Stainless steel & aluminium
• For panel thickness (min): 25 mm
• Gives you the possibility to tighten and adjust your leg in any position
• Pulls and holds the leg into place
• Perfect for heavy duty knock-down furniture
• Made for flush or elevated installation
• Tested & certified
• *Screws and bolts to be bought separately

We list all sizes and finishes available as standard for the X-TREME table leg mounts. However, if you require an alternative that is not listed, get in touch with our sales team today as alternatives may be available on request, subject to minimum order quantities and extended lead times.

  There are currently no reviews for this product. Why not submit a review?

There are currently no FAQs for this product. Do you have a question? Submit FAQ

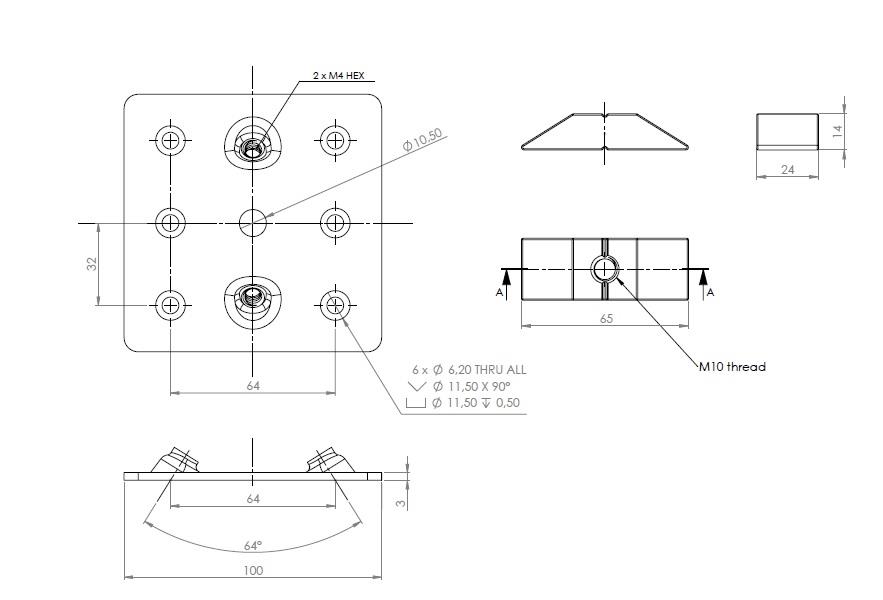

• Dimensional Drawing
